Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11661564 Door, Refrigerator Left Hand (black)   (Replaces: W11622648) Special Order $ 1,022.73

2 13107887BQ Door, Refrigerator Right Hand (black)   (Replaces: 13107887B) Special Order $ 1,102.82

3 W10918170 Latch, Door Closer Left Hand (black)   (Replaces: W10725268) Special Order $ 16.80

4 W10918171 Latch, Door Closer Right Hand (black)   (Replaces: W10725267) Special Order $ 16.77

5 W11749491 Bucket, Medium   (Replaces: W11697423) Special Order $ 52.86

6 WP12722803B Mullion, Door (black)   (Replaces: 12722803BN) In-Stock Immediately $ 206.80

7 W11311945 Screw   (Replaces: 12990204) Special Order $ 14.02

8 W10830162 Gasket, Door (grey) In-Stock Immediately $ 212.57

9 W11123097 Handle, Door (black)   (Replaces: W11101974) Special Order $ 181.37

10 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.00

11 W11708403 Stop, Door (black)   (Replaces: 12968202B) In-Stock Immediately $ 14.05

12 W11223753 Badge   (Replaces: W10884773) In-Stock Immediately $ 83.10

13 W11449276 Screw   (Replaces: W11328753) In-Stock Immediately $ 15.45

14 W11749492 Bucket, Gallon   (Replaces: W11698393) In-Stock Immediately $ 62.86

15 WP67003639 Closure, Door (black)   (Replaces: 12028505B) Special Order $ 86.02

16 12996601 Clip, Bushing Special Order $ 10.05

17 WP67006908 Screw   (Replaces: 12990518) In-Stock Immediately $ 7.95

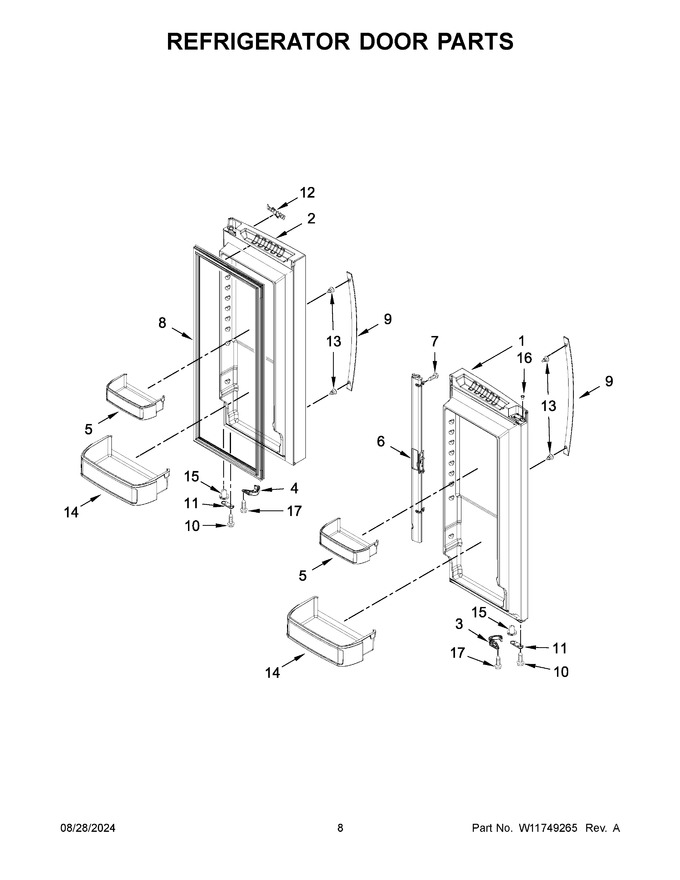

    View Diagram in Separate Window     Print Icon   Print Part List
