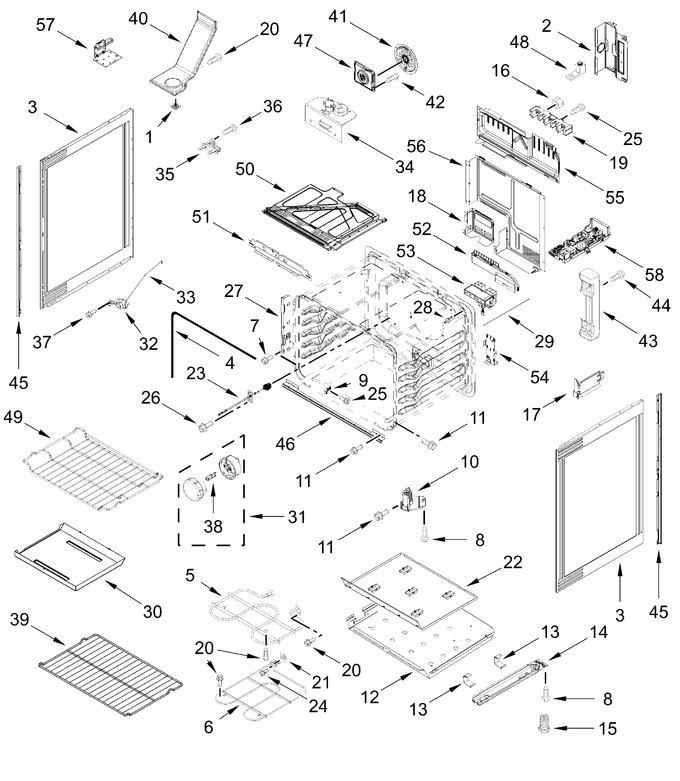

Chassis Parts


Door Parts


Drawer Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
50	W11747784		Ventilation Assembly, Duct And Frame   (Replaces: W11617265)		Appelez-nous	-
51	W11747596		Console, Front   (Replaces: W11615875)		Appelez-nous	-
52	W11747597		Rear, Duct Assembly   (Replaces: W11637749)		Appelez-nous	-
53	W11747639		Dual, Blower   (Replaces: W11616407)				$ 331.58
54	W11729919		Bracket, Acu   (Replaces: W11365827)				$ 77.10
55	W11747640		Convection, Rear Cover   (Replaces: W11361778)				$ 69.75
56	W11747641		Side, Cover   (Replaces: W11633166)		Appelez-nous	-
57	W11727012		Bracket, Cooktop Console   (Replaces: W11287215)		Appelez-nous	-
58	W11747380		Electronic, Control   (Replaces: W11734473)				$ 443.80
	4820F01559		Insulation, Strap		Appelez-nous	-
	W11729932		Insulation, Flue   (Replaces: W11404469)				$ 32.77
	W11729936		Insulation, Back   (Replaces: W11407378)				$ 123.47
	W11161831		Insulation, Wrap   (Replaces: W10774939)			Immediately	$ 116.41
	W10646923		Card, Insulator				$ 19.57
	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
