SELECT A DIAGRAM

01 - Cover Sheet

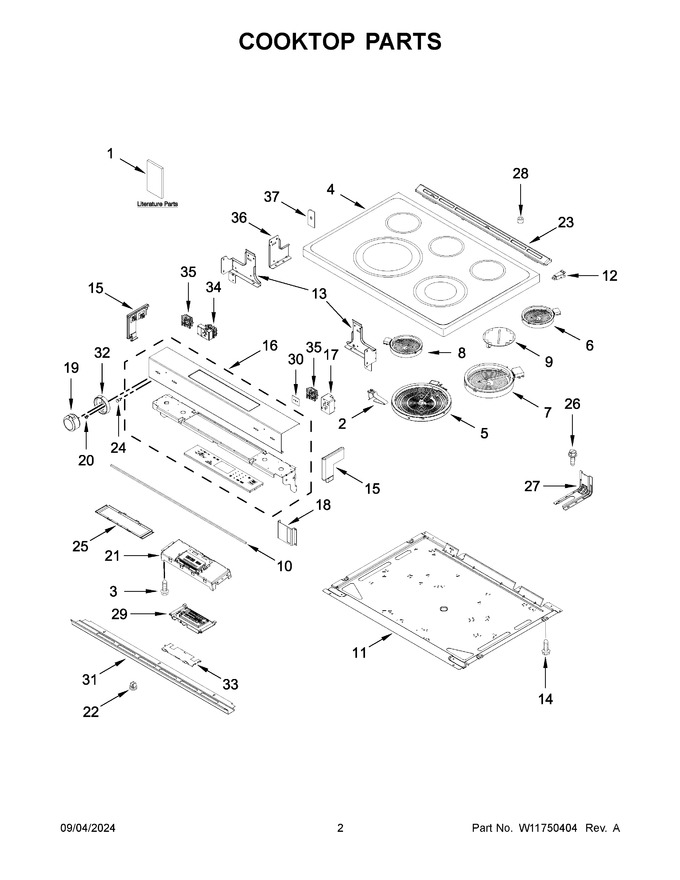

02 - Cooktop Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11509603		Owners Manual		Appelez-nous	-
2	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 14.84
3	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
4	W10814035		Cooktop (white)   (Replaces: W10536294)				$ 582.45
5	W11563195		Element (3000w) (left Front)   (Replaces: W11318371)			Immediately	$ 222.58
6	W11171119		Element (1200w) (right Rear)   (Replaces: 8273994)			Immediately	$ 182.23
7	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 223.66
8	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 145.32
9	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 132.95
10	W10802441		Gasket, Console And Cooktop   (Replaces: W10612719)			Immediately	$ 22.73
11	W10536275		Pan, Radiant				$ 181.61
12	W10162253		Brace, Corner (left)				$ 74.13
13	W10289170		Support, Cooktop (left)				$ 30.05
14	W11244557		Screw   (Replaces: 3196173)				$ 14.29
15	W10555935		Endcap (white (left))				$ 71.93
16	W11084200		Console (white)   (Replaces: W10901122)			Immediately	$ 1,066.31
17	W10911303		Switch, Infinite (right Rear)   (Replaces: W10578768)			Immediately	$ 104.64
18	W11355689		Keypad Shield				$ 22.64
19	W10877180		Knob (stainless (right Rear))   (Replaces: W10823543)			Immediately	$ 72.20
20	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
21	W11084243		Control, Mrc2   (Replaces: W10759277)			Immediately	$ 228.10
22	W11025100		Grommet   (Replaces: W10645947)			Immediately	$ 13.16
23	W10636527		Vent, Trim Top (white)				$ 251.33
24	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
25	W10555923		Bracket, User Interface				$ 107.43
26	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
27	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 23.03
28	W11690600		Bumper   (Replaces: W10854253)			Immediately	$ 14.91
29	W11128223		Assembly, Display   (Replaces: W10759323)			Immediately	$ 501.38
30	7201P07760		Gasket, Infinite Switch		Appelez-nous	-
31	W10555933		Console, Lower Panel (white)				$ 210.06
32	W10813558		Bezel (stainless)   (Replaces: W10663809)			Immediately	$ 76.88
33	W10558372		Bracket, Control				$ 25.10
34	W11129442		Switch, Infinite (right Front)   (Replaces: W10437097)			Immediately	$ 100.57
35	W10917724		Switch, Infinite (right Front And Left Rear)   (Replaces: W10437094)			Immediately	$ 129.35
36	W10598048		Bracket, Console (center)				$ 25.73
37	W10882900		Gasket				$ 23.34
12A	W10162252		Brace, Corner (right)				$ 78.59
13A	W10289169		Support, Cooktop (right)				$ 30.05
15A	W10555938		Endcap (white (right))				$ 74.32
19A	W11628652		Knob (stainless (left Rear))   (Replaces: W10823541)				$ 74.80
19B	W11568640		Knob (stainless (right Front))   (Replaces: W10823538)			Immediately	$ 68.38
19C	W10877188		Knob (stainless (left Front))   (Replaces: W10823536)			Immediately	$ 69.96
1A	W11326876		Tech Sheet		Appelez-nous	-
1B	W11435572		Quick Start Guide		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 53.35
NI	W11226772		Harness, Display   (Replaces: W11172426)			Immediately	$ 236.93
NI	W11226773		Harness, Console   (Replaces: W11172417)				$ 211.70
NI	W11226775		Harness, Bake Drawer   (Replaces: W11172530)				$ 238.60
NI	W11226786		Harness, Cooktop   (Replaces: W11134658)			Immediately	$ 241.75
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	W11454504		Harness, Main			Immediately	$ 248.20
NI	W10664316		Clip, Harness (cooktop)				$ 20.97

    View Diagram in Separate Window       Print Part List
