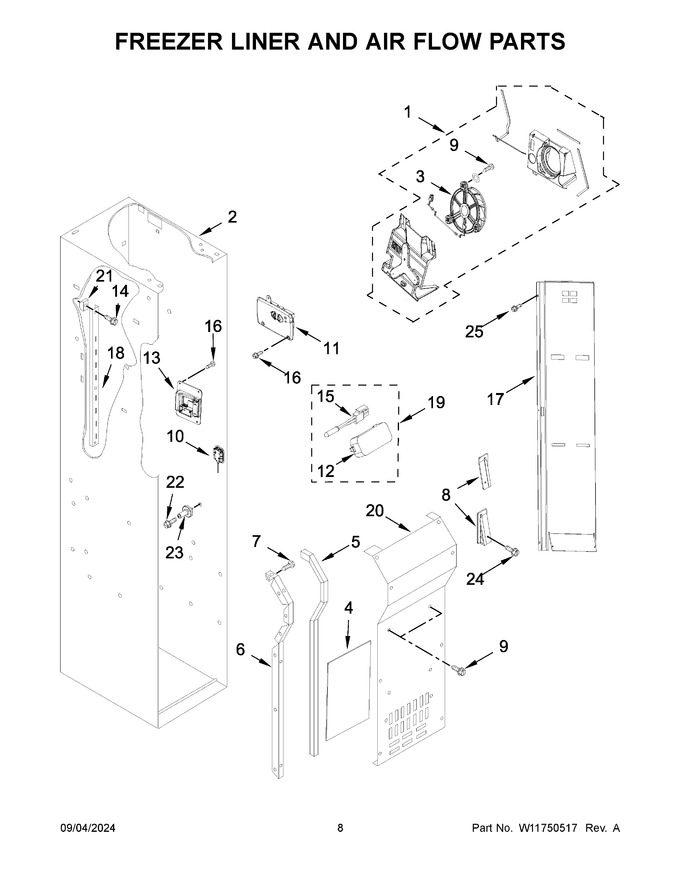

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11631626		Assembly, Evaporator Fan   (Replaces: W11437867)			Immediately	$ 275.87
2	ARIAC1E7B561513C5BE406C5B6330205809		Liner (not Serviced)		Appelez-nous	-
3	W11618271		Fan, Evaporator   (Replaces: W11544700)			Immediately	$ 232.03
4	W11791407		Gasket, Fc Evaporator Bypass   (Replaces: W11678120)		Appelez-nous	-
5	W11467833		Gasket, Evaporator Cover		Appelez-nous	-
6	W11756941		Rail, Evaporator Cover (left Hand)   (Replaces: W11695307)		Appelez-nous	-
7	W11624204		Screw   (Replaces: 486194)				$ 14.72
8	W11447235		Wedge, Air Duct (left Hand)		Appelez-nous	-
9	WP488729		Screw (stainless)   (Replaces: 487539)			Immediately	$ 8.28
10	W11484836		Assembly, Led Module   (Replaces: W11229041)			Immediately	$ 27.01
11	W11737648		Assembly, Receiver Control   (Replaces: W11667268)				$ 301.16
12	W10609678		Cover, Thermistor				$ 39.19
13	W11748346		Assembly, Emiiter Control   (Replaces: W11667267)				$ 303.69
14	W10808291		Screw		Appelez-nous	-
15	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
16	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
17	W11410845		Duct, Air		Appelez-nous	-
18	W11625043		Ladder, Shelf   (Replaces: W11481390)		Appelez-nous	-
19	W11625042		Assembly, Thermistor   (Replaces: W11550866)			Immediately	$ 66.74
20	W11444470		Cover, Evaporator		Appelez-nous	-
21	520965		Support, Ladder				$ 31.35
22	W10191952		Screw				$ 5.65
23	W11627395		Assembly, Shelf Stud   (Replaces: W11445126)		Appelez-nous	-
24	WP98008545		Screw (black)   (Replaces: W10308487)				$ 18.60
25	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
6A	W11756942		Rail, Evaporator Cover (right Hand)   (Replaces: W11695308)		Appelez-nous	-
8A	W11447234		Wedge, Air Duct (right Hand)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
