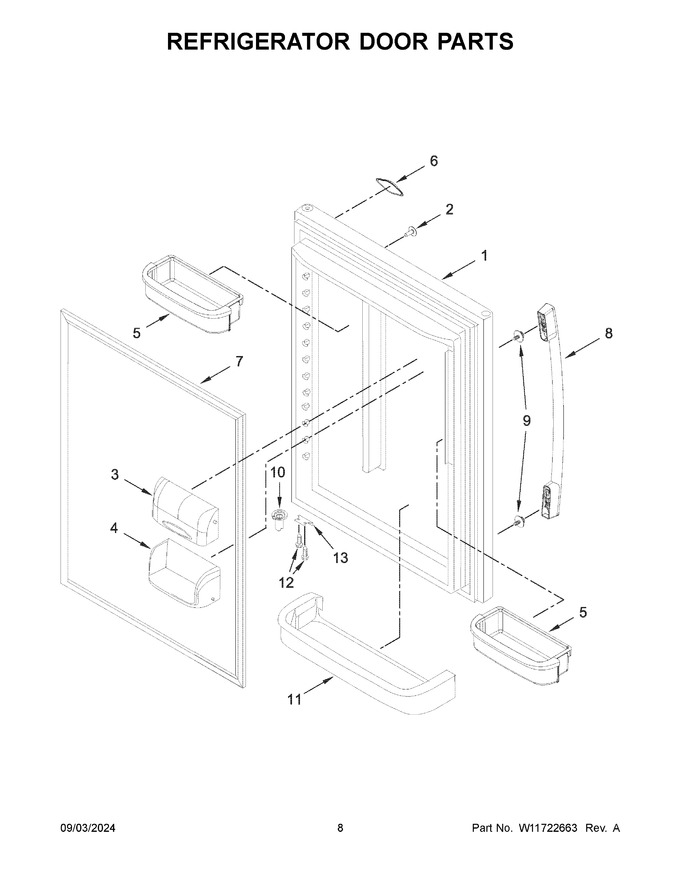

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109401BQ | Door, Refrigerator (black) (Replaces: 13109401B) |
|
$ 1,073.65 | |||||
| 2 | WP12246608 | Plug, Button (black) (Replaces: 12246608) |
|
Immediately | $ 8.15 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WP67001021 | Bucket, Medium (Replaces: 12557204) |
|
$ 84.95 | |||||
| 6 | Y12528501 | Nameplate (stainless) (Replaces: 12528501) |
|
Immediately | $ 62.74 | ||||
| 7 | W10443314 | Gasket, Door (grey) |
|
Immediately | $ 349.07 | ||||
| 8 | W11351146 | Handle, Door (black) (Replaces: W11188847) |
|
$ 189.08 | |||||
| 9 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 10 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 11 | 67001019 | Retainer, Door (Replaces: 12557905) |
|
Immediately | $ 112.90 | ||||
| 12 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 13 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 |
