| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W11623097 |
|
Box Assembly, Inverter (Replaces: W11411269) |
|
|
Immediately |
$ 337.94 |
|
|
| 2 |
W11661574 |
|
Screw (Replaces: 489473) |
|
|
|
$ 14.29 |
|
|
| 3 |
W11557671 |
|
Compressor (Replaces: W11332037) |
|
|
Immediately |
$ 728.13 |
|
|
| 4 |
W10550831 |
|
Housing, Control Board Mounting |
|
Appelez-nous
|
- |
|
|
|
| 5 |
W11752963 |
|
Control, Electronic (Replaces: W11444684) |
|
|
Immediately |
$ 300.81 |
|
|
| 6 |
W11661108 |
|
Mounting Grommet, Compressor (Replaces: 2183042) |
|
|
|
$ 15.21 |
|
|
| 7 |
W11756945 |
|
Support, Condenser (left Hand) (Replaces: W11695311) |
|
Appelez-nous
|
- |
|
|
|
| 8 |
W11756946 |
|
Support, Condenser (right Hand) (Replaces: W11695312) |
|
Appelez-nous
|
- |
|
|
|
| 9 |
W11247667 |
|
Cover Assembly, Compressor (Replaces: W11235263) |
|
|
|
$ 115.24 |
|
|
| 10 |
WP9741232 |
 |
Screw (Replaces: 9741232) |
|
|
Immediately |
$ 5.07 |
|
|
| 11 |
W11623130 |
|
Housing, Control Board (Replaces: W11435369) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
WP965173 |
|
Screw (Replaces: 487415) |
|
|
Immediately |
$ 11.87 |
|
|
| 13 |
2256328 |
|
Bracket, Inverter Mounting |
|
Appelez-nous
|
- |
|
|
|
| 14 |
2310195 |
|
Wire Assembly, Jumper (power Switch To Power Cord) |
|
|
|
$ 123.20 |
|
|
| 15 |
WP489069 |
 |
Screw (Replaces: 1157158) |
|
|
Immediately |
$ 8.40 |
|
|
| 16 |
W11693236 |
|
Condenser (Replaces: W11601407) |
|
|
|
$ 165.30 |
|
|
| 17 |
W11627456 |
|
Sensor, Relative Humidity (Replaces: W11482040) |
|
|
|
$ 92.93 |
|
|
| 18 |
W10068580 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 19 |
2310196 |
 |
Cord, Power |
|
|
Immediately |
$ 88.52 |
|
|
| 20 |
WPW10339879 |
 |
Tie, Wire (Replaces: 2263990) |
|
|
|
$ 8.30 |
|
|
| 21 |
W11109499 |
 |
Drier (service Drier Without Dye) (Replaces: W10805035) |
|
|
Immediately |
$ 39.12 |
|
|
| 22 |
W11756954 |
|
Bracket, Condenser Bottom (Replaces: W11695784) |
|
Appelez-nous
|
- |
|
|
|
| 23 |
W11623099 |
|
Fan Assembly, Condenser (Replaces: W11464545) |
|
|
|
$ 146.65 |
|
|
| 24 |
W11435371 |
|
Bracket, Control Assembly |
|
Appelez-nous
|
- |
|
|
|
| 25 |
W11234470 |
|
Clamp, Power Cord (Replaces: W11242280) |
|
|
|
$ 22.12 |
|
|
| 26 |
W11735284 |
|
Tube, Drier Transition (Replaces: W11602250) |
|
|
Immediately |
$ 59.94 |
|
|
| 27 |
W10852725 |
 |
Grommet, Condenser (Replaces: 2319835) |
|
|
|
$ 8.09 |
|
|
| 28 |
W11421662 |
|
Harness, Unit Wire |
|
|
|
$ 210.50 |
|
|
| 29 |
W10587113 |
|
Mounting Grommet, Condenser |
|
Appelez-nous
|
- |
|
|
|
| 30 |
W11623128 |
|
Switch, Power Disconnect (Replaces: W11311927) |
|
|
|
$ 125.83 |
|
|
| 31 |
W11482820 |
|
Tube, Process |
|
|
Immediately |
$ 36.53 |
|
|
| 32 |
W11624204 |
|
Screw (Replaces: 486194) |
|
|
|
$ 14.72 |
|
|
| 33 |
W11756951 |
|
Cover, Condenser Support (Replaces: W11695783) |
|
Appelez-nous
|
- |
|
|
|
| 34 |
W11777981 |
|
Tube, Heat Loop Transition (Replaces: W11602251) |
|
Appelez-nous
|
- |
|
|
|
|
W11504432 |
 |
6/5 Nr Ms 00 |
|
|
Immediately |
$ 25.88 |
|
|
|
ARI365422773BD6741F2B56A197441A318E |
|
(heat Loop To Drier) |
|
Appelez-nous
|
- |
|
|
|
|
ARIA203FEA88A0C0545C484B4E1C20B771B |
|
Refrigerant Charge |
|
Appelez-nous
|
- |
|
|
|
|
ARI500F2B538D318C1E3390E0716ECE69B7 |
|
(also Order The Following Lokring⢠Parts) |
|
Appelez-nous
|
- |
|
|
|
|
ARIDC3909E200058FAFA59ECDE3D8CD23DE |
|
(suction Line To Condenser) |
|
Appelez-nous
|
- |
|
|
|
|
ARI62645302E9619E4799069F4700CA6638 |
|
61 Grams (r600a) |
|
Appelez-nous
|
- |
|
|
|
|
ARI5DD2AEE280966FBC792DC043E4E4B750 |
|
(capillary Tube To Drier) |
|
Appelez-nous
|
- |
|
|
|
|
W11504416 |
 |
8.5/6 Nr Ms 00 |
|
|
Immediately |
$ 27.51 |
|
|
|
W11504415 |
 |
8.5/8 Nr Ms 00 |
|
|
Immediately |
$ 25.89 |
|
|
|
W11504431 |
 |
7/5 Nr Ms 00 |
|
|
Immediately |
$ 27.13 |
|
|
|
W11504445 |
 |
5/4 Nr Ms 00 |
|
|
Immediately |
$ 28.92 |
|
|
|
ARI3031A698A6B8030D731C976AE04824C1 |
|
(high Pressure Side To Compressor) |
|
Appelez-nous
|
- |
|
|
|
|
ARIF479D1A0D17290EA712C859BF2E1C691 |
|
(high Side To Condenser) |
|
Appelez-nous
|
- |
|
|
|
|
ARI8F052732CB60E39F6CA094A8168A5109 |
|
(process Tube To Compressor) |
|
Appelez-nous
|
- |
|
|
|
|
ARI169E995E2DAC0D79856EDDCD3C362715 |
|
(suction Tube To Compressor) |
|
Appelez-nous
|
- |
|
|
|

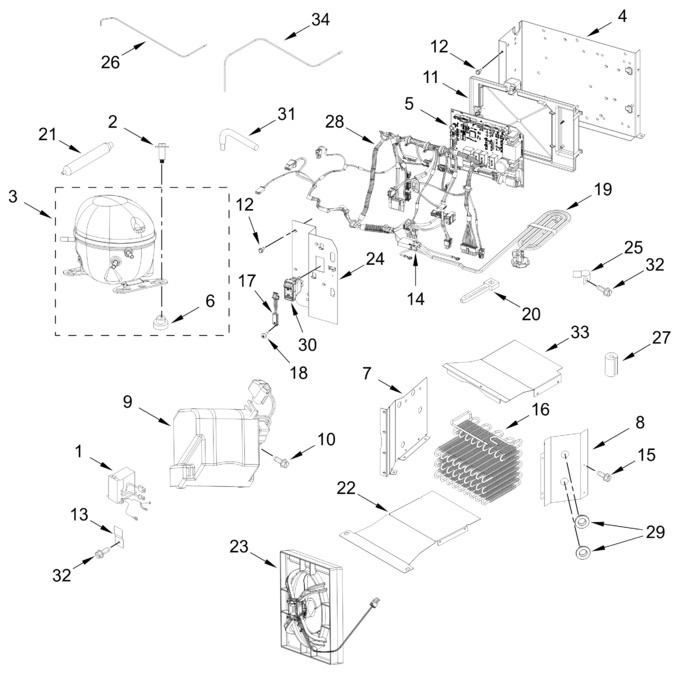

View Diagram in Separate Window
