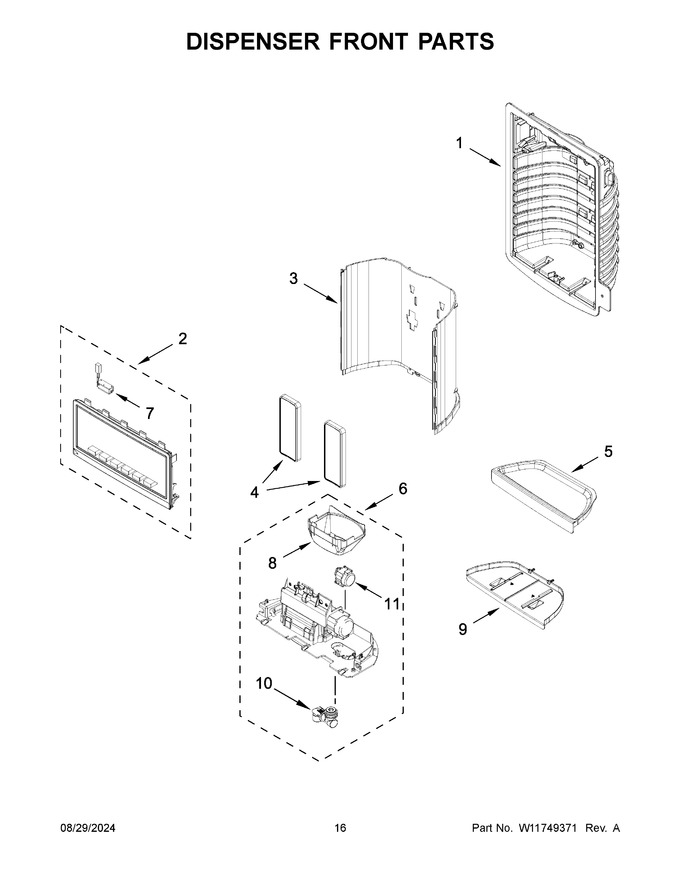

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI0820F7799426DB23CC858392159B72FE | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W11766557 | Assembly, Stealth User Interface (includes Light Feature) (Replaces: W11600494) |
|
$ 267.69 | |||||
| 3 | W11045979 | Wall, Dispenser False (graphite) |
|
$ 47.62 | |||||
| 4 | W11661207 | Assembly, Pad (black) (Replaces: W10353847) |
|
$ 63.04 | |||||
| 5 | W11045974 | Tray, Dispenser (graphite) |
|
$ 60.45 | |||||
| 6 | WPW10353552 | Assembly, Separator (includes Spigot And Ice Guide) (Replaces: W10353552) |
|
$ 166.29 | |||||
| 7 | W11290115 | Assembly, Led (Replaces: W10238083) |
|
$ 80.43 | |||||
| 8 | WPW10435760 | Guide, Ice (Replaces: W10339578) |
|
$ 22.80 | |||||
| 9 | W11045966 | Slide, Dispenser Tray (black Stainless) |
|
$ 60.35 | |||||
| 10 | W11227371 | Assembly, Spigot Body (Replaces: 2316647) |
|
$ 129.89 | |||||
| 11 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 102.48 |
