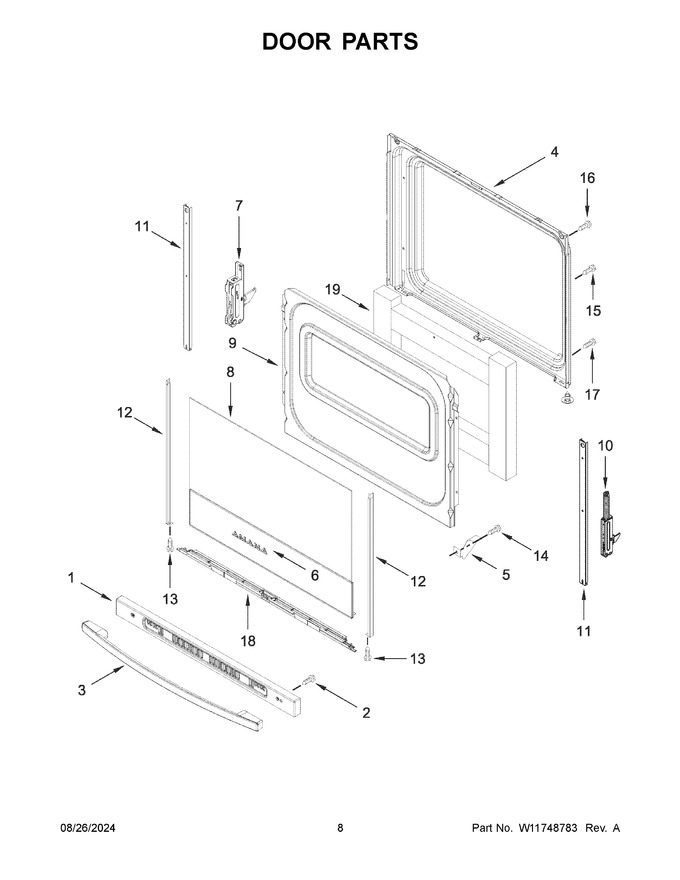

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10310922		Trim, Top (black)   (Replaces: W10310922)			Immediately	$ 175.37
2	W10817436		Screw   (Replaces: W10168559)			Immediately	$ 8.14
3	WPW10323589		Handle, Door (black)   (Replaces: W10323589)			Immediately	$ 238.78
4	9761342		Liner, Door		Appelez-nous	-
5	W10137382		Clip, Panel			Immediately	$ 48.42
6	W11240541		Badge (stainless)   (Replaces: W10846752)			Immediately	$ 77.95
7	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 70.74
8	W11686860		Glass Assembly, Outer Door (black)   (Replaces: W11608533)		Appelez-nous	-
9	W11699790		Retainer, Insulation   (Replaces: W11380207)		Appelez-nous	-
10	WPW10299225		Hinge, Active   (Replaces: W10299225)			Immediately	$ 52.34
11	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 27.68
12	W10761018		Door, Trim (black (left))   (Replaces: W10746436)			Immediately	$ 53.77
13	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
14	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
15	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
16	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
17	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
18	W11440159		Door, Lower Trim (trim, Bottom Door)			Immediately	$ 62.74
19	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 101.37
12A	W10761014		Door, Trim (black (right))   (Replaces: W10746435)			Immediately	$ 72.96
