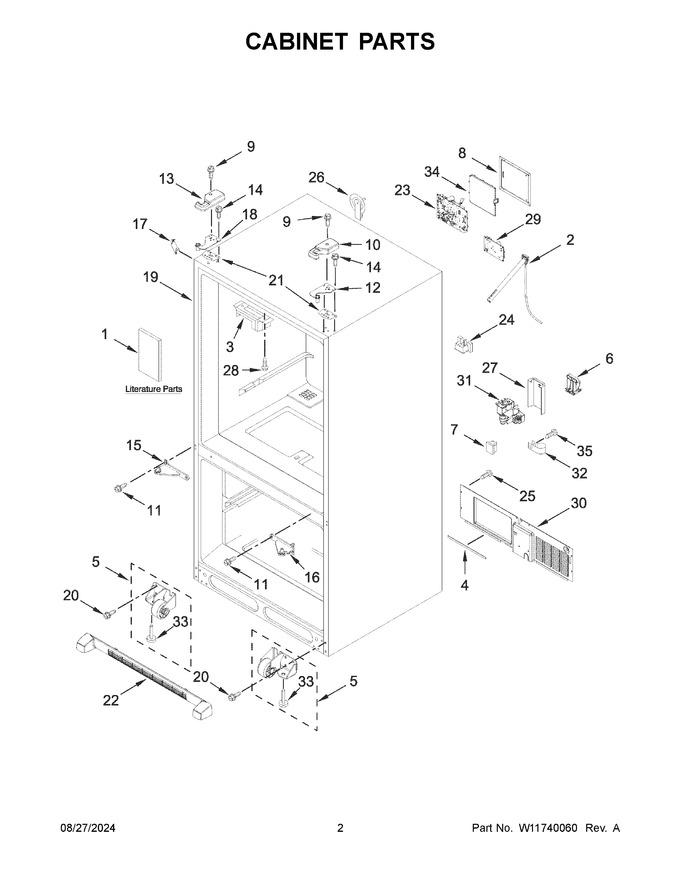

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11468670 | Use And Care Guide |
|
- | |||||
| 2 | W11817981 | Assembly, Fill Tube (includes Tubing, Fill Tube Elbow, Tube Insert And Clamp) (Replaces: W11046934) |
|
Immediately | $ 91.27 | ||||
| 3 | W11024160 | Block, Pivot (Replaces: W10120087) |
|
$ 19.98 | |||||
| 4 | W11534848 | Gasket |
|
Immediately | $ 22.34 | ||||
| 5 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 6 | W10528513 | Sweep, Dual Tube |
|
$ 43.74 | |||||
| 7 | WPM0104106 | Clip, Cord (Replaces: M0104106) |
|
$ 8.17 | |||||
| 8 | 12961602 | Cover, Control Box |
|
$ 116.19 | |||||
| 9 | 12992603 | Screw |
|
$ 10.33 | |||||
| 10 | W10153131 | Cover, Hinge Right Hand (black) |
|
- | |||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 14.72 | |||||
| 12 | W10210891 | Hinge, Top (right Hand) |
|
$ 86.78 | |||||
| 13 | W10892762 | Cover, Hinge Left Hand (black) |
|
$ 19.55 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W11747903 | Hinge, Center (left Hand) (Replaces: W11610760) |
|
$ 56.32 | |||||
| 16 | W11747904 | Hinge, Center (right Hand) (Replaces: W11610761) |
|
$ 56.32 | |||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | W10892768 | Hinge, Top (left Hand) |
|
$ 76.49 | |||||
| 19 | ARI0E0595B5C30868CDEDF430A9DC24D80C | Cabinet (not A Serviceable Part) |
|
- | |||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 21 | 12999501 | Shim, Hinge (left Hand) |
|
$ 99.53 | |||||
| 22 | WPW10534153 | Assembly, Grille (includes Clips) (black) (Replaces: W10534153) |
|
$ 154.57 | |||||
| 23 | WPW10120827 | Control, Electronic (Replaces: W10120827) |
|
Immediately | $ 346.82 | ||||
| 24 | W11686793 | Block, Fill Tube (Replaces: W11651067) |
|
$ 23.57 | |||||
| 25 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 26 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 27 | W10208593 | Guard, Dual Water Valve |
|
$ 15.71 | |||||
| 28 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 29 | WPW10356039 | Control, Electronic (power Supply) (Replaces: W10356039) |
|
Immediately | $ 377.04 | ||||
| 30 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 207.99 | |||||
| 31 | W11524655 | Valve, Water Inlet (Replaces: W11446816) |
|
Immediately | $ 118.72 | ||||
| 32 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 33 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 34 | W11226688 | Lid, Hv Control Box (Replaces: W10296541) |
|
$ 85.16 | |||||
| 35 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 1A | W11647516 | Energy Guide |
|
- | |||||
| 1B | W11665551 | Tech Sheet |
|
- | |||||
| 21A | 12999502 | Shim, Hinge (right Hand) |
|
$ 100.60 | |||||
| 5A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 |
