View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts

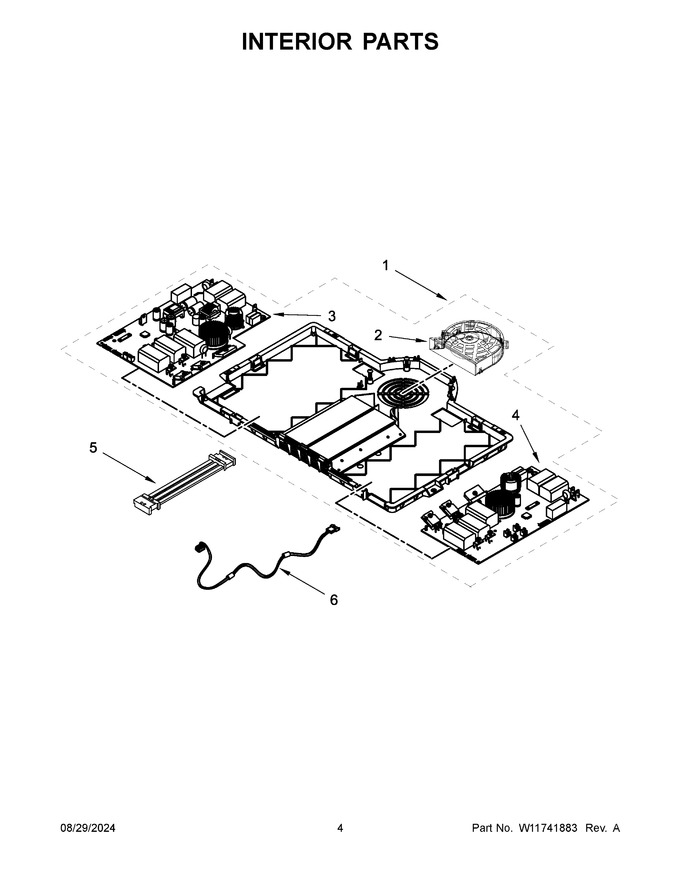

03 - Interior Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11814882 | Module Assembly (Replaces: W11716150) |
|
Immediately | $ 706.62 | ||||
| 2 | W11246545 | Blower Assembly |
|
Immediately | $ 310.94 | ||||
| 3 | ARI101487CA05668106E3DF59ED7491D96A | Power Board Ascari (not Serviced) |
|
- | |||||
| 4 | ARI4BFEEDA8AD96A9CEE26F616D6B45A9E2 | Power Board Farina (not Serviced) |
|
- | |||||
| 5 | W11249830 | Communication Harness (ipc1 To Ipc2) |
|
$ 52.94 | |||||
| 6 | W11347982 | Jumper Harness (hmi To Ipc) |
|
Immediately | $ 59.90 |
