View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

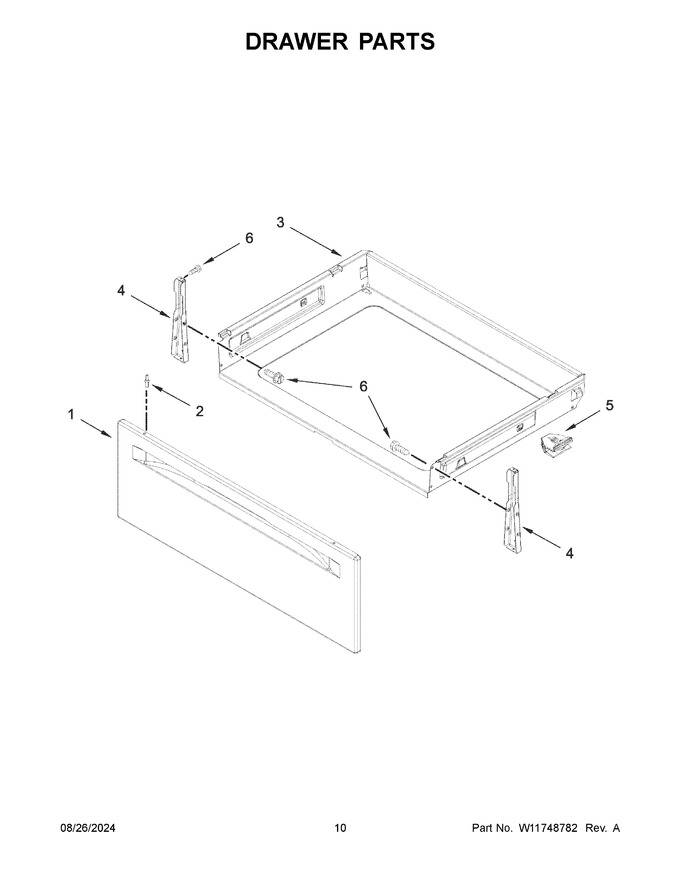

| 1 | W11230488 | Panel, Drawer (black) (Replaces: W11123900) |
|
$ 212.44 | |||||
| 2 | WP3196813 | Rivet, Push (black) (Replaces: 3196813) |
|
Immediately | $ 11.20 | ||||
| 3 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 138.15 | ||||
| 4 | WPW10462912 | Bracket, Mounting Drawer (Replaces: W10462912) |
|
Immediately | $ 133.76 | ||||
| 5 | W10807828 | Glide, Drawer Rear (Replaces: W10674708) |
|
Immediately | $ 19.47 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 5A | W10807823 | Glide, Drawer Front (Replaces: W10674705) |
|
Immediately | $ 19.30 |
