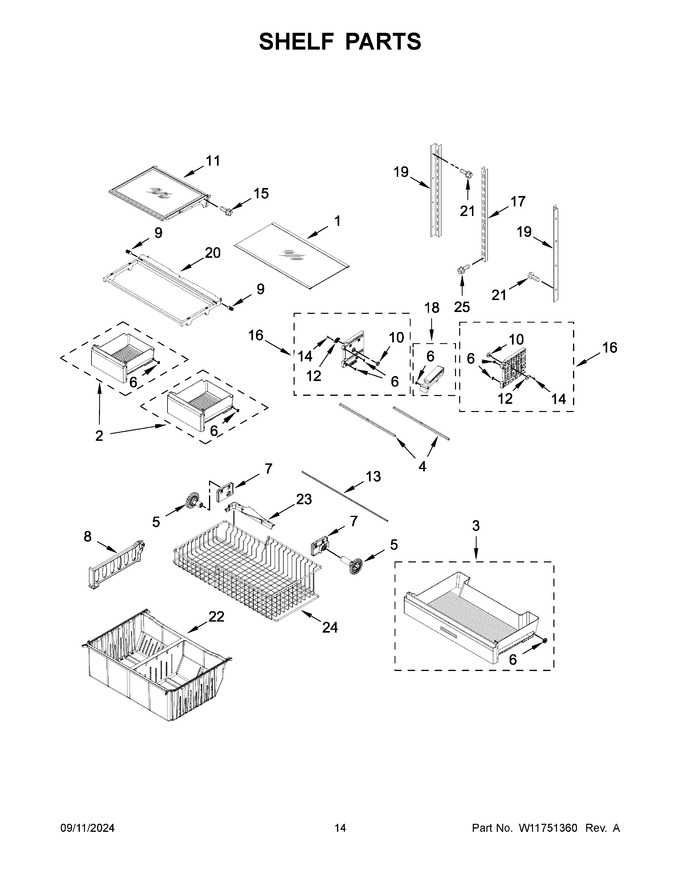

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11750334		Pan Cover, Glass   (Replaces: W11694323)		Appelez-nous	-
2	W11750333		Pan Assembly, Crisper   (Replaces: W11700091)				$ 103.55
3	W11750335		Pan Assembly, Pantry   (Replaces: W11700092)				$ 152.33
4	W11748466		Brace, Crisper Support   (Replaces: W11700717)		Appelez-nous	-
5	WPW10474716		Gear (left Hand)   (Replaces: W10474716)			Immediately	$ 32.42
6	W11748380		Roller Assembly, Crisper   (Replaces: W11606482)		Appelez-nous	-
7	W10348259		Mount, Gear (left Hand)				$ 89.87
8	W10241046		Divider, Basket (upper)			Immediately	$ 29.19
9	W11748383		Support, Crisper Frame   (Replaces: W11705308)		Appelez-nous	-
10	W10840922		Knob, Side Support		Appelez-nous	-
11	W11750332		Shelf Assembly, Stationary   (Replaces: W11579004)				$ 191.02
12	W10840918		Flange, Side Support				$ 93.47
13	W11173556		Shaft, Rack   (Replaces: W10802333)				$ 32.38
14	W10847999		Screw   (Replaces: W10804977)				$ 13.47
15	WP98165		Screw   (Replaces: 12990504)				$ 8.57
16	W11748456		Adapter, Side (left Hand)   (Replaces: W11694395)		Appelez-nous	-
17	W10273463		Ladder, Center				$ 29.61
18	W11748465		Assembly, Pan Center Support   (Replaces: W11694397)		Appelez-nous	-
19	WPW10569182		Ladder, Side   (Replaces: W10569182)				$ 27.59
20	W11749295		Frame, Crisper   (Replaces: W11700893)		Appelez-nous	-
21	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
22	W11125514		Bin, Lower   (Replaces: W11028646)				$ 137.83
23	W10149389		Lift, Bail Arm   (Replaces: W10149389N)				$ 92.66
24	W11268538		Basket, Freezer (upper)   (Replaces: W11115548)			Immediately	$ 199.45
25	W10215666		Screw				$ 9.53
16A	W11748463		Adapter, Side (right Hand)   (Replaces: W11694396)		Appelez-nous	-
5A	WPW10474715		Gear (right Hand)   (Replaces: W10474715)			Immediately	$ 32.76
7A	W10348260		Mount, Gear (right Hand)				$ 89.90
