View Diagram in Separate Window
Print Part List

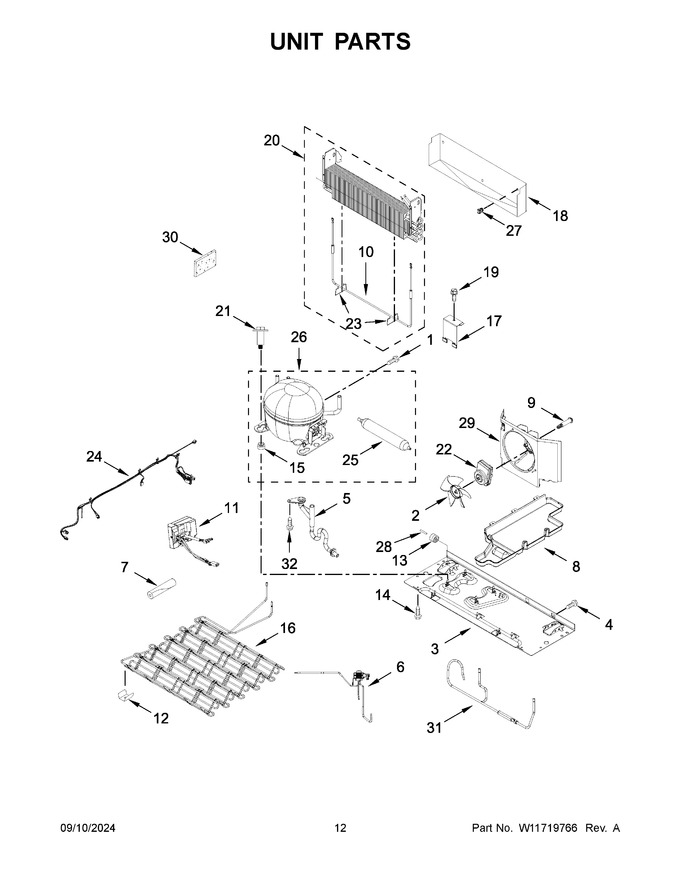

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141625 | Screw (Replaces: W10141625) |
|
$ 22.22 | |||||
| 2 | WP2188935 | Blade, Fan (Replaces: 2188935) |
|
Immediately | $ 97.29 | ||||
| 3 | W11411853 | Baseplate, Compressor |
|
- | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 5 | W11745620 | Extension, Drain (Replaces: W11541633) |
|
- | |||||
| 6 | W11753081 | Assembly, 3 Way Valve (also Order The Following Lokring⢠Parts) (Replaces: W11596064) |
|
$ 147.05 | |||||
| 7 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 8 | W11225840 | Tray, Evaporator (Replaces: W10660727) |
|
Immediately | $ 158.27 | ||||
| 9 | W10829281 | Screw (Replaces: W10622701) |
|
$ 13.28 | |||||
| 10 | W11575359 | Heater, Defrost (Replaces: W11553968) |
|
$ 119.70 | |||||
| 11 | W11747983 | Assembly, Inverter Box (Replaces: W11602266) |
|
- | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 13 | 12477102 | Roller |
|
Immediately | $ 7.38 | ||||
| 14 | 12992101 | Screw |
|
- | |||||
| 15 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 7.55 | |||||
| 16 | W11751993 | Condenser (also Order The Following Lokring⢠Parts) (Replaces: W11728996) |
|
- | |||||
| 17 | W10391376 | Bracket, Valve |
|
$ 35.03 | |||||
| 18 | W11408656 | Tray, Drip |
|
$ 45.58 | |||||
| 19 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 20 | W11598434 | Assembly, Evaporator And Heater (also Order The Following Lokring⢠Parts) (Replaces: W11394387) |
|
$ 335.66 | |||||
| 21 | W11417341 | Screw |
|
$ 14.07 | |||||
| 22 | W11127829 | Motor, Condenser Fan (Replaces: W11505535) |
|
Immediately | $ 185.05 | ||||
| 23 | W11380964 | Clip, Heater |
|
$ 18.53 | |||||
| 24 | W11679643 | Harness, Unit (includes Power Cord) (Replaces: W11306946) |
|
Immediately | $ 131.44 | ||||
| 25 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring⢠Parts) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 26 | W11751358 | Compressor (also Order The Following Lokring⢠Parts) (Replaces: W11602247) |
|
$ 786.59 | |||||
| 27 | 10623002 | Clip, Evaporator |
|
$ 12.11 | |||||
| 28 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.90 | ||||
| 29 | WPW10406719 | Shroud (Replaces: W10406719) |
|
$ 82.24 | |||||
| 30 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 31 | W11747984 | Assembly, Suction Tube (Replaces: W11616171) |
|
- | |||||
| 32 | W10141518 | Screw |
|
$ 9.54 | |||||
| 16A | W11504445 | 5/4 Nr Ms 00 (3-way Valve To Drier) |
|
Immediately | $ 28.92 | ||||
| 16B | W11504431 | 7/5 Nr Ms 00 (suction Line To Condenser) |
|
Immediately | $ 27.13 | ||||
| 20A | W11506620 | 8 Nk Al 00 (capillary Tube To Evaporator - Cut/splice On Aluminum Portion Of Old Evaporator) |
|
Immediately | $ 32.10 | ||||
| 20B | W11506620 | 8 Nk Al 00 (capillary Tube To Evaporator - Cut/splice On Aluminum Portion Of Old Evaporator) |
|
Immediately | $ 32.10 | ||||
| 25A | W11504445 | 5/4 Nr Ms 00 (3-way Valve To Drier) |
|
Immediately | $ 28.92 | ||||
| 25B | W11506623 | 5 Nk Ms 00 (3-way Valve To Drier) |
|
Immediately | $ 22.00 | ||||
| 26A | W11504431 | 7/5 Nr Ms 00 (suction Line To Condenser) |
|
Immediately | $ 27.13 | ||||
| 26B | W11504415 | 8.5/8 Nr Ms 00 (high Pressure Side To Compressor) |
|
Immediately | $ 25.89 | ||||
| 26C | W11506621 | 6 Nk Ms 00 (charging Tube To Compressor) |
|
Immediately | $ 22.00 | ||||
| 26D | W11506635 | Tube, Charging (1/4 In W/ Schrader Valve) |
|
Immediately | $ 37.03 | ||||
| 6A | W11506625 | 3 Nk Ms 00 (3-way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body) |
|
Immediately | $ 20.94 | ||||
| 6B | W11506625 | 3 Nk Ms 00 (3-way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body) |
|
Immediately | $ 20.94 | ||||
| 6C | W11504445 | 5/4 Nr Ms 00 (3-way Valve To Drier) |
|
Immediately | $ 28.92 | ||||
| NI | ARI5CEE166A87037E457C58EA881531C0AA | Refrigerant Charge 53 Grams (r600a) |
|
- |
