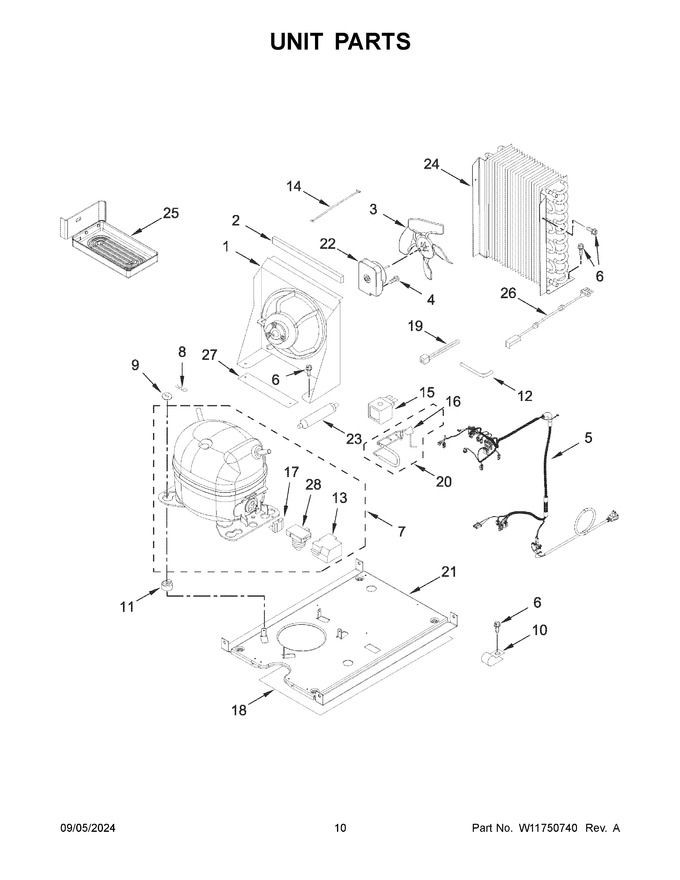

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2185532 | Bracket, Fan Mounting (Replaces: 2185532) |
|
$ 102.18 | |||||
| 2 | 2185675 | Pad, Foam |
|
- | |||||
| 3 | WP2188935 | Blade, Fan (Replaces: 2188935) |
|
Immediately | $ 97.29 | ||||
| 4 | WP8281196 | Screw (Replaces: 8281196) |
|
Immediately | $ 7.55 | ||||
| 5 | W11123917 | Assembly, Cabinet Wire (Replaces: W10917834) |
|
$ 207.12 | |||||
| 6 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 7 | W11735041 | Compressor (Replaces: W10536005) |
|
$ 675.23 | |||||
| 8 | A201435 | Clip, Compressor Mounting |
|
- | |||||
| 9 | A201441 | Shim |
|
$ 9.25 | |||||
| 10 | 2185960 | Clamp, Power Cord |
|
- | |||||
| 11 | 2185965 | Grommet, Compressor (Replaces: 2217318) |
|
- | |||||
| 12 | W10528572 | Tube, Process |
|
$ 38.79 | |||||
| 13 | WP2162358 | Cover, Terminal (Replaces: 2208371) |
|
$ 95.29 | |||||
| 14 | W11086824 | Wire Assembly, Jumper |
|
$ 135.58 | |||||
| 15 | WPW10206473 | Coil, Solenoid (Replaces: W10206473) |
|
$ 194.44 | |||||
| 16 | WP759113 | Body, Solenoid Valve (Replaces: 759113) |
|
$ 326.37 | |||||
| 17 | W11624931 | Protector, Overload (Replaces: W10783194) |
|
Immediately | $ 63.06 | ||||
| 18 | W10282061 | Shield, Heat |
|
- | |||||
| 19 | W11456069 | Clamp, Cable (Replaces: 2185788) |
|
Immediately | $ 22.40 | ||||
| 20 | W11748341 | Valve, Hot Gas (Replaces: W11575246) |
|
Immediately | $ 101.88 | ||||
| 21 | W11748113 | Base, Unit (Replaces: W11560928) |
|
- | |||||
| 22 | W11613295 | Motor, Condenser Fan (Replaces: W10909377) |
|
Immediately | $ 143.68 | ||||
| 23 | W10843121 | Drier (Replaces: W11594492) |
|
Immediately | $ 57.13 | ||||
| 24 | W11748160 | Condenser (Replaces: W11508236) |
|
- | |||||
| 25 | W10615506 | Tray, Drip |
|
- | |||||
| 26 | WP2187629 | Jumper, Wire (condenser Fan) (Replaces: 2187629) |
|
$ 132.58 | |||||
| 27 | W11756947 | Pad, Foam (Replaces: W11553219) |
|
- | |||||
| 28 | WP2217224 | Device, Start (Replaces: 2217224) |
|
Immediately | $ 104.82 | ||||
| NI | ARI86F5E62717CC3F428B6252B131588F3F | Refrigerant Charge 5.75 Oz. (r-134a) |
|
- |
