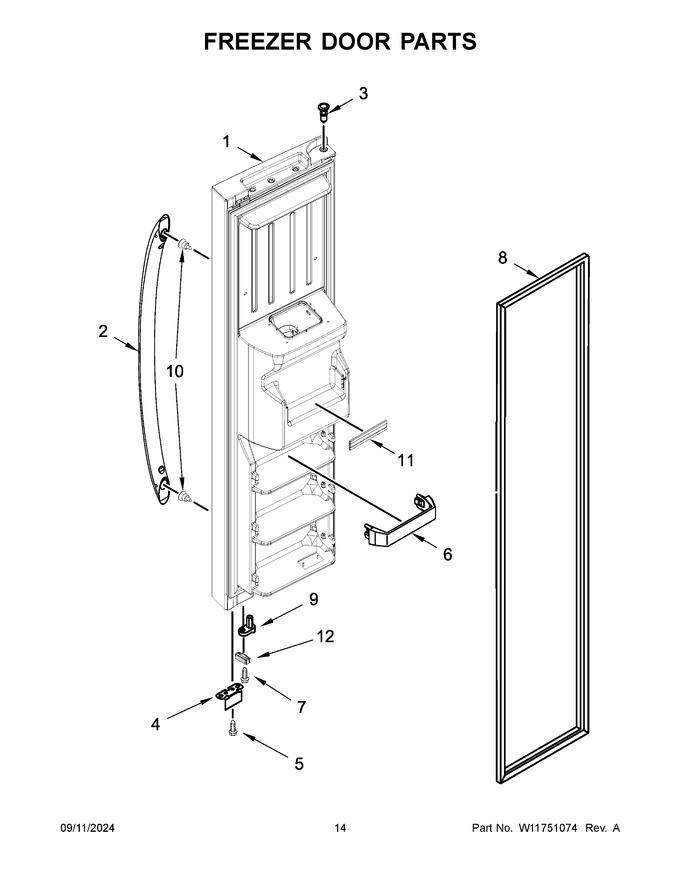

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW11025562 | Door, Freezer (includes Door Gasket And Dispenser Parts) (biscuit) (Replaces: W11025562) |
|
- | |||||
| 2 | W11423779 | Handle (biscuit) (Replaces: W11289636) |
|
- | |||||
| 3 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 8.15 | |||||
| 4 | W11557261 | Bracket, Door Stop (Replaces: W11481757) |
|
Immediately | $ 18.67 | ||||
| 5 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 6 | WP2309718 | Trivet (Replaces: 2309718) |
|
$ 61.49 | |||||
| 7 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 8 | 2159074 | Gasket, Door (beige) (Replaces: W10912123) |
|
$ 325.70 | |||||
| 9 | W11661926 | Thimble, Cam (Replaces: W10900532) |
|
$ 14.02 | |||||
| 10 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 11 | WPW10307490 | Trim, Door Shelf (Replaces: W10307494) |
|
Immediately | $ 24.27 | ||||
| 12 | W10407203 | Bumper, Door (biscuit) |
|
- |
