New Model Search:

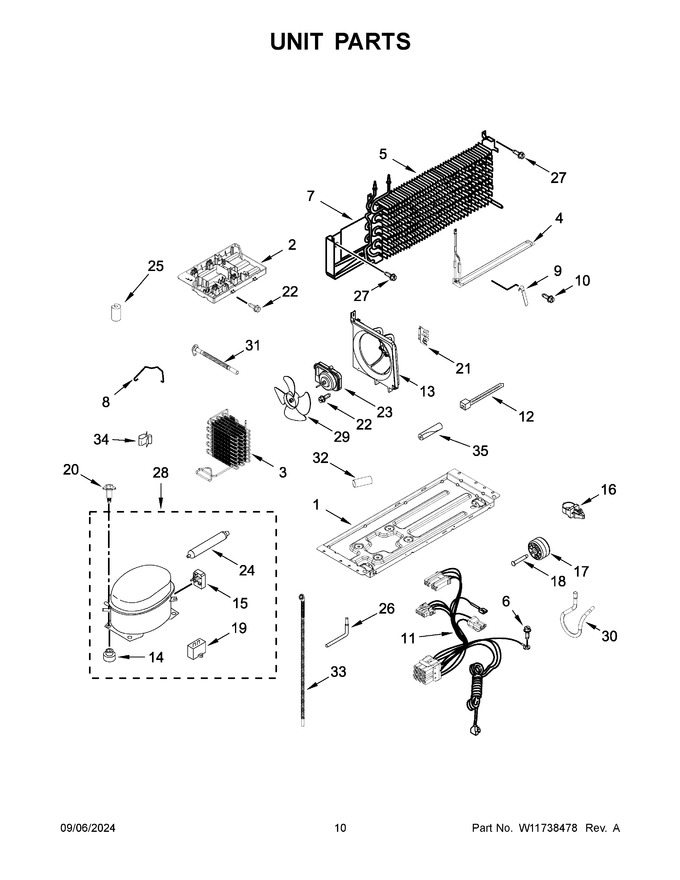

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10624648 | Support Plate, Compressor |
|
$ 101.99 | |||||
| 2 | W10633582 | Tray, Evaporator |
|
$ 93.87 | |||||
| 3 | W11803146 | Condenser (also Order The Following Lokring⢠Parts) (Replaces: W11290570) |
|
Immediately | $ 221.57 | ||||
| 4 | W11562215 | Heater, Defrost (Replaces: W11340898) |
|
Immediately | $ 89.77 | ||||
| 5 | W11562258 | Assembly, Evaporator (also Order The Following Lokring⢠Parts) (Replaces: W11488141) |
|
Immediately | $ 220.35 | ||||
| 6 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 7 | W11562216 | Heat Shield (Replaces: W11377819) |
|
$ 46.55 | |||||
| 8 | W11577799 | Strap, Bale (Replaces: W11495051) |
|
- | |||||
| 9 | W11611126 | Heat Probe (Replaces: W11399989) |
|
$ 23.16 | |||||
| 10 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 11 | W11611445 | Harness, Unit (Replaces: W11238433) |
|
Immediately | $ 82.19 | ||||
| 12 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 13 | W11736795 | Bracket, Fan (Replaces: W11438498) |
|
Immediately | $ 71.48 | ||||
| 14 | W11678963 | Grommet, Compressor (Replaces: W10806346) |
|
$ 8.51 | |||||
| 15 | W11547180 | Device, Combination Start (start Relay And Overload) (Replaces: W11359381) |
|
Immediately | $ 37.83 | ||||
| 16 | 2219077 | Clip, Harness |
|
$ 64.24 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 19 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 58.86 | ||||
| 20 | W11417341 | Screw (Replaces: W10476309) |
|
$ 14.07 | |||||
| 21 | W11340313 | Bracket, Evaporator |
|
$ 75.36 | |||||
| 22 | W10829281 | Screw (Replaces: W10622701) |
|
$ 13.28 | |||||
| 23 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 185.05 | ||||
| 24 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring⢠Parts) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 25 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| 26 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 30.46 | |||||
| 27 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 28 | W11582592 | Compressor (also Order The Following Lokring⢠Parts) (Replaces: W11332034) |
|
$ 398.39 | |||||
| 29 | W11193484 | Blade, Fan (Replaces: W10817071) |
|
Immediately | $ 101.49 | ||||
| 30 | W11562211 | Tube, Suction (Replaces: W11361071) |
|
$ 21.13 | |||||
| 31 | W11383479 | Extension, Drain Tube |
|
$ 34.22 | |||||
| 32 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 14.77 | ||||
| 33 | W10633573 | Tube, Drain |
|
Immediately | $ 35.19 | ||||
| 34 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 11.12 | |||||
| 35 | 2264838 | Sleeve |
|
$ 92.28 | |||||
| 24A | W11504445 | 5/4 Nr Ms 00 (high Side To Condenser) |
|
Immediately | $ 28.92 | ||||
| 24B | W11504449 | 4/2 Nr Al 00 (capillary Tube To Evaporator) |
|
Immediately | $ 37.44 | ||||
| 28A | W11504415 | 8.5/8 Nr Ms 00 (suction Tube To Compressor) |
|
Immediately | $ 25.89 | ||||
| 28B | W11504431 | 7/5 Nr Ms 00 (high Pressure Side To Compressor) |
|
Immediately | $ 27.13 | ||||
| 28C | W11506619 | 8 Nk Ms 00 (process Tube To Compressor) |
|
Immediately | $ 25.88 | ||||
| 3A | W11504445 | 5/4 Nr Ms 00 (high Side To Condenser) |
|
Immediately | $ 28.92 | ||||
| 3B | W11506623 | 5 Nk Ms 00 (suction Line To Condenser) |
|
Immediately | $ 22.00 | ||||
| 5A | W11504419 | (8/7 Nr Al 00) (suction Line To Evaporator) |
|
Immediately | $ 35.19 | ||||
| 5B | W11504449 | 4/2 Nr Al 00 (capillary Tube To Evaporator) |
|
Immediately | $ 37.44 | ||||
| NI | ARI72C650DD6F72DFB3A5CCCFD96E652CB3 | Refrigerant Charge 47 Grams (r600a) |
|
- |
