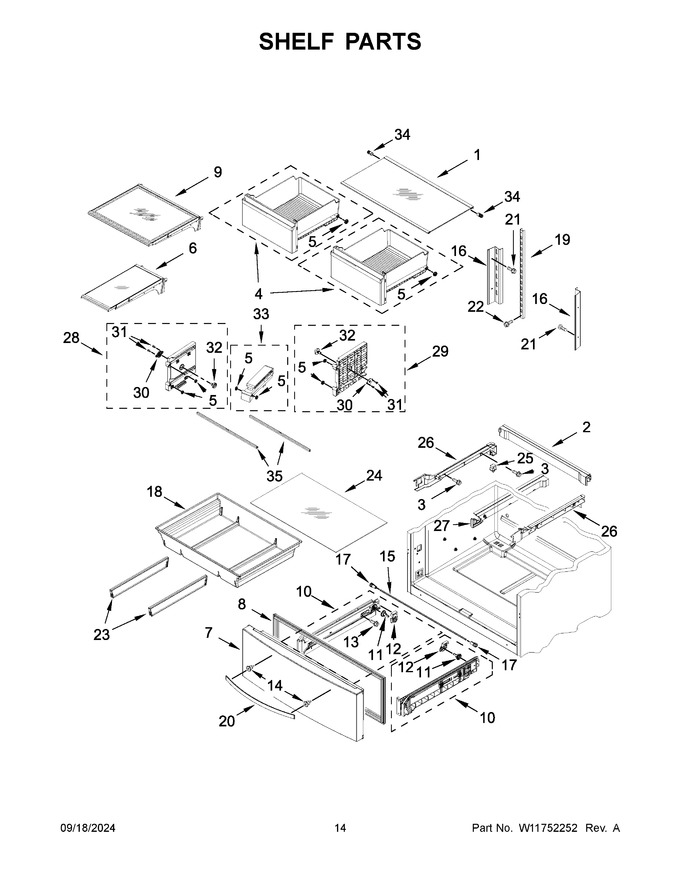

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11749297 | Glass, Pan Cover (Replaces: W11694315) |
|
- | |||||
| 2 | W10331298 | Rail, Rear Pantry |
|
- | |||||
| 3 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 4 | W11749296 | Pan Assembly, Crisper (Replaces: W11694348) |
|
Immediately | $ 99.90 | ||||
| 5 | W11748380 | Roller Assembly, Crisper (Replaces: W11606482) |
|
- | |||||
| 6 | W11749335 | Shelf, Mini (Replaces: W11697425) |
|
- | |||||
| 7 | W11104492 | Door, Pantry (black) (Replaces: W10921835) |
|
- | |||||
| 8 | WPW10443326 | Gasket, Pantry (grey) (Replaces: W10443326) |
|
$ 347.67 | |||||
| 9 | W11749333 | Shelf, Stationary (Replaces: W11697422) |
|
$ 198.96 | |||||
| 10 | W11093713 | Adapter, Pantry (left Hand) |
|
$ 141.44 | |||||
| 11 | W10277360 | Gear, Spur |
|
$ 31.85 | |||||
| 12 | W10284709 | Cover, Gear (left Hand) |
|
$ 73.89 | |||||
| 13 | WPW10272364 | Screw (Replaces: W10272364) |
|
Immediately | $ 11.36 | ||||
| 14 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 15 | W10802341 | Shaft, Rack |
|
- | |||||
| 16 | W10251968 | Ladder, Side (left Hand) |
|
$ 27.38 | |||||
| 17 | WPW10277361 | Collar, Gear (Replaces: W10277361) |
|
$ 12.09 | |||||
| 18 | W11483068 | Pan, Pantry (Replaces: W11340451) |
|
$ 264.98 | |||||
| 19 | W10273464 | Ladder, Center |
|
Immediately | $ 30.19 | ||||
| 20 | W11123101 | Handle, Door (black) (Replaces: W11101980) |
|
$ 183.99 | |||||
| 21 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 22 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 8.38 | |||||
| 23 | W11340457 | Divider, Pantry |
|
$ 42.21 | |||||
| 24 | WPW10296571 | Glass, Pantry Shelf (Replaces: W10296571) |
|
$ 247.10 | |||||
| 25 | W11291138 | Switch, Rocker (Replaces: W10847852) |
|
Immediately | $ 36.67 | ||||
| 26 | W10311723 | Rail, Pantry (left Hand) |
|
$ 142.03 | |||||
| 27 | W10311725 | Cover, Pantry Rail (left Hand) |
|
$ 18.24 | |||||
| 28 | W11749298 | Adapter, Side (left Hand) (Replaces: W11702389) |
|
- | |||||
| 29 | W11749300 | Adapter, Side (right Hand) (Replaces: W11702392) |
|
- | |||||
| 30 | W10840918 | Flange, Side Support |
|
$ 93.47 | |||||
| 31 | W10847999 | Screw (Replaces: W10804977) |
|
$ 13.47 | |||||
| 32 | W10840922 | Knob, Side Support |
|
- | |||||
| 33 | W11749331 | Assembly, Pan Center Support (Replaces: W11702378) |
|
- | |||||
| 34 | W11748383 | Support, Crisper Frame (Replaces: W11705308) |
|
- | |||||
| 35 | W11748466 | Brace, Crisper Support (Replaces: W11700717) |
|
- | |||||
| 10A | W11093714 | Adapter, Pantry (right Hand) |
|
$ 138.32 | |||||
| 12A | W10294414 | Cover, Gear (right Hand) |
|
$ 83.48 | |||||
| 16A | W10251965 | Ladder, Side (right Hand) |
|
$ 31.08 | |||||
| 26A | W11715934 | Rail, Pantry (right Hand) (Replaces: W10311726) |
|
$ 45.82 |
