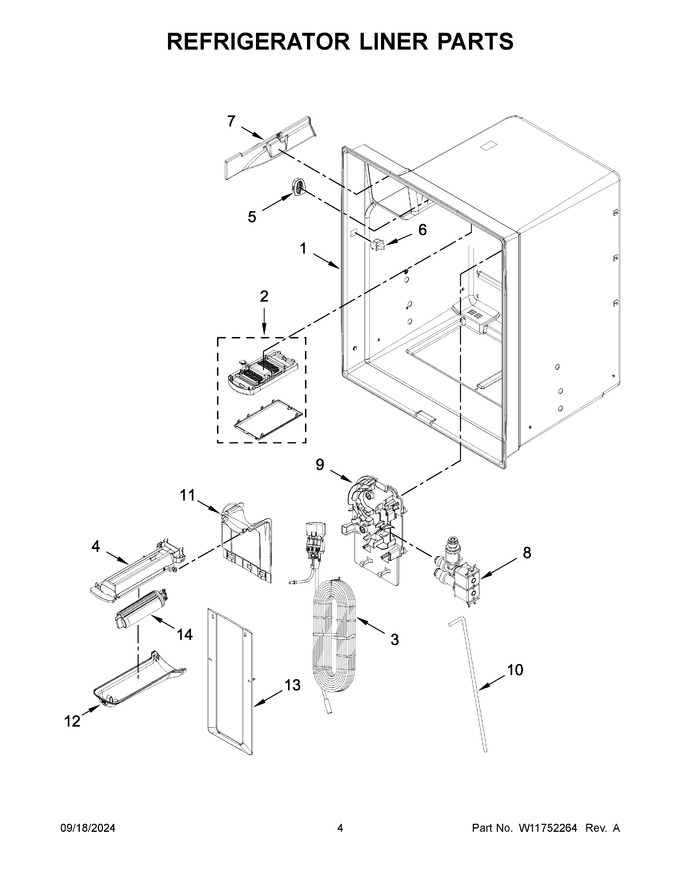

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI8B23AD81B97D70C7853D17BAA6EEAA2D | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11527432 | Assembly, Upper Light (includes Led Module And Lens) (Replaces: W11387579) |
|
Immediately | $ 123.37 | ||||
| 3 | W11706229 | Assembly, Water Tank And Manifold (Replaces: W11519216) |
|
$ 184.81 | |||||
| 4 | W11706281 | Bracket, Filter Base (Replaces: W11510659) |
|
$ 36.36 | |||||
| 5 | W10555984 | Assembly, Air Grille |
|
Immediately | $ 42.09 | ||||
| 6 | W11396033 | Switch, Light (Replaces: W10847849) |
|
Immediately | $ 37.30 | ||||
| 7 | WPW10309869 | Cover, Wiring (Replaces: W10309869) |
|
$ 114.65 | |||||
| 8 | W11548535 | Valve, Water Inlet (Replaces: W11446814) |
|
Immediately | $ 85.52 | ||||
| 9 | WPW10334463 | Bracket, Water Tank And Valve (Replaces: W10334463) |
|
$ 62.69 | |||||
| 10 | W11666461 | Tube, Water (Replaces: W11518277) |
|
$ 88.38 | |||||
| 11 | W11706278 | Cover, Upper Water Tank (Replaces: W11513126) |
|
- | |||||
| 12 | W11706279 | Cover, Filter (Replaces: W11510661) |
|
$ 106.53 | |||||
| 13 | W11565236 | Cover, Lower Water Tank |
|
$ 60.34 | |||||
| 14 | EDRARXD1B | Filter, Water (Replaces: W11536439) |
|
Immediately | $ 49.99 |
