01 - Cover Sheet

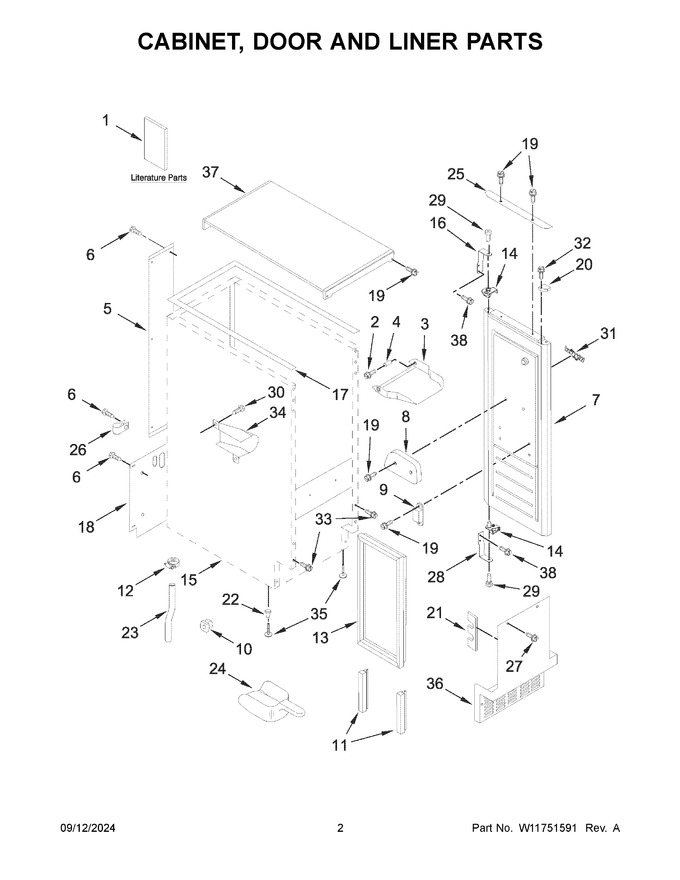

02 - Cabinet, Door And Liner Parts
03 - Evaporator, Grid, And Water Parts
04 - Pump Parts
05 - Control Panel Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11686966 | Owners Manual |
|
- | |||||
| 2 | 3400886 | Screw (stainless) |
|
$ 5.65 | |||||
| 3 | W10734102 | Bin, Door |
|
- | |||||
| 4 | 2185678 | Spacer |
|
$ 11.03 | |||||
| 5 | 2217394 | Cover, Wiring |
|
- | |||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 7 | W10512905Q | Door (white) (Replaces: W10512905) |
|
- | |||||
| 8 | W11309649 | Cam,door |
|
- | |||||
| 9 | W11223751 | Assembly, Magnetic Catch (Replaces: W10529250) |
|
$ 62.40 | |||||
| 10 | W10136999 | Nut, Push-in |
|
- | |||||
| 11 | W11165597 | Gasket, Bottom |
|
- | |||||
| 12 | W10670799 | Clamp, Hose |
|
Immediately | $ 24.87 | ||||
| 13 | WP2217294 | Gasket, Door (Replaces: 2217294) |
|
$ 285.98 | |||||
| 14 | W10486558 | Stop, Top Door (white) |
|
- | |||||
| 15 | ARI622974ECE62923C030B4A022E08C863C | Cabinet And Liner (not Serviced) |
|
- | |||||
| 16 | W10476704 | Hinge, Top (white) |
|
- | |||||
| 17 | W11624957 | Gasket, Top Panel (Replaces: 2217293) |
|
- | |||||
| 18 | W11367893 | Cover, Unit (Replaces: W11256688) |
|
$ 98.53 | |||||
| 19 | 8534077 | Screw (white) |
|
- | |||||
| 20 | W11309713 | Filler, Top Endcap (white) |
|
- | |||||
| 21 | W10532250 | Pad, Foam |
|
- | |||||
| 22 | 3400240 | Nut |
|
- | |||||
| 23 | W10737551 | Tube, Drain |
|
$ 74.12 | |||||
| 24 | W11420408 | Scoop (Replaces: W10493422) |
|
$ 28.61 | |||||
| 25 | WP2208493W | Handle, Door (white) (Replaces: 2208493W) |
|
$ 150.78 | |||||
| 26 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 11.92 | |||||
| 27 | W11447718 | Screw (white) (Replaces: W10531303) |
|
Immediately | $ 14.74 | ||||
| 28 | W10476697 | Hinge, Bottom (white) |
|
- | |||||
| 29 | 2185712 | Pin, Hinge |
|
$ 49.37 | |||||
| 30 | WP489443 | Screw (stainless) (Replaces: 489443) |
|
Immediately | $ 8.33 | ||||
| 31 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 32 | 348689 | Screw |
|
$ 78.07 | |||||
| 33 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 8.43 | ||||
| 34 | 2185927 | Holder, Scoop |
|
$ 89.07 | |||||
| 35 | 8193716 | Leg, Leveling (Replaces: 3374849) |
|
Immediately | $ 88.96 | ||||
| 36 | WP2185571W | Grill, Front (white) (Replaces: 2185571W) |
|
$ 146.35 | |||||
| 37 | W10512750 | Panel, Top (white) |
|
- | |||||
| 38 | W11661566 | Screw (white) (Replaces: W10495263) |
|
$ 14.73 | |||||
| 14A | W10486560 | Stop, Bottom Door (white) |
|
- | |||||
| 1A | W10761657 | Tech Sheet |
|
- | |||||
| 20A | W11309714 | Filler, Bottom Endcap (white) |
|
- |
