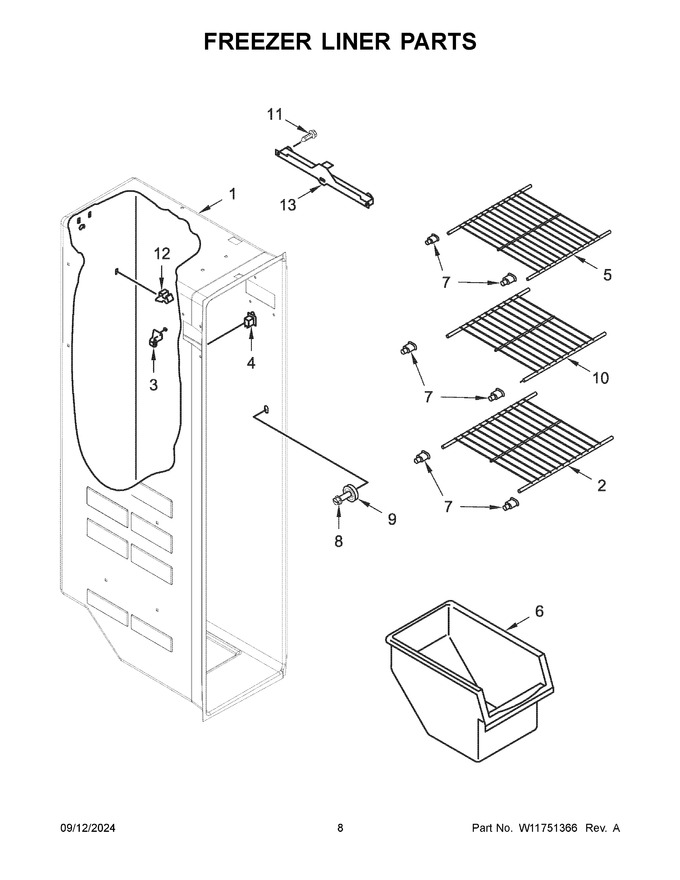

Diagram for 05 - Freezer Liner Parts
05 - Freezer Liner Parts

Diagram for 06 - Motor And Ice Container Parts
06 - Motor And Ice Container Parts

Diagram for 07 - Refrigerator Door Parts
07 - Refrigerator Door Parts

Diagram for 08 - Freezer Door Parts
08 - Freezer Door Parts

Diagram for 09 - Dispenser Parts
09 - Dispenser Parts

Diagram for 10 - Air Flow Parts
10 - Air Flow Parts

Diagram for 11 - Unit Parts
11 - Unit Parts

Diagram for 12 - Optional Parts
12 - Optional Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI9208FF59B665205FA02090F61BA46518 Liner (not A Seviceable Part) Appelez-nous -
2 WPW10318952 Shelf, Wire   (Replaces: W10318952) In-Stock Immediately $ 88.08

3 2196206 Stud, Support Appelez-nous -
4 W11396033 Switch, Light   (Replaces: W10847849) In-Stock Immediately $ 37.30

5 WPW10318960 Shelf, Wire (short)   (Replaces: W10318960) In-Stock Immediately $ 90.12

6 WP2309758 Bin, Freezer   (Replaces: 2309758) In-Stock Immediately $ 124.47

7 WPW10130299 Cup, Shelf   (Replaces: W10130299) In-Stock Immediately $ 14.00

8 WP3-24004-109 Screw   (Replaces: W10191954) Special Order $ 8.05

9 W11223328 Assembly, Stud   (Replaces: 2196208) In-Stock Immediately $ 14.07

10 WPW10318953 Shelf, Wire   (Replaces: W10318953) In-Stock Immediately $ 83.58

11 718257 Screw   (Replaces: 489100) Appelez-nous -
12 2215823 Clip, Air Duct   (Replaces: 2315163) Special Order $ 10.42

13 W10845585 Slide, Ice Container (left) Special Order $ 132.77

13A W10845583 Slide, Ice Container (right) Special Order $ 123.92


    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for WRS311SDHB10
