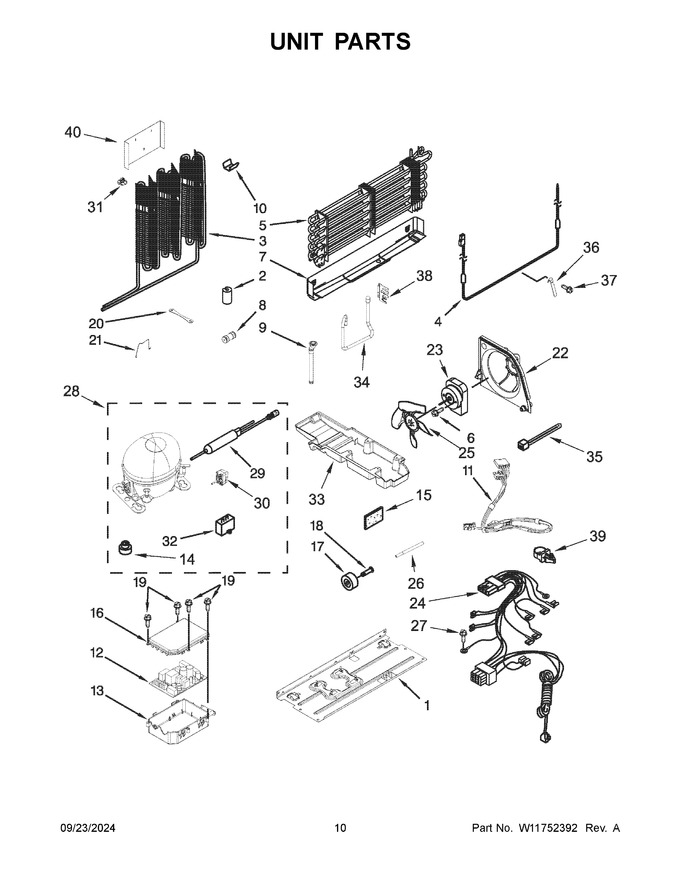

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10300116		Baseplate				$ 164.30
2	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 8.09
3	WPW10342567		Condenser (also Order The Following Lokring™ Parts)   (Replaces: W10342567)				$ 278.20
4	W11562215		Heater, Defrost   (Replaces: W11340898)			Immediately	$ 89.77
5	W11625643		Assembly, Evaporator (also Order The Following Lokring™ Parts)   (Replaces: W11341162)			Immediately	$ 394.76
6	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
7	W11562216		Heat Shield   (Replaces: W11377819)				$ 46.55
8	WP2300868		Connector, Union   (Replaces: W10271541)			Immediately	$ 29.05
9	W11284510		Tube, Drain   (Replaces: W11115756)				$ 70.53
10	W10683556		Clip, Condenser   (Replaces: W10248621)				$ 19.38
11	W11632351		Assembly, Low Voltage Wire   (Replaces: W11515411)				$ 24.44
12	W11035836		Control, Electronic   (Replaces: W10892333)			Immediately	$ 261.12
13	2323186		Box, Control				$ 107.48
14	W11678963		Grommet, Compressor   (Replaces: W10806346)				$ 8.51
15	W11553819		Insulation, Sound   (Replaces: 2215468)			Immediately	$ 14.77
16	W10313215		Cover, Electronic Control				$ 77.99
17	WPW10475495		Roller   (Replaces: W10475495)			Immediately	$ 32.06
18	W11594405		Axle, Rivet   (Replaces: 2179826)			Immediately	$ 19.12
19	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 11.61
20	W10236396		Strap, Compressor			Immediately	$ 20.81
21	W11577799		Strap, Bale   (Replaces: W11495051)		Appelez-nous	-
22	W11605794		Bracket, Condenser Fan   (Replaces: W11509373)			Immediately	$ 82.52
23	WP2188874		Motor, Condenser   (Replaces: W11546725)			Immediately	$ 113.96
24	W11623577		Assembly, Unit Wire   (Replaces: W11506836)				$ 118.60
25	W11193484		Blade, Fan   (Replaces: W10817071)			Immediately	$ 101.49
26	W11661102		Tube, Process   (Replaces: 2174739)				$ 30.46
28	W11580057		Compressor (also Order The Following Lokring™ Parts)   (Replaces: W11332033)			Immediately	$ 400.16
29	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 39.12
30	W11547180		Device, Combination Start (start Relay And Overload)   (Replaces: W11359381)			Immediately	$ 37.83
31	W10815861		Clip, Bottom Cover				$ 15.80
32	WPW10662129		Capacitor   (Replaces: W10590083)			Immediately	$ 58.86
33	W10890667		Tray, Drain   (Replaces: W10802027)				$ 151.95
34	W11741026		Tube, Suction   (Replaces: W11518248)				$ 60.33
35	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 8.30
36	W11611126		Heat Probe   (Replaces: W11558549)				$ 23.16
37	WP489478		Screw   (Replaces: 489478)				$ 8.18
38	W11466555		Bracket, Evaporator				$ 34.45
39	2219077		Clip, Harness				$ 64.24
40	W10349514		Cover, Condenser Bottom				$ 82.40
28A	W11504432		6/5 Nr Ms 00 (heat Loop To Condenser)			Immediately	$ 25.88
28B	W11506619		8 Nk Ms 00 (suction Line To Evaporator)			Immediately	$ 25.88
28C	W11506638		(8 Nav) (process Tube To Compressor)			Immediately	$ 52.42
29A	W11504445		5/4 Nr Ms 00 (3-way Valve To Drier)			Immediately	$ 28.92
29B	W11504448		5/1.8 Nr Al 00 (capillary Tube To Drier)			Immediately	$ 48.58
3A	W11504445		5/4 Nr Ms 00 (3-way Valve To Drier)			Immediately	$ 28.92
3B	W11504432		6/5 Nr Ms 00 (heat Loop To Condenser)			Immediately	$ 25.88
5A	W11504415		8.5/8 Nr Ms 00 (high Pressure Side To Compressor)			Immediately	$ 25.89
5B	W11504450		4/1.8 Nr Ms 00 (capillary Tube To Evaporator)			Immediately	$ 46.52
NI	ARI33D54712738355A8E3DB49CF8B59BEF7		Refrigerant Charge 43 Grams (r600a)		Appelez-nous	-
