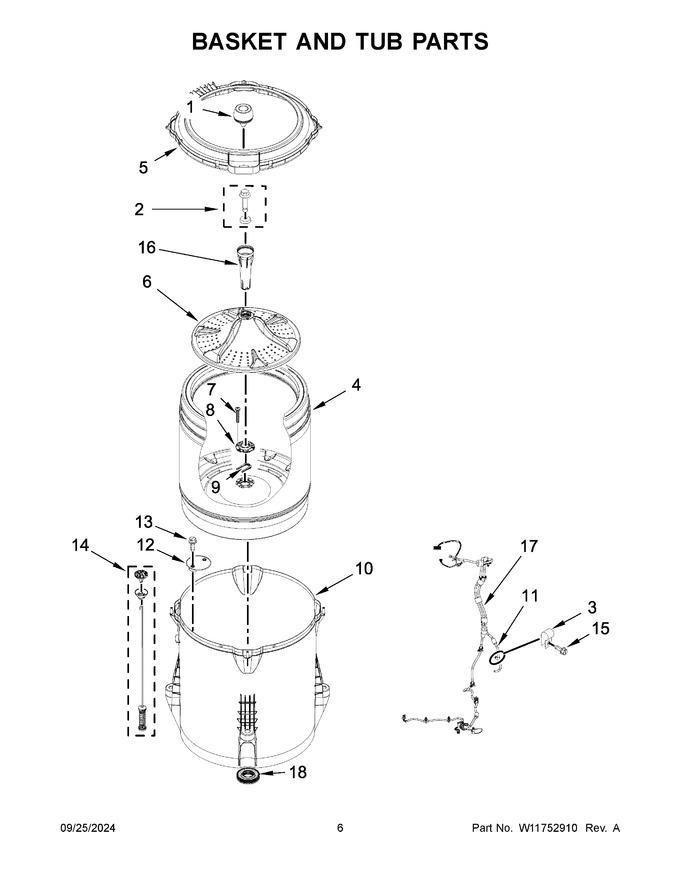

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11024702 | Dispenser, Fabric Softener (Replaces: W10680192) |
|
$ 80.79 | |||||
| 2 | W11223765 | Bolt And Washer (Replaces: W11121786) |
|
Immediately | $ 15.20 | ||||
| 3 | W10005430 | Clamp, Cable |
|
Immediately | $ 9.53 | ||||
| 4 | W11172199 | Basket Assembly |
|
Immediately | $ 405.26 | ||||
| 5 | W11550886 | Tub Ring (Replaces: W11043544) |
|
Immediately | $ 94.31 | ||||
| 6 | W11397111 | Impeller (washplate) (Replaces: W10680215) |
|
Immediately | $ 170.29 | ||||
| 7 | WP8533953 | Screw (Replaces: 8533953) |
|
Immediately | $ 7.55 | ||||
| 8 | W10528947 | Hub - Driven, Basket (Replaces: W10396887) |
|
Immediately | $ 44.23 | ||||
| 9 | W11385424 | Retainer, Drive Block (Replaces: W11284133) |
|
Immediately | $ 12.97 | ||||
| 10 | W10371566 | Tub (Replaces: W10238320) |
|
$ 356.34 | |||||
| 11 | W10846364 | Hose, Pressure Switch (Replaces: W10520039) |
|
Immediately | $ 22.19 | ||||
| 12 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 65.26 | |||||
| 13 | WP8533928 | Screw (left Hand) (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 14 | W11217817 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W11226768) |
|
Immediately | $ 138.22 | ||||
| 15 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.80 | ||||
| 16 | W10836692 | Barrel, Agitator (Replaces: W10680220) |
|
Immediately | $ 116.56 | ||||
| 17 | W11665967 | Harness, Lower (Replaces: W11450610) |
|
Immediately | $ 100.85 | ||||
| 18 | W10324647 | Seal, Tub (Replaces: W10580763) |
|
Immediately | $ 93.50 |
