01 - Cover Sheet

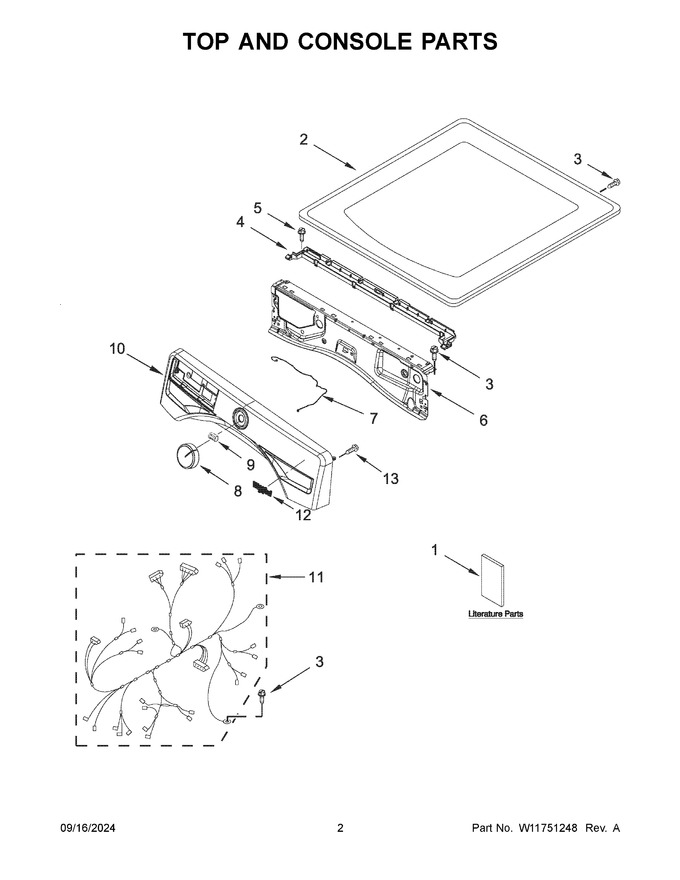

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W11310027 | Channel, Water (Replaces: W11255768) |
|
$ 23.74 | |||||
| 5 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 6 | W11480682 | Bracket, Console |
|
$ 81.21 | |||||
| 7 | W11752166 | Harness, Acu To Hmi (Replaces: W11719384) |
|
- | |||||
| 8 | W11752162 | Assembly, Knob (Replaces: W11709753) |
|
- | |||||
| 9 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 10 | W11752165 | Console (Replaces: W11706452) |
|
- | |||||
| 11 | W11157863 | Harness, Main Wiring |
|
$ 181.88 | |||||
| 12 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 13 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 1A | W11708031 | Tech Sheet |
|
- | |||||
| 1B | W11708005 | Quick Start Guide |
|
- |
