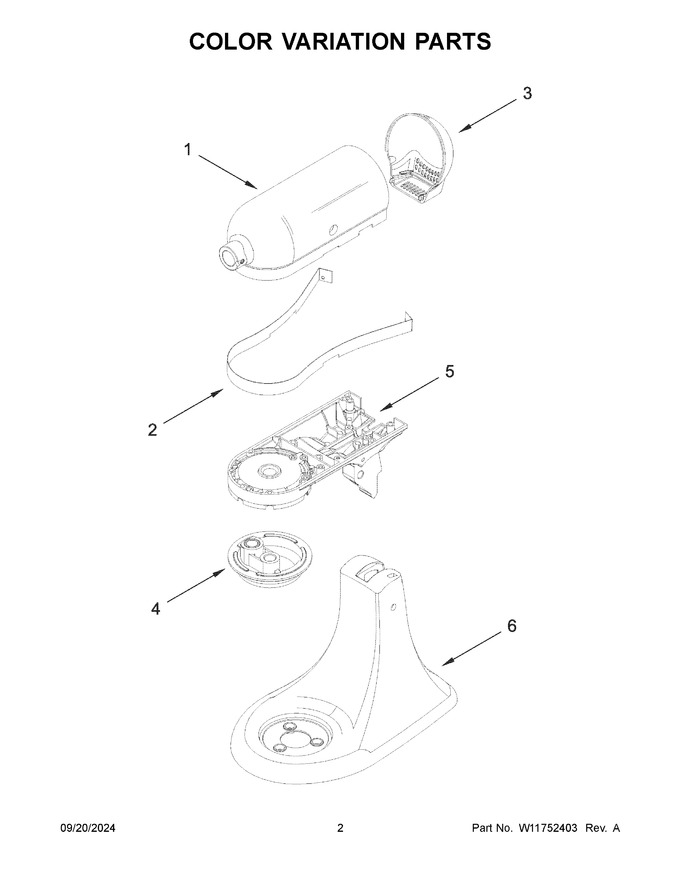

02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11614449 | Motor Housing (blossom) |
|
- | |||||
| 2 | W11550504 | Trim Band (brushed Platinum) |
|
- | |||||
| 3 | W11551264 | End Cover (blossom) |
|
- | |||||
| 4 | W10342514 | Planetary (sugar Pearl Silver) |
|
$ 45.31 | |||||
| 5 | W11551295 | Lower Gearcase (blossom) |
|
- | |||||
| 6 | W11551280 | Pedestal With Feet And Headlock (blossom) |
|
- |
