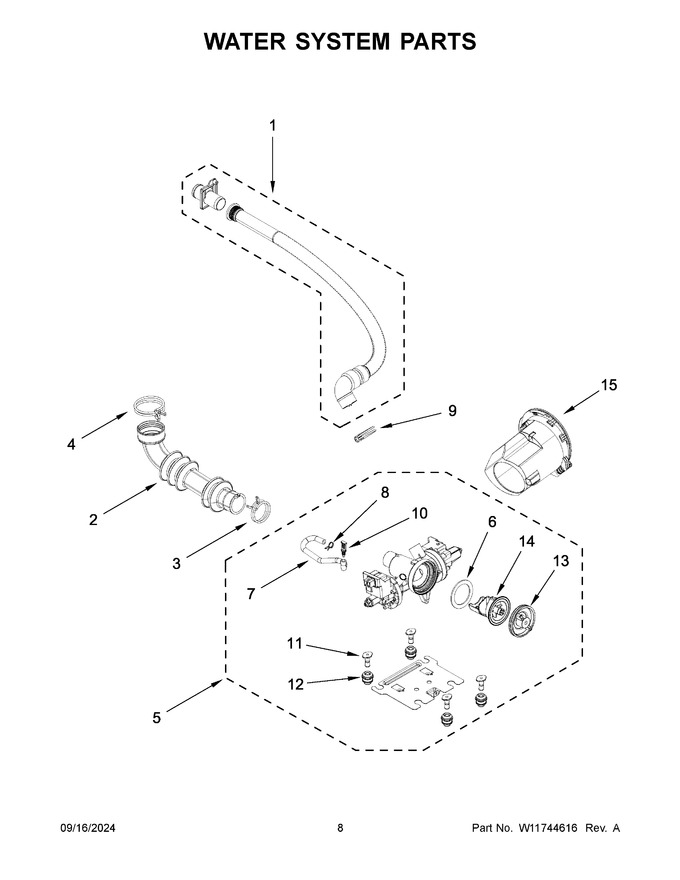

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11549455 | Assembly, Drain Hose (Replaces: W11507443) |
|
Immediately | $ 36.30 | ||||
| 2 | W11314666 | Hose, Tub To Pump (Replaces: W11216718) |
|
$ 35.56 | |||||
| 3 | WP616099 | Clamp, Hose (Replaces: 370448) |
|
Immediately | $ 8.58 | ||||
| 4 | W10273034 | Clamp, Vent Hose |
|
$ 11.22 | |||||
| 5 | W11747098 | Assembly, Pump (Replaces: W11718113) |
|
$ 172.49 | |||||
| 6 | W11316613 | Seal, Filter Cap (Replaces: W10921839) |
|
$ 23.28 | |||||
| 7 | W11747861 | Hose, Drain (pump) (Replaces: W11718104) |
|
- | |||||
| 8 | W11316666 | Clamp, Hose (Replaces: W10834076) |
|
- | |||||
| 9 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 10 | W11748891 | Plug, Drain (pump) (Replaces: W11741590) |
|
- | |||||
| 11 | W11316664 | Grommet, Pin (pump) (Replaces: W11133160) |
|
$ 22.40 | |||||
| 12 | W11316663 | Grommet (pump) (Replaces: W11126910) |
|
$ 22.49 | |||||
| 13 | W11316610 | Cap, Filter (Replaces: W10921834) |
|
$ 58.51 | |||||
| 14 | W11458347 | Filter, Pump (Replaces: W11319788) |
|
$ 9.72 | |||||
| 15 | W11771917 | Assembly, Drain Pump Housing (Replaces: W11715427) |
|
$ 117.31 |
