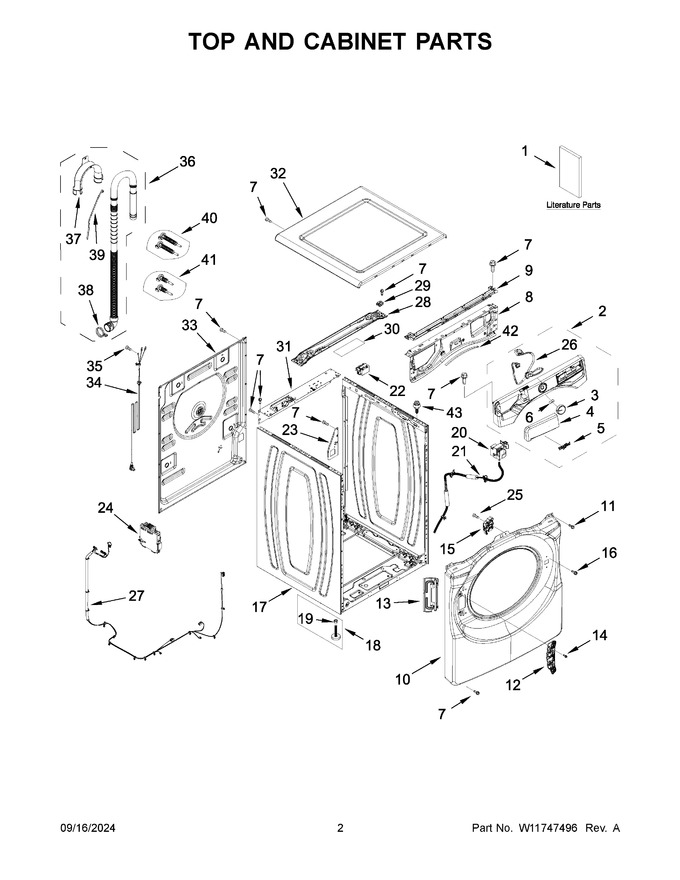

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11355369		Owner's Manual		Appelez-nous	-
2	W11748897		Console   (Replaces: W11709330)				$ 582.98
3	W11746647		Assembly, Knob   (Replaces: W11709754)				$ 45.27
4	W11748894		Handle, Drawer (radiant Silver)   (Replaces: W11709740)				$ 176.64
5	W11223753		Badge   (Replaces: W10884773)			Immediately	$ 87.26
6	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
7	W11568617		Screw   (Replaces: W10567155)				$ 14.72
8	W11314678		Bracket, Console   (Replaces: W10915381)				$ 156.02
9	W11458348		Channel, Water   (Replaces: W10796898)		Appelez-nous	-
10	W11748895		Panel, Front (radiant Silver)   (Replaces: W11710564)				$ 487.38
11	WP273556		Screw   (Replaces: 357640)			Immediately	$ 8.43
12	W11742046		Hinge Assembly   (Replaces: W11668720)			Immediately	$ 162.31
13	W11747862		Bracket, Hinge   (Replaces: W11715541)				$ 50.74
14	W11661566		Screw   (Replaces: W10288126)				$ 14.73
15	W11733849		Lock, Door   (Replaces: W11670890)			Immediately	$ 73.95
16	WP8540282		Screw   (Replaces: 8540282)				$ 12.14
17	W11715930		Cabinet (radiant Silver)				$ 519.20
18	W11675697		Leveling Leg Assembly   (Replaces: W11604388)				$ 14.26
19	W11675698		Nut, Hex   (Replaces: W11599138)				$ 13.55
20	W11316246		Pressure Switch   (Replaces: W11125159)			Immediately	$ 103.04
21	W11456953		Hose, Pressure Switch   (Replaces: W11319791)			Immediately	$ 34.90
22	W11689659		Rfi Filter   (Replaces: W11533492)			Immediately	$ 22.49
23	W11316769		Bracket, Drain Hose   (Replaces: W11091443)			Immediately	$ 22.09
24	W11747036		Appliance Control Unit (acu)   (Replaces: W11742379)			Immediately	$ 486.48
25	W10306501		Screw		Appelez-nous	-
26	W11746648		Harness, Hmi   (Replaces: W11719455)		Appelez-nous	-
27	W11747093		Harness, Main   (Replaces: W11722227)			Immediately	$ 199.56
28	W10467484		Brace, Top				$ 44.98
29	W11846996		Retainer, Spring   (Replaces: W10245452)				$ 10.07
30	W11314674		Foam Pad   (Replaces: W10331064)				$ 19.90
31	W11353016		Bracket, Rear				$ 24.92
32	W11748893		Top (radiant Silver)   (Replaces: W11715212)			Immediately	$ 353.01
33	W11491750		Panel, Rear   (Replaces: W11420275)			Immediately	$ 361.60
34	W11316254		Cord, Power   (Replaces: W10919946)			Immediately	$ 134.51
35	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
36	W11551765		Hose, Drain (external)   (Replaces: W11392677)			Immediately	$ 20.82
37	WPW10280024		U-bend, Drain Hose   (Replaces: W10280024)				$ 83.51
38	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
39	WPW10339879		Cable Tie   (Replaces: W10267532)				$ 8.30
40	W11316631		Bolt, Transport (long)   (Replaces: W11041287)				$ 42.55
41	W11316629		Bolt, Transport (short)   (Replaces: W11041011)				$ 43.73
42	W11316770		Edge Guard   (Replaces: W10407376)		Appelez-nous	-
43	W10208380		Screw And Bushing Assembly				$ 72.48
1A	W11712042		Quick Start Guide		Appelez-nous	-
1B	W11737328		Energy Guide		Appelez-nous	-
