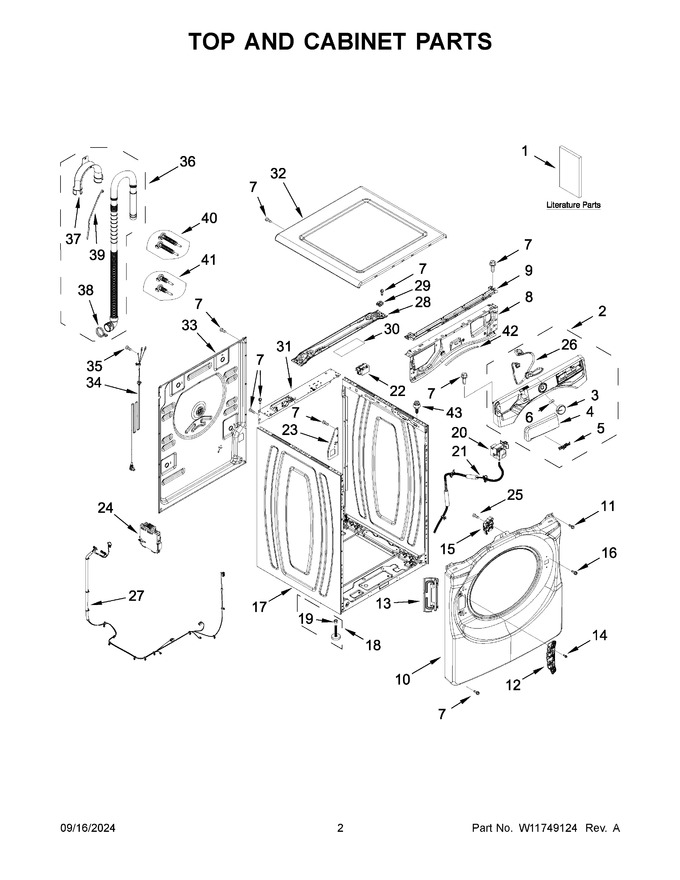

02 - Top And Cabinet Parts
03 - Door Parts
04 - Dispenser Parts
05 - Water System Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11355369 | Owner's Manual |
|
- | |||||
| 2 | W11750373 | Console (Replaces: W11709331) |
|
Immediately | $ 521.56 | ||||
| 3 | W11746647 | Assembly, Knob (Replaces: W11709754) |
|
$ 43.11 | |||||
| 4 | W11752156 | Handle, Drawer (white) (Replaces: W11709750) |
|
- | |||||
| 5 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 83.10 | ||||
| 6 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 7 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.02 | |||||
| 8 | W11314678 | Bracket, Console (Replaces: W10915381) |
|
$ 148.59 | |||||
| 9 | W11458348 | Channel, Water (Replaces: W10796898) |
|
- | |||||
| 10 | W11747097 | Panel, Front (white) (Replaces: W11710567) |
|
$ 335.79 | |||||
| 11 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 7.82 | ||||
| 12 | W11742046 | Hinge Assembly (Replaces: W11668720) |
|
Immediately | $ 154.58 | ||||
| 13 | W11747862 | Bracket, Hinge (Replaces: W11715541) |
|
$ 48.32 | |||||
| 14 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.03 | |||||
| 15 | W11733849 | Lock, Door (Replaces: W11670890) |
|
Immediately | $ 70.43 | ||||
| 16 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 11.56 | |||||
| 17 | W11352995 | Cabinet (white) |
|
Immediately | $ 500.14 | ||||
| 18 | W11675697 | Leveling Leg Assembly (Replaces: W11604388) |
|
$ 13.53 | |||||
| 19 | W11675698 | Nut, Hex (Replaces: W11599138) |
|
$ 12.92 | |||||
| 20 | W11316246 | Pressure Switch (Replaces: W11125159) |
|
Immediately | $ 103.04 | ||||
| 21 | W11456953 | Hose, Pressure Switch (Replaces: W11319791) |
|
Immediately | $ 33.24 | ||||
| 22 | W11689659 | Rfi Filter (Replaces: W11533492) |
|
Immediately | $ 21.42 | ||||
| 23 | W11316769 | Bracket, Drain Hose (Replaces: W11091443) |
|
Immediately | $ 21.04 | ||||
| 24 | W11747037 | Appliance Control Unit (acu) (Replaces: W11742381) |
|
Immediately | $ 463.31 | ||||
| 25 | W10306501 | Screw |
|
- | |||||
| 26 | W11746648 | Harness, Hmi (Replaces: W11719455) |
|
- | |||||
| 27 | W11747093 | Harness, Main (Replaces: W11722227) |
|
Immediately | $ 190.06 | ||||
| 28 | W10467484 | Brace, Top |
|
$ 42.84 | |||||
| 29 | W11846996 | Retainer, Spring (Replaces: W10245452) |
|
- | |||||
| 30 | W11314674 | Foam Pad (Replaces: W10331064) |
|
$ 18.95 | |||||
| 31 | W11353016 | Bracket, Rear |
|
$ 23.73 | |||||
| 32 | WPW10208373 | Top (white) (Replaces: W10208373) |
|
$ 320.46 | |||||
| 33 | W11315708 | Panel, Rear (Replaces: W11046440) |
|
$ 383.53 | |||||
| 34 | W11316254 | Cord, Power (Replaces: W10919946) |
|
Immediately | $ 128.10 | ||||
| 35 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 36 | W11551765 | Hose, Drain (external) (Replaces: W11392677) |
|
Immediately | $ 20.82 | ||||
| 37 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 79.53 | |||||
| 38 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 39 | WPW10339879 | Cable Tie (Replaces: W10267532) |
|
$ 7.90 | |||||
| 40 | W11316631 | Bolt, Transport (long) (Replaces: W11041287) |
|
$ 40.52 | |||||
| 41 | W11316629 | Bolt, Transport (short) (Replaces: W11041011) |
|
$ 41.65 | |||||
| 42 | W11316770 | Edge Guard (Replaces: W10407376) |
|
- | |||||
| 43 | W10208380 | Screw And Bushing Assembly |
|
$ 69.03 | |||||
| 1A | W11712042 | Quick Start Guide |
|
- | |||||
| 1B | W11737329 | Energy Guide |
|
- |
