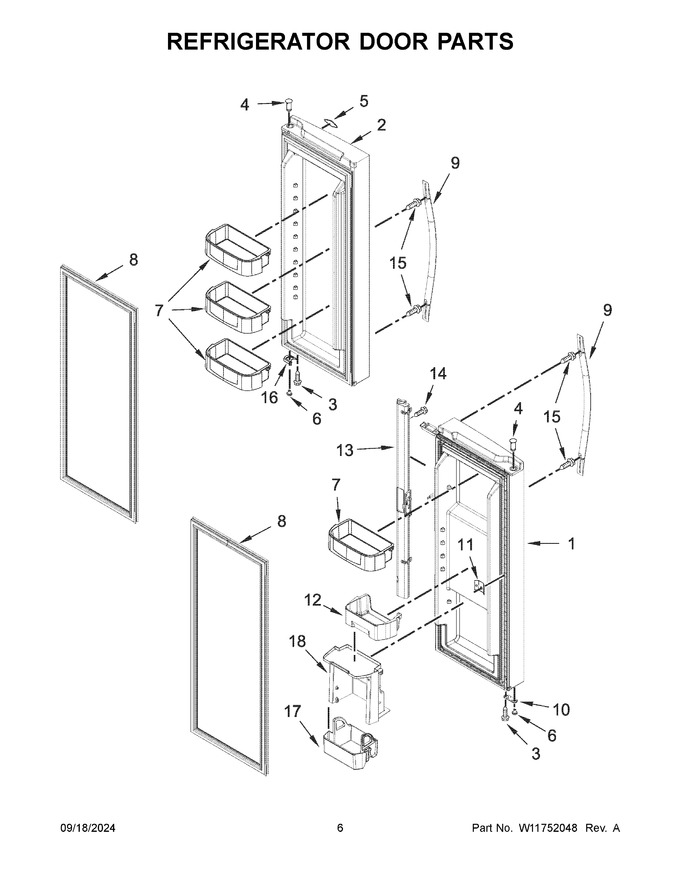

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner And Icemaker Parts
04 - Refrigerator Door Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10858415 | Door, Left (includes #8) (stainless) (Replaces: W10858415) |
|
$ 824.16 | |||||
| 2 | LW10858417 | Door, Right (includes #8) (stainless) (Replaces: W10858417) |
|
$ 756.26 | |||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 4 | W11544568 | Thimble, Top (Replaces: W10366270) |
|
Immediately | $ 12.56 | ||||
| 5 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 6 | WPW10470155 | Closure, Door (Replaces: W10470155) |
|
Immediately | $ 6.80 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 69.93 | ||||
| 8 | WPW10460580 | Gasket, Door (grey) (Replaces: W10413468) |
|
Immediately | $ 241.88 | ||||
| 9 | W11123099 | Handle Assembly (stainless) (Replaces: W11101971) |
|
Immediately | $ 171.40 | ||||
| 10 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 11 | WP939101 | Screw Anchor (Replaces: 939101) |
|
$ 7.09 | |||||
| 12 | WPW10326335 | Bin, Shallow (Replaces: W10326335) |
|
Immediately | $ 58.31 | ||||
| 13 | WPW10624450 | Assembly, Flipper Mullion (grey) (Replaces: W10624450) |
|
Immediately | $ 214.00 | ||||
| 14 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.11 | |||||
| 15 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 16 | WPW10397055 | Bracket, Door Stop (Replaces: W10397055) |
|
Immediately | $ 33.25 | ||||
| 17 | W11106787 | Caddy, Condiment (Replaces: W10462299) |
|
Immediately | $ 96.28 | ||||
| 18 | WPW10317224 | Compartment, Utility (Replaces: W10317224) |
|
$ 93.42 |
