01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

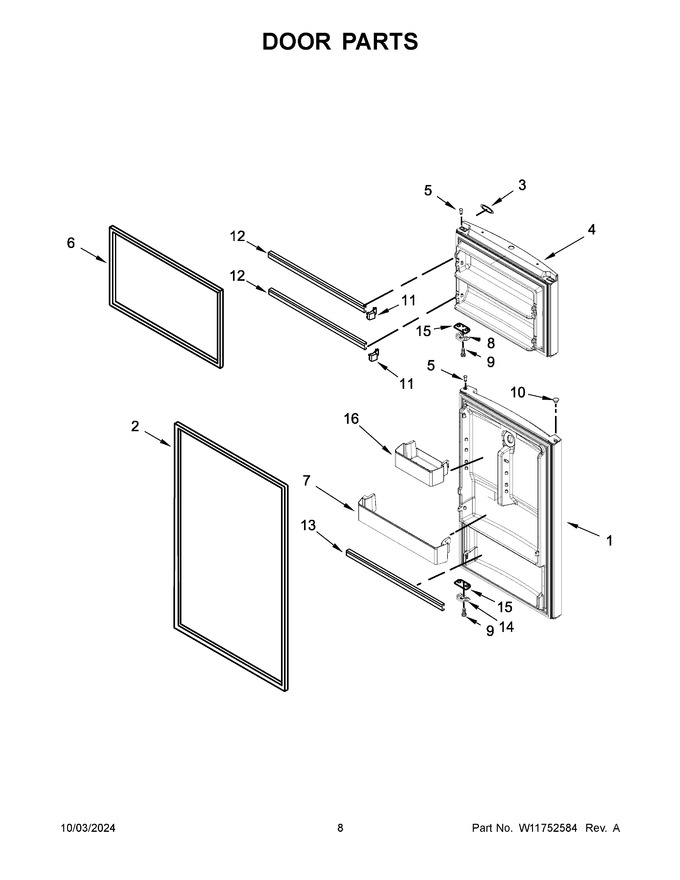

| 1 | W11504212 | Refrigerator Door (includes Illustration 2) (black Stainless) (Replaces: W11440370) |
|
$ 1,160.09 | |||||
| 2 | WP2319264B | Gasket, Door (black) (Replaces: 2264723) |
|
$ 323.85 | |||||
| 3 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 4 | W11504213 | Freezer Door (includes Illustration 6) (black Stainless) (Replaces: W11440368) |
|
Immediately | $ 612.23 | ||||
| 5 | W11189115 | Thimble (black) (Replaces: W10334042) |
|
$ 12.71 | |||||
| 6 | WP2319263B | Gasket, Door (black) (Replaces: W10843447) |
|
$ 268.28 | |||||
| 7 | W11230940 | Trivet (Replaces: W10805892) |
|
$ 98.68 | |||||
| 8 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 9 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 10 | WP2212651 | Plug, Hole (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 11 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 12 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 120.57 | ||||
| 13 | WPW10234241 | Trim, Door Shelf (Replaces: W10234241) |
|
Immediately | $ 122.35 | ||||
| 14 | W10492012 | Bracket, Door Stop |
|
$ 16.85 | |||||
| 15 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 16 | W11190821 | Movable, Bin (Replaces: W10805890) |
|
$ 161.02 |
