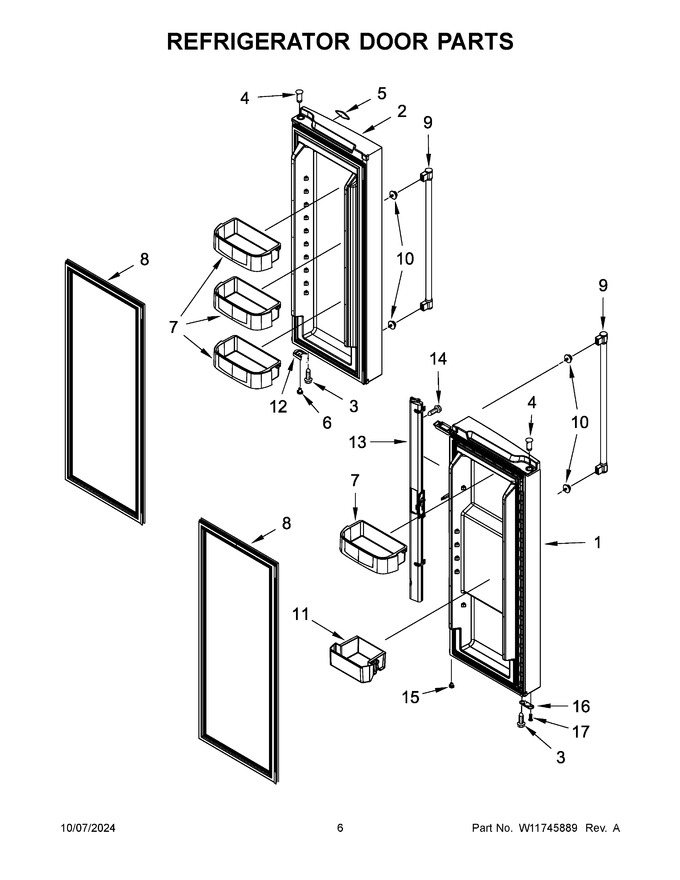

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11596855 | Door, Refrigerator (includes Illustration 8) Left Hand (stainless) (Replaces: W11525215) |
|
$ 1,384.03 | |||||
| 2 | LW10858417 | Door, Refrigerator (includes Illustration 8) Right Hand (stainless) (Replaces: W10858417) |
|
$ 840.29 | |||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11544568 | Thimble, Top (upper) (Replaces: W10366270) |
|
Immediately | $ 13.95 | ||||
| 5 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 6 | WPW10470155 | Closure, Door (Replaces: W10470155) |
|
Immediately | $ 7.55 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 72.18 | ||||
| 8 | WPW10460580 | Gasket, Door (grey) (Replaces: W10413468) |
|
Immediately | $ 221.51 | ||||
| 9 | W10879677 | Handle (stainless) (Replaces: W10838130) |
|
Immediately | $ 215.42 | ||||
| 10 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 11 | WPW10326335 | Bin, Shallow (Replaces: W10326335) |
|
Immediately | $ 58.46 | ||||
| 12 | WPW10397055 | Bracket, Door Stop (right Hand) (Replaces: W10397055) |
|
Immediately | $ 36.94 | ||||
| 13 | WPW10624450 | Assembly, Mullion (grey) (Replaces: W10624450) |
|
Immediately | $ 223.83 | ||||
| 14 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 15 | WP67002731 | Bushing, Door (bottom-right) (black) (Replaces: 12028601B) |
|
Immediately | $ 8.24 | ||||
| 16 | W11745278 | Bracket, Door Stop (left Hand) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 17 | W11189115 | Black (lower) (Replaces: W10334042) |
|
$ 12.71 |
