SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Cabinet/top

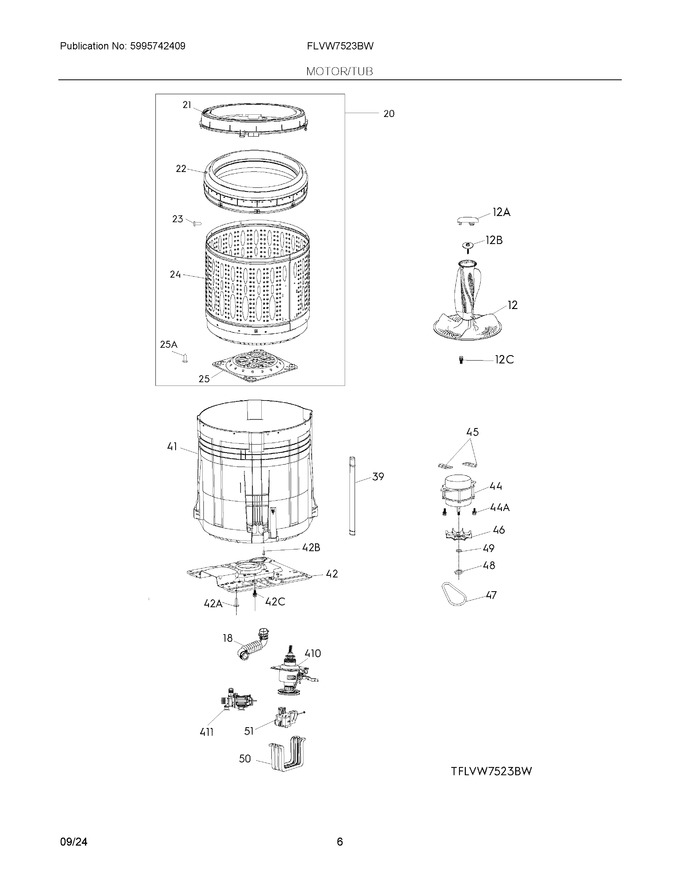

04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5304538566		Agitator, Assembly			Immediately	$ 63.61
18	5304538571		Hose, Assembly		Appelez-nous	-
20	5304538552		Tub, Assembly, Complete				$ 165.65
21	5304538548		Cover, Tub, Outer		Appelez-nous	-
22	5304538554		Balance Ring, Assembly			Immediately	$ 97.19
23	5304538556		Screw		Appelez-nous	-
24	5304538558		Tub, Assembly, Stainless		Appelez-nous	-
25	5304538562		Plate, Coupling			Immediately	$ 59.24
39	5304538574		Hose, Overflow				$ 3.88
41	5304538568		Tub, Assembly Outer		Appelez-nous	-
42	5304538569		Plate, Base, Outer Tub		Appelez-nous	-
44	5304538577		Motor, Single Phase				$ 159.21
45	5304538576		Cushion, Motor Mtg, Lower		Appelez-nous	-
46	5304538579		Pulley, Motor			Immediately	$ 16.18
47	5304538535		Belt, Ribbed			Immediately	$ 14.89
48	5304535306		Nut, Speed & Tinner				$ 1.30
49	5304538580		Washer, Spring				$ 0.70
50	5304538573		Bracket, Clutch Mtg		Appelez-nous	-
51	5304511361		Retractor, Drain Pump				$ 145.50
410	5304538572		Clutch Body, Assembly			Immediately	$ 271.05
411	5304538549		Pump, Synchronous			Immediately	$ 167.66
12A	5304538564		Cover, Muddler		Appelez-nous	-
12B	5304538565		Bolt, Washer		Appelez-nous	-
12C	5304538567		Bolt, Washer			Immediately	$ 1.84
25A	5304538560		Screw		Appelez-nous	-
42A	5304538570		Screw		Appelez-nous	-
42B	5304538575		Screw		Appelez-nous	-
42C	5304527607		Screw, W/ Bolts		Appelez-nous	-
44A	5304538578		Bolt, Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
