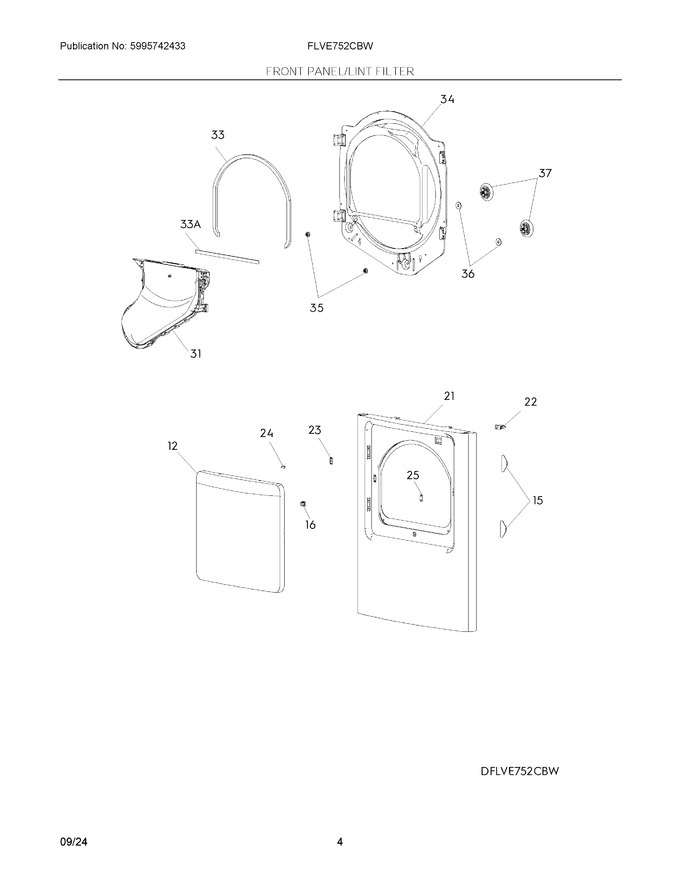

03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5304538499		Door, Outer				$ 147.62
15	5304538498		Door Hinge Cover		Appelez-nous	-
16	5304511402		Catch, Door Latch				$ 31.37
21	5304538500		Panel, White, Front			Immediately	$ 132.56
22	5304511404		Switch, Door				$ 43.38
23	5304511405		Cover, Front Panel				$ 10.85
24	5304511406		Pin, Door Catch				$ 21.69
25	5304511407		Cover, Front Panel		Appelez-nous	-
31	5304538041		Flue Assembly, Air, Front				$ 101.48
33	5304538501		Gasket, Front Panel		Appelez-nous	-
34	5304538502		Support, Assembly, Front Panel		Appelez-nous	-
35	5304511425		Nut, Wheel				$ 12.44
36	5304511414		Washer, Flat Gasket, Wheel		Appelez-nous	-
37	5304511426		Wheel, Blower				$ 83.33
33A	5304511411		Gasket, Front Panel			Immediately	$ 14.46
