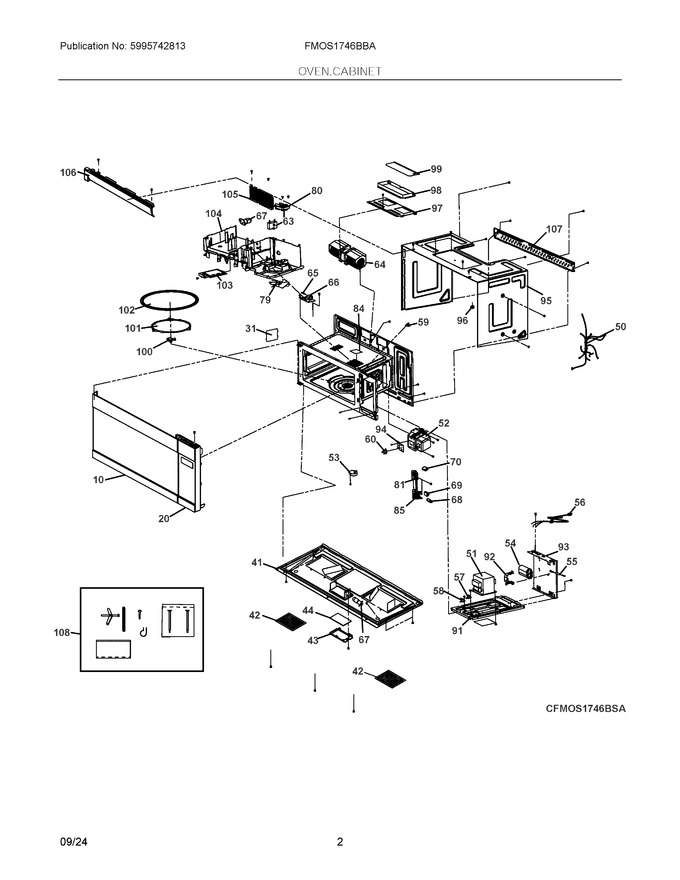

02 - Oven,cabinet
03 - Control Panel, Door, Misc.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 5304538407 | Door Assembly, Complete, Black |
|
- | |||||
| 20 | 5304538409 | Control Panel, Assembly, Black |
|
- | |||||
| 31 | 5304523276 | Cover, Wave Guide |
|
Immediately | $ 13.35 | ||||
| 41 | 5304509417 | Base, Unit Chassis |
|
$ 232.94 | |||||
| 42 | 5304517871 | Filter, Grease |
|
Immediately | $ 29.90 | ||||
| 43 | 5304509441 | Frame, Lens Holder |
|
- | |||||
| 44 | 5304509443 | Lens, Cooktop Lamp, Glass |
|
- | |||||
| 50 | 5304536596 | Harness, Wiring, Main |
|
- | |||||
| 51 | 5304509476 | Transformer, High Voltage |
|
$ 489.29 | |||||
| 52 | 5304534938 | Magnetron |
|
$ 172.17 | |||||
| 53 | 5304534939 | Motor, Turntable |
|
- | |||||
| 54 | 5304523278 | Capacitor, High Voltage |
|
Immediately | $ 83.64 | ||||
| 55 | 5304515185 | Diode, High Voltage |
|
Immediately | $ 28.70 | ||||
| 56 | 5304534941 | Power Cord, Electric Service |
|
- | |||||
| 57 | 5304513462 | Thermostat, 120/0 *v |
|
Immediately | $ 28.38 | ||||
| 58 | 5304513463 | Thermostat, 70/40 *v |
|
$ 29.99 | |||||
| 59 | 5304515178 | Thermostat, Cutout, Oven Cavity |
|
Immediately | $ 31.70 | ||||
| 60 | 5304513461 | Thermostat, 160/95 *v |
|
Immediately | $ 29.94 | ||||
| 63 | 5304509453 | Capacitor, Start |
|
$ 141.75 | |||||
| 64 | 5304536597 | Blower Assembly, Venting |
|
- | |||||
| 65 | 5304509451 | Fuse |
|
Immediately | $ 14.45 | ||||
| 66 | 5304525109 | Filter, Noise, Electronic |
|
$ 95.55 | |||||
| 67 | 5304519338 | Lamp Assembly, Incandescent |
|
$ 25.44 | |||||
| 68 | 5304509460 | Switch, Interlock, Primary |
|
Immediately | $ 50.30 | ||||
| 69 | 5304520021 | Microswitch, Monitor |
|
Immediately | $ 18.53 | ||||
| 70 | 5304509460 | Microswitch, Secondary (Replaces: 5304520020) |
|
Immediately | $ 50.30 | ||||
| 79 | 5304519350 | Blade, Fan |
|
$ 18.80 | |||||
| 80 | 5304536598 | Motor, Fan |
|
$ 56.84 | |||||
| 81 | 5304536599 | Bracket, Interlock |
|
- | |||||
| 84 | 5304515181 | Seal, Lamp, Mylar Film |
|
- | |||||
| 85 | 5304509458 | Lever, Switch |
|
Immediately | $ 11.30 | ||||
| 91 | 5304536600 | Plate, Hv Transformer |
|
- | |||||
| 92 | 5304509477 | Retainer, Capacitor Strap |
|
- | |||||
| 93 | 5304523283 | Deflector, Air Guide |
|
- | |||||
| 94 | 5304515183 | Thermostat, Assembly, W/bracket |
|
Immediately | $ 32.88 | ||||
| 95 | 5304523284 | Wrapper, Outer Cabinet, Black |
|
Immediately | $ 149.40 | ||||
| 96 | 5304509436 | Mounting Nut Kit |
|
Immediately | $ 16.34 | ||||
| 97 | 5304513481 | Cover, Vent Motor |
|
$ 57.09 | |||||
| 98 | 5304509485 | Adapter, Exhaust, Damper Frame |
|
Immediately | $ 28.13 | ||||
| 99 | 5304509486 | Damper, Door, Exhaust Adapter |
|
Immediately | $ 30.81 | ||||
| 100 | 5304520014 | Coupler, Turntable Tray |
|
- | |||||
| 101 | 5304509438 | Support, Turntable Ring |
|
$ 58.00 | |||||
| 102 | 5304525313 | Tray, Turntable |
|
$ 145.76 | |||||
| 103 | 5304509450 | Cover, Lamp, Oven Cavity |
|
$ 20.69 | |||||
| 104 | 5304536601 | Air Duct, Assembly |
|
- | |||||
| 105 | 5304509456 | Cover, Control Shield, Right |
|
$ 21.69 | |||||
| 106 | 5304536602 | Grill, Vent |
|
- | |||||
| 107 | 5304509487 | Plate, Wall Mounting, Rear |
|
Immediately | $ 66.25 | ||||
| 108 | 5304513469 | Mounting Kit, W/templates |
|
Immediately | $ 69.31 |
