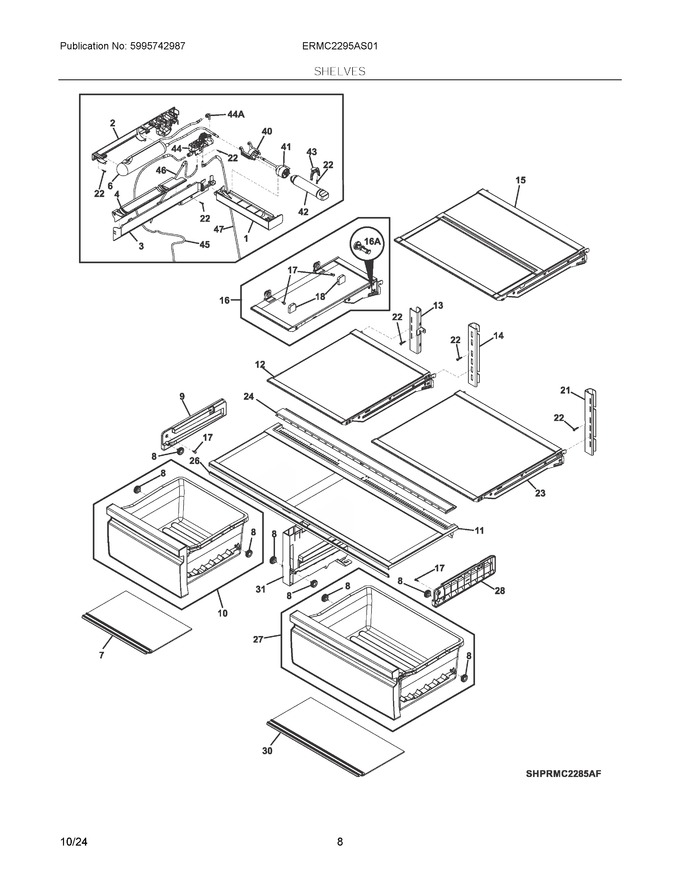

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304523114		Cover, Water Filter, Gray		Appelez-nous	-
2	5304529601		Support, Water Valve, & Tank   (Replaces: 5304523034)				$ 24.43
3	5304523035		Cover, Water Tank		Appelez-nous	-
4	5304523036		Insulation, Water Tank				$ 22.10
6	5304523037		Tank, Water, Disp Reservoir				$ 199.76
7	5304523038		Cover, Mullion Storage, Glass, Lh				$ 113.74
8	5304523115		Roller, Crisper Glide, Gray				$ 25.28
9	5304523116		Rail, Crisper, Gray, Lh Side				$ 43.31
10	5304523117		Drawer Assembly, Crisper, Lh, W/rollers				$ 158.03
11	5304531896		Cover Assembly, Crispers, W/glass   (Replaces: 5304523118)				$ 140.32
12	5304523119		Shelf Assembly, Cantilever, Glass, Gray, Lh		Appelez-nous	-
13	5304523042		Bracket, Cantilever Shlf, Grey, Lh		Appelez-nous	-
14	5304523043		Bracket, Cantilever Shlf, Grey, Center		Appelez-nous	-
15	5304523120		Shelf Assembly, Cantilever, Glass, Gray, Upper, Slide Under		Appelez-nous	-
16	5304523121		Shelf Assembly, Flip Up, Glass, Gray, Lh		Appelez-nous	-
17	241641507		Screw, Hilo Phil Pn, 8-18 X 1/2, Gray		Appelez-nous	-
18	5304523122		Cover, Screw, Gray, Small		Appelez-nous	-
21	5304523046		Bracket, Cantilever Shlf, Grey, Rh		Appelez-nous	-
22	811949503		Screw, Truss, 4.2 X 13				$ 3.37
23	5304523123		Shelf Assembly, Cantilever, Glass, Gray, Rh		Appelez-nous	-
24	5304523048		Housing Assembly, Auto Humidity, W/membrane				$ 73.31
26	5304519140		Gasket, Crisper Cover, Gray   (Replaces: 5304523124)				$ 26.64
27	5304523125		Drawer Assembly, Crisper, Rh, W/rollers			Immediately	$ 172.91
28	5304523126		Rail, Crisper, Gray, Rh Side		Appelez-nous	-
30	5304523050		Cover, Mullion Storage, Glass, Rh				$ 125.76
31	5304532661		Divider, Crisper Cover, Gray   (Replaces: 5304523127)				$ 67.41
40	5304531743		Guide, Filter Manifold   (Replaces: 5304519145)				$ 4.39
41	5304533202		Manifold, Water Filter, W/water Line, To Main Valve   (Replaces: 5304522682)			Immediately	$ 50.61
42	EWF02		Filter Assembly, Puresource U-ii, W/cap   (Replaces: 807946704)		Appelez-nous	-
43	5304519148		Holder, Water Filter				$ 12.05
44	5304523052		Water Valve, Assembly, Triple			Immediately	$ 262.73
45	5304523683		Tubing, Valve, To Door Hinge		Appelez-nous	-
46	5304534783		Tubing, Valve, To Ff Ice Maker   (Replaces: 5304523684)				$ 11.91
47	5304523685		Tubing, Valve, To Fz Ice Maker				$ 61.68
16A	5304523825		Pin, Interlock, Gray, Flip Up Shelf		Appelez-nous	-
44A	5304523053		Connector, Tubing, Quick Connect			Immediately	$ 28.82
NI	242200102		Clip, Tubing, 90 Deg Elbow				$ 11.81
