SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls

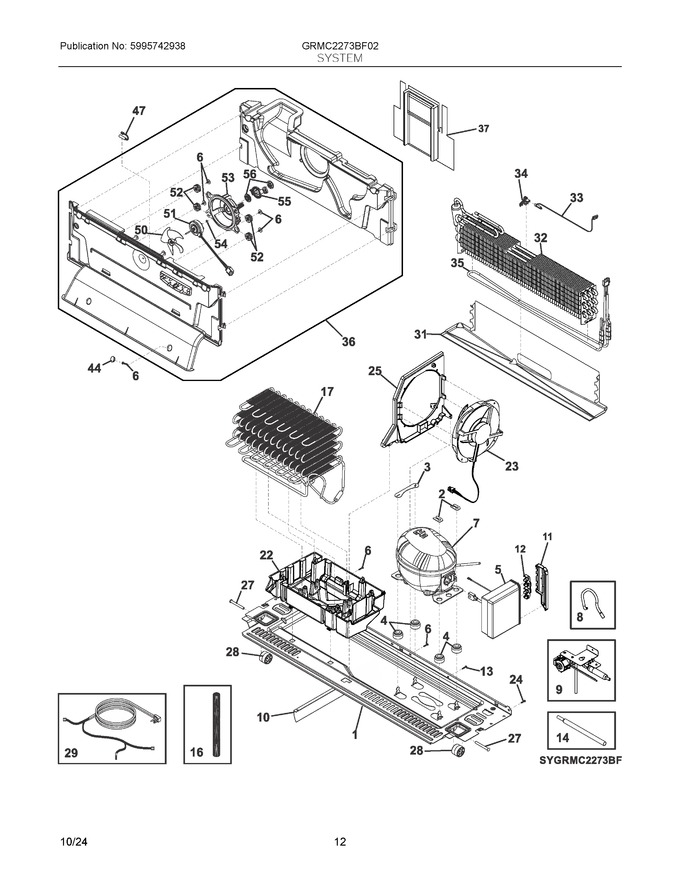

07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304519151		Base, Compressor Assy				$ 146.62
2	5304519152		Clamp, Compressor, Single Hole		Appelez-nous	-
3	5304524607		Clamp, Compressor, 2 Hole   (Replaces: 811998601)				$ 3.21
4	811978901		Grommet, Compressor		Appelez-nous	-
5	5304523061		Control Assembly, Flex Drive			Immediately	$ 380.42
6	811949503		Screw, Truss, 4.2 X 13				$ 3.37
7	5304523062		Compressor, Assembly, Vnd1113y			Immediately	$ 857.01
8	5304526794		Tube, Suction			Immediately	$ 45.11
9	5304529531		Step Valve, Assembly, W/filter Drier			Immediately	$ 207.24
10	5304523064		Flap Bracket, Compressor Base		Appelez-nous	-
11	5304526792		Cover, Flex Drive, Side, Compressor				$ 19.86
12	5304526793		Clamp, Flex Drive, Cable				$ 10.11
13	5304519110		Screw, Trilob, M3 X 6				$ 3.37
14	5304523065		Tubing, Extra, Refrigerant				$ 17.86
16	5304519156		Drain Tube, Corrugated				$ 6.74
17	5304538286		Condenser Assembly, Dynamic   (Replaces: 5304519157)			Immediately	$ 211.68
22	5304529527		Drain Pan, Condenser				$ 32.94
23	5304525730		Fan Assembly, Condenser				$ 115.67
24	808199001		Screw, Self Tapping, 6 X 20				$ 7.88
25	5304529530		Shroud, Condenser Fan				$ 18.60
27	811998302		Shaft, Cabinet Roller				$ 11.80
28	811666601		Roller, Cabinet				$ 10.11
29	5304538934		Power Cord, Electric   (Replaces: 5304519161)				$ 61.53
31	5304519162		Drain Trough, Evaporator, Freezer		Appelez-nous	-
32	5304529535		Evaporator, Assembly, Freezer			Immediately	$ 177.18
33	5303918851		Thermostat Kit, Defrost, W/connectors			Immediately	$ 40.83
34	811980406		Clamp, Ntc, Evaporator   (Replaces: 811980402)				$ 4.66
35	140159197049		Heater, Defrost, Evaporator   (Replaces: 5304523054)			Immediately	$ 114.71
36	5304523067		Cover Assembly, Evaporator, Freezer, W/fan Assy			Immediately	$ 157.21
37	5304529534		Duct, Air Return		Appelez-nous	-
44	5304524004		Cover, Screw Hole, White			Immediately	$ 5.63
47	5303918775		Thermistor Kit, Temperature, Ntc, W/connectors			Immediately	$ 26.38
50	811699604		Blade, Evaporator Fan   (Replaces: 811699602)			Immediately	$ 4.66
51	809069207		Motor, Fan, Frz Evaporator			Immediately	$ 165.31
52	5304519174		Grommet, Fan Shround, Freezer		Appelez-nous	-
53	5304519175		Shroud, Fan, Freezer				$ 14.18
54	5304519176		Washer, Slinger, Nylon				$ 3.37
55	5304519177		Clip, Retainer				$ 9.27
56	5304519178		Grommet, Fan Mounting			Immediately	$ 8.43
NI	811950601		Seal, 6x8, Foam Tape, 154" Roll		Appelez-nous	-
NIA	5304529528		Foam Insulation, Dyco Tube		Appelez-nous	-
NIA	5304523068		Washer, Fan Grommet		Appelez-nous	-
NIA	5304529529		Grommet, Dyco Tube		Appelez-nous	-
NIA	5304523687		Sticker, Plastic Cap, White		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
