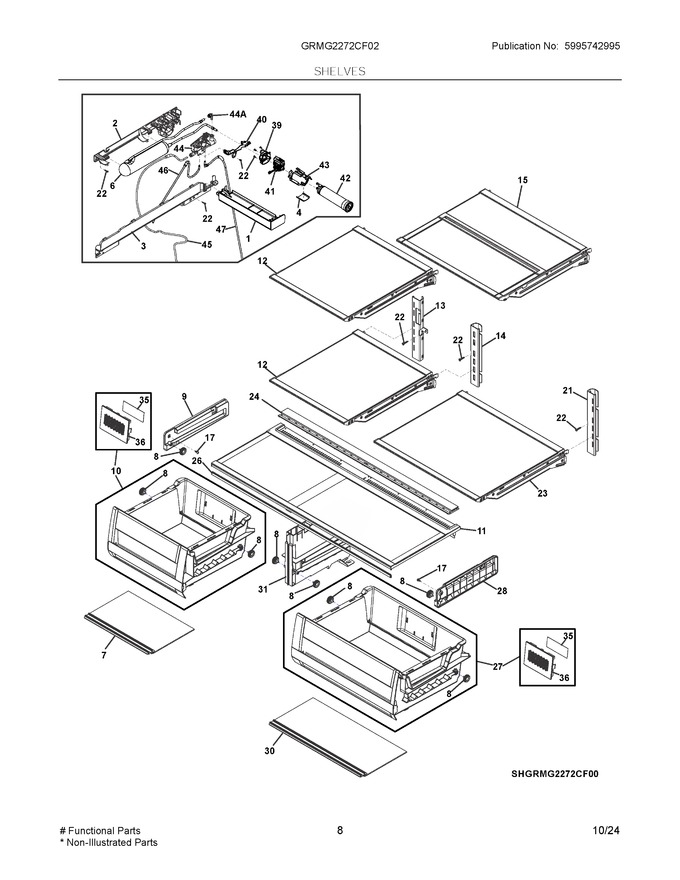

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304529551 | Cover, Filter Facia |
|
$ 67.15 | |||||
| 2 | 5304529601 | Support, Water Valve, & Tank |
|
$ 24.43 | |||||
| 3 | 5304529604 | Cover, Water Tank |
|
- | |||||
| 4 | 5304529552 | Seal, Foam, 37 X 70mm |
|
- | |||||
| 6 | 5304523037 | Tank, Water, Disp Reservoir |
|
$ 199.76 | |||||
| 7 | 5304519123 | Cover, Mullion Storage, Glass, Lh |
|
$ 39.71 | |||||
| 8 | 5304519124 | Roller, Crisper Glide |
|
$ 18.71 | |||||
| 9 | 5304519125 | Rail, Crisper, Lh Side |
|
- | |||||
| 10 | 5304529585 | Drawer Assembly, Crisper, Lh, W/rollers |
|
$ 154.88 | |||||
| 11 | 5304531895 | Cover Assembly, Crisper, W/glass |
|
$ 113.36 | |||||
| 12 | 5304523041 | Shelf Assembly, Cantilever, Glass, Lh |
|
$ 316.83 | |||||
| 13 | 5304529598 | Bracket, Cantilever Shlf, Lh |
|
- | |||||
| 14 | 5304519130 | Bracket, Cantilever Shlf, Center |
|
$ 58.28 | |||||
| 15 | 5304523044 | Shelf Assembly, Cantilever, Glass, Upper |
|
$ 276.60 | |||||
| 17 | 241641505 | Screw, Hilo Phil Pn, .5", White |
|
- | |||||
| 21 | 5304519136 | Bracket, Cantilever Shlf, Rh |
|
$ 59.85 | |||||
| 22 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.37 | |||||
| 23 | 5304523047 | Shelf Assembly, Cantilever, Glass, Rh |
|
$ 312.62 | |||||
| 24 | 5304523048 | Housing Assembly, Auto Humidity, W/membrane |
|
$ 73.31 | |||||
| 26 | 5304519140 | Gasket, Crisper Cover |
|
$ 26.64 | |||||
| 27 | 5304537361 | Drawer Assembly, Crisper, Rh, W/rollers (Replaces: 5304529584) |
|
$ 144.54 | |||||
| 28 | 5304519142 | Rail, Crisper, Rh Side |
|
$ 21.91 | |||||
| 30 | 5304519143 | Cover, Mullion Storage, Glass, Rh |
|
Immediately | $ 51.30 | ||||
| 31 | 5304532661 | Divider, Crisper Cover |
|
$ 67.41 | |||||
| 35 | FRPAPK2RF | Frigidaire Pa Pk-2 Refill |
|
Immediately | $ 35.71 | ||||
| 36 | 5304529586 | Cover, Freshness Boost |
|
$ 19.28 | |||||
| 39 | 5304536610 | Cover, Manifold, Rear (Replaces: 5304529548) |
|
$ 3.26 | |||||
| 40 | 5304529545 | Guide, Water Tube |
|
Immediately | $ 20.28 | ||||
| 41 | 140156010062 | Manifold, Water Filter (Replaces: 5304529546) |
|
Immediately | $ 60.64 | ||||
| 42 | FPPWFU02 | Frig Purepour Wf-2 Connectors |
|
Immediately | $ 98.67 | ||||
| 43 | 5304529547 | Cover, Manifold, Front |
|
$ 72.50 | |||||
| 44 | 5304529602 | Water Valve, Assembly, Double |
|
$ 166.95 | |||||
| 45 | 5304529603 | Tubing, Side Dispenser, Door |
|
$ 37.92 | |||||
| 46 | 5304523685 | Tubing, Valve, To Fz Ice Maker |
|
$ 61.68 | |||||
| 47 | 5304529549 | Tube, Water |
|
Immediately | $ 25.62 | ||||
| 44A | 5304523053 | Connector, Tubing, Quick Connect |
|
Immediately | $ 28.82 | ||||
| NI | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 11.81 | |||||
| NIA | 5304519098 | Screw, Trilob, M4 X 12 |
|
$ 3.37 | |||||
| NIA | 5304529553 | Seal, Foam, Inlet Tube |
|
- |
