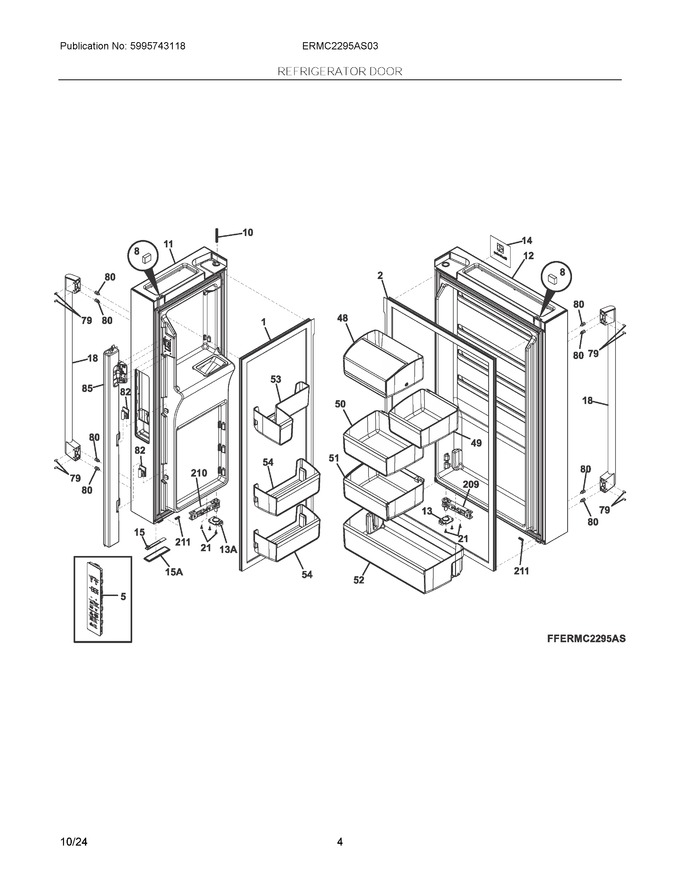

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 811988597 | Gasket, Door, Gray, Lh Fresh Food |
|
$ 75.60 | |||||
| 2 | 811988598 | Gasket, Door, Gray, Rh Fresh Food |
|
- | |||||
| 5 | 5304523096 | Control Assembly, User Interface, Gray, Door Side |
|
Immediately | $ 329.41 | ||||
| 8 | 5304519044 | Magnet, Reed Switch |
|
Immediately | $ 21.06 | ||||
| 10 | 5304519067 | Spring, Tube Protection |
|
Immediately | $ 11.80 | ||||
| 11 | 5304534502 | Door Assembly, Outer, Stainless, Lh Fresh Food, Disp Side (Replaces: 5304523097) |
|
$ 688.60 | |||||
| 12 | 5304534044 | Door Assembly, Outer, Stainless, Rh Fresh Food (Replaces: 5304523098) |
|
Immediately | $ 613.47 | ||||
| 13 | 5304519070 | Stop, Assembly, Rh Door |
|
$ 16.01 | |||||
| 14 | 5304523099 | Badge, Electrolux, Chrome |
|
- | |||||
| 15 | 5304523011 | Light Board, 3 Led Cluster, 6500k |
|
Immediately | $ 54.28 | ||||
| 18 | 5304523100 | Handle, Door, Stainless, Fresh Food |
|
$ 289.80 | |||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 48 | 5304523022 | Bin Assembly, Flex, Door, Dairy |
|
$ 97.46 | |||||
| 49 | 5304523023 | Bin, Flex, 1/3 Width, Door |
|
$ 87.77 | |||||
| 50 | 5304523024 | Bin, Flex, 2/3 Width, Door |
|
$ 96.69 | |||||
| 51 | 5304538425 | Bin Assembly, Flex, Door, Slide Adjust (Replaces: 5304523025) |
|
$ 89.17 | |||||
| 52 | 5304523026 | Bin, Fixed, Door Bottom |
|
$ 131.27 | |||||
| 53 | 5304523027 | Bin, Fixed, Small, Door, Ice Chute |
|
- | |||||
| 54 | 5304523028 | Bin, Fixed, Lh Door |
|
Immediately | $ 86.49 | ||||
| 79 | 5304523101 | Screw, Set, 10-32, Handle |
|
$ 9.27 | |||||
| 80 | 5304519063 | Screw, Handle Mounting |
|
Immediately | $ 12.75 | ||||
| 82 | 5304523102 | Hinge, Flip Mullion, Gray |
|
- | |||||
| 85 | 5304523103 | Mullion Assembly, Flip, Gray, W/heater |
|
$ 301.67 | |||||
| 209 | 5304526201 | Closer Assembly, Door, Rh, Mechanical (Replaces: 5304508014) |
|
Immediately | $ 94.36 | ||||
| 210 | 5304526202 | Closer Assembly, Door, Lh, Mechanical (Replaces: 5304508015) |
|
Immediately | $ 109.27 | ||||
| 211 | 5304519083 | Bumper, Door, Bottom |
|
- | |||||
| 13A | 5304519071 | Stop, Assembly, Lh Door |
|
$ 16.07 | |||||
| 15A | 5304519049 | Lens, Led Light |
|
$ 11.80 | |||||
| NI | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 11.81 | |||||
| NIA | 241641507 | Screw, Hilo Phil Pn, 8-18 X 1/2, Gray |
|
- | |||||
| NIB | 5304519082 | Heater, Flip Mullion |
|
$ 67.73 |
