01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts

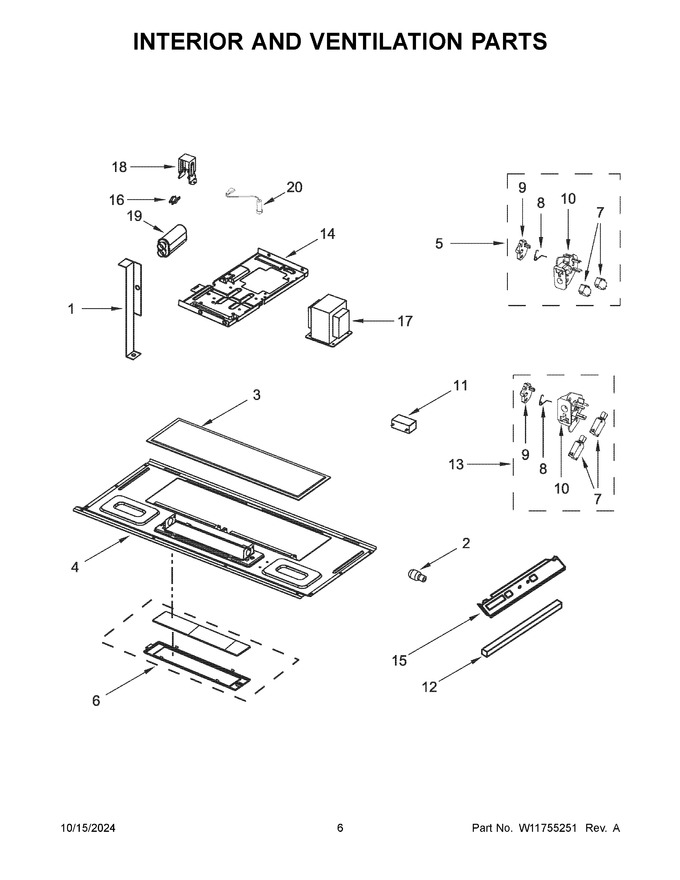

04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10313275 | Bracket, Top Cavity |
|
$ 35.62 | |||||
| 2 | W11520384 | Lamp, Halogen |
|
Immediately | $ 10.41 | ||||
| 3 | W10208631A | Filter, Grease (Replaces: W10208631) |
|
Immediately | $ 32.59 | ||||
| 4 | W11450485 | Plate, Bottom |
|
$ 62.97 | |||||
| 5 | W11753209 | Interlock (Replaces: W11710397) |
|
Immediately | $ 67.76 | ||||
| 6 | W10240330 | Assembly, Lamp Glass And Holder |
|
$ 7.55 | |||||
| 7 | ARI0D21584639E823BFBB5C96AA1C5530CB | Switches, Interlock (not Serviced, Order Interlock Assemblies) |
|
- | |||||
| 8 | W10604374 | Spring, Interlock |
|
- | |||||
| 9 | W10562613 | Plate, Cam |
|
Immediately | $ 17.83 | ||||
| 10 | WP8206419 | Support, Interlock (top) (Replaces: 8206419) |
|
Immediately | $ 22.37 | ||||
| 11 | W11405832 | Capacitor, Hood Motor |
|
$ 28.60 | |||||
| 12 | W10571179 | Seal, Cooling |
|
- | |||||
| 13 | W11753210 | Interlock (Replaces: W11710399) |
|
Immediately | $ 67.76 | ||||
| 14 | W11520831 | Chassis |
|
Immediately | $ 65.88 | ||||
| 15 | W11521327 | Support, Ntc |
|
$ 65.92 | |||||
| 16 | W11574181 | Thermostat, Cavity (Replaces: W11397274) |
|
Immediately | $ 43.63 | ||||
| 17 | W11664257 | Transformr |
|
$ 152.89 | |||||
| 18 | W10532063 | Bracket, Capacitor |
|
$ 29.69 | |||||
| 19 | W11846984 | Capacitor, High Voltage (Replaces: W10345331) |
|
$ 50.02 | |||||
| 20 | W11256462 | Diode, High Voltage (Replaces: W11222648) |
|
Immediately | $ 34.86 |
