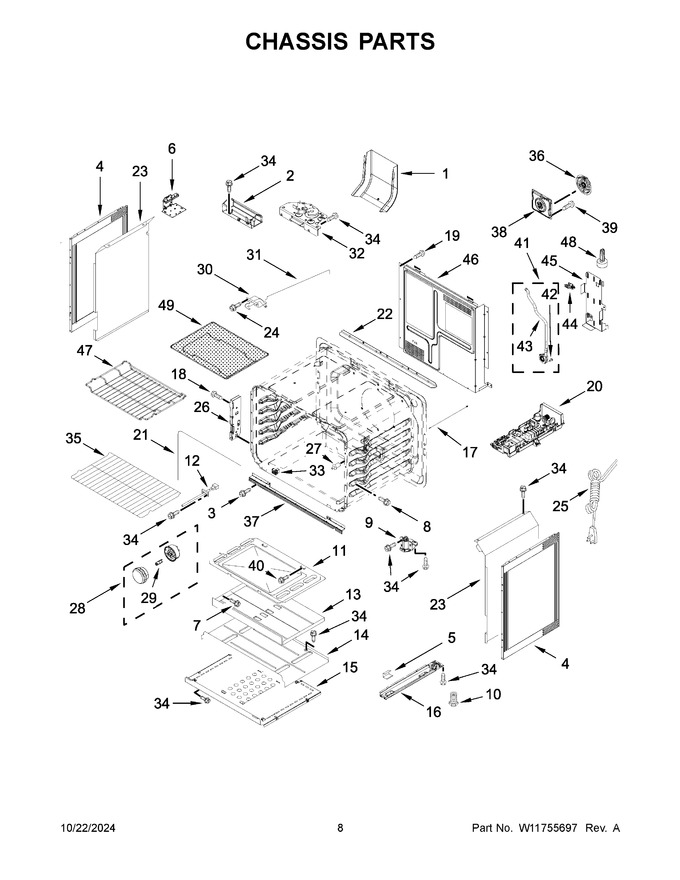

Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Manifold Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11730239		Box, Flue   (Replaces: W11366110)		Appelez-nous	-
2	W11730237		Shield, Flue   (Replaces: W11279866)		Appelez-nous	-
3	WPW10067840		Screw   (Replaces: W10067840)				$ 8.30
4	W11730303		Panel, Side (black)   (Replaces: W11445467)			Immediately	$ 178.50
5	W10137382		Clip, Panel			Immediately	$ 48.42
6	W11727012		Bracket, Cooktop Console   (Replaces: W11287215)		Appelez-nous	-
7	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
8	W11169708		Screw   (Replaces: 3196560)				$ 13.36
9	WPW10341186		Front Foot Assembly   (Replaces: W10341186)			Immediately	$ 32.59
10	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 8.24
11	W11730226		Bottom, Oven   (Replaces: W11602073)				$ 231.05
12	W11730224		Sensor   (Replaces: W11633068)			Immediately	$ 48.92
13	8053967		Baffle, Burner Oven				$ 315.96
14	8053969		Shield, Heat				$ 113.04
15	W11730232		Shield, Lower   (Replaces: W11640074)		Appelez-nous	-
16	W11818353		Base Rail Assembly (left)   (Replaces: W10390008)				$ 62.66
17	9757239		Rod, Door Switch				$ 96.37
18	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
19	W11684512		Screw   (Replaces: 3400080)				$ 14.81
20	W11745759		Control, Electronic   (Replaces: W11734475)				$ 369.55
21	W11542153		Seal, Door   (Replaces: W11491751)			Immediately	$ 50.20
22	W10435470		Brace, Main Back				$ 81.74
23	W11379353		Retainer, Insulation (left)		Appelez-nous	-
24	W11169708		Screw   (Replaces: 3196560)				$ 13.36
25	W11730265		Cord, Power   (Replaces: W11661976)				$ 84.65
26	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.32
27	W11620712		Switch, Door   (Replaces: W11511828)			Immediately	$ 46.31
28	W11707255		Light Assembly   (Replaces: W11634772)			Immediately	$ 40.75
29	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 27.71
30	WP9761013		Front Door Latch Assembly   (Replaces: 9761013)				$ 256.36
31	W10078370		Rod, Push Latch				$ 95.24
32	WPW10107820		Rear Door Latch Assembly   (Replaces: W10107820)				$ 309.55
33	W10807823		Glide, Drawer Front   (Replaces: W10674705)			Immediately	$ 19.30
34	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
35	W11520287		Rack, Oven   (Replaces: W11173792)			Immediately	$ 57.99
36	W11730229		Fan, Convection   (Replaces: W11644425)		Appelez-nous	-
37	W11464547		Bracket, Front Frame				$ 45.89
38	W11730217		Cover, Conv Fan   (Replaces: W11373155)		Appelez-nous	-
39	W10516115		Screw				$ 14.52
40	W10379120		Screw		Appelez-nous	-
41	W11625914		Ventilation Assembly, Console		Appelez-nous	-
42	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
43	W11729918		Blower, Tube   (Replaces: W11411632)				$ 151.42
44	W11729920		Tube, Clamp   (Replaces: W11642475)				$ 34.58
45	W11729919		Bracket, Acu   (Replaces: W11365827)				$ 77.10
46	W11727015		Cover, Side Fan   (Replaces: W11596199)		Appelez-nous	-
47	W11730235		Rack, Oven (gull-wing)   (Replaces: W11607819)			Immediately	$ 108.09
48	8016P02260		Glide, Main Top		Appelez-nous	-
49	W11692811		Basket, Airfry   (Replaces: W11661815)			Immediately	$ 117.69
16A	W11818353		Base Rail Assembly (right)   (Replaces: W10390007)				$ 62.66
23A	W11379943		Retainer, Insulation (right)		Appelez-nous	-
NI	W11727016		Insulation, Back   (Replaces: W11407376)		Appelez-nous	-
NI	W11684776		Insulation, Wrap   (Replaces: W10818362)		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
