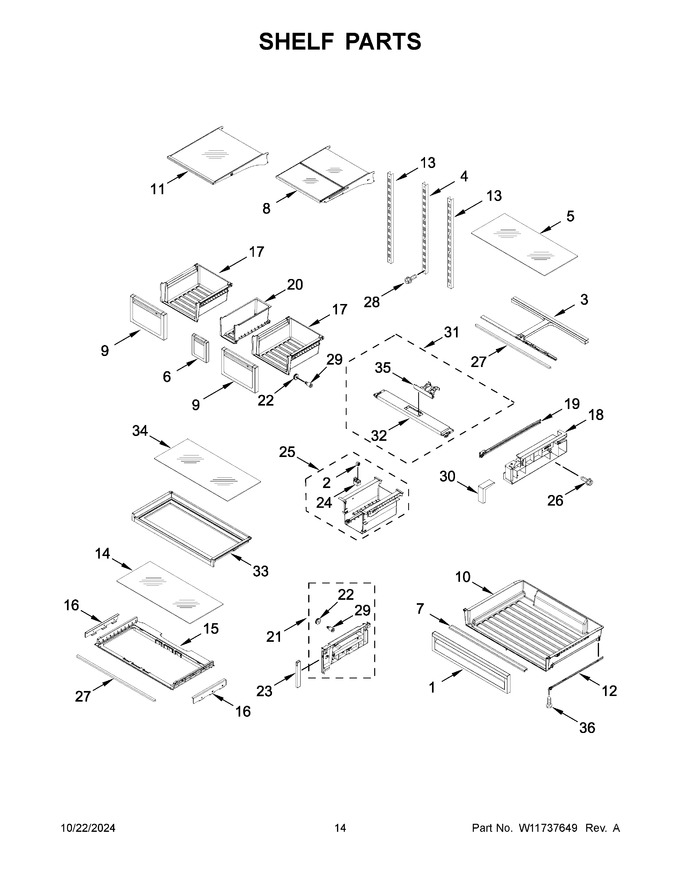

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10510417		Front, Pantry   (Replaces: W10510417)				$ 105.60
2	W10248789		Roller, Center				$ 19.37
3	W11224265		Support, Pantry   (Replaces: W11124673)				$ 158.57
4	WPW10248516		Ladder, Center   (Replaces: W10248516)				$ 35.89
5	W11092486		Glass, Pantry   (Replaces: W10893769)				$ 251.93
6	W11218695		Assembly, Crisper Front   (Replaces: W10423520)				$ 325.33
7	W10398002		Handle, Pantry				$ 119.70
8	WPW10709175		Assembly, Tuck Shelf   (Replaces: W10709175)				$ 327.75
9	WPW10688114		Assembly, Crisper Front   (Replaces: W10688114)			Immediately	$ 176.39
10	WPW10654844		Pan, Pantry   (Replaces: W10498901)			Immediately	$ 130.40
11	WPW10709163		Assembly, Shelf   (Replaces: W10709163)				$ 363.26
12	W10508330		Runner, Roller (left Hand)		Appelez-nous	-
13	W11690684		Ladder, Side   (Replaces: W10372170)				$ 50.62
14	W11092501		Glass, Crisper   (Replaces: W10893768)				$ 244.50
15	W11133636		Cover, Crisper		Appelez-nous	-
16	W11133647		Rail, Side (left Hand)				$ 139.56
17	W10850377		Pan, Crisper   (Replaces: W10387757)			Immediately	$ 137.11
18	WPW10498906		Sideplate, Pantry (left Hand)   (Replaces: W10498906)				$ 132.04
19	W10508327		Slide, Pantry (left Hand)				$ 301.07
20	WPW10387778		Pan, Crisper   (Replaces: W10387778)				$ 127.48
21	W11763411		Sideplate, Crisper (left Hand)   (Replaces: W11315531)				$ 64.80
22	WPW10248544		Roller, Guide   (Replaces: W10248544)				$ 8.09
23	W10467415		Plate, Crisper Front				$ 72.29
24	W10530314		Housing, Roller				$ 11.36
25	W10662015		Assembly, Center Crisper Support				$ 87.71
26	W10185612		Screw				$ 7.08
27	WPW10236512		Support, Front   (Replaces: W10236512)				$ 134.05
28	W10423560		Screw		Appelez-nous	-
29	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54
30	W10467416		Plate, Pantry Front				$ 38.26
31	W10554293		Assembly, Pantry Front Cover				$ 188.95
32	WPW10554285		Cover, Pantry Top   (Replaces: W10554285)				$ 170.63
33	W11549362		Assembly, Platter Shelf   (Replaces: W11409105)				$ 210.85
34	W11224589		Glass, Platter   (Replaces: W11133665)		Appelez-nous	-
35	W10512596		Knob, Pantry Temperature Control		Appelez-nous	-
36	WP8281136		Screw   (Replaces: 8281136)				$ 7.30
12A	W10508328		Runner, Roller (right Hand)		Appelez-nous	-
16A	W11133648		Rail, Side (right Hand)				$ 139.56
18A	W11225684		Sideplate, Pantry (right Hand)   (Replaces: W11124810)				$ 98.97
19A	W10508326		Slide, Pantry (right Hand)				$ 311.48
21A	W11759114		Sideplate, Crisper (right Hand)   (Replaces: W11315533)				$ 64.80
