| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W11244434 |
 |
Ice Container (complete) (Replaces: W11196076) |
|
|
Immediately |
$ 368.14 |
|
|
| 2 |
W11652042 |
|
Assembly, Latch (Replaces: W10693542) |
|
|
Immediately |
$ 24.98 |
|
|
| 3 |
WP2220458 |
 |
Coupling, Bottom (Replaces: 2220458) |
|
|
Immediately |
$ 41.04 |
|
|
| 4 |
WPW10258544 |
 |
Shaft, Drive (Replaces: W10258544) |
|
|
Immediately |
$ 26.52 |
|
|
| 5 |
W10852956 |
 |
Spring, Coupling (Replaces: W10754509) |
|
|
Immediately |
$ 21.40 |
|
|
| 6 |
WPW10293212 |
 |
Assembly, Mounting Plate (Replaces: W10293212) |
|
|
|
$ 128.67 |
|
|
| 7 |
WP2198628 |
 |
Seal (Replaces: 2198628) |
|
|
Immediately |
$ 12.57 |
|
|
| 8 |
WPW10291905 |
 |
Gasket (Replaces: W10291905) |
|
|
|
$ 27.68 |
|
|
| 9 |
WP2212370 |
 |
Washer (Replaces: 2212370) |
|
|
|
$ 25.35 |
|
|
| 10 |
W11202789 |
 |
Motor, Dispenser (Replaces: W11117906) |
|
|
Immediately |
$ 235.12 |
|
|
| 11 |
W11566889 |
|
Cover, Container (Replaces: W11466857) |
|
|
|
$ 116.68 |
|
|
| 12 |
W11341247 |
|
Plate, Switch |
|
|
Immediately |
$ 28.73 |
|
|
| 13 |
W11469740 |
|
Switch, Energy Saver (Replaces: W11311953) |
|
|
Immediately |
$ 38.34 |
|
|
| 14 |
W11123943 |
 |
Switch, Rocker Arm (Replaces: W11032814) |
|
|
|
$ 36.66 |
|
|
| 15 |
WP2305382 |
 |
Boot, Rubber (Replaces: 2305382) |
|
|
|
$ 10.71 |
|
|
| 16 |
W11684619 |
|
Assembly, Wire Jumper Switch (Replaces: W10646076) |
|
|
|
$ 20.90 |
|
|
| 17 |
W11708427 |
|
Assembly, Motor Box (Replaces: W10771442) |
|
|
|
$ 69.14 |
|
|
| 18 |
W10166854 |
|
Gasket |
|
|
|
$ 26.69 |
|
|
| 19 |
WPW10400435 |
|
Gasket, Foam (Replaces: W10400435) |
|
|
|
$ 25.84 |
|
|
| 20 |
W10873791 |
 |
Assembly, Ice Maker (Replaces: W11646278) |
|
|
Immediately |
$ 124.47 |
|
|

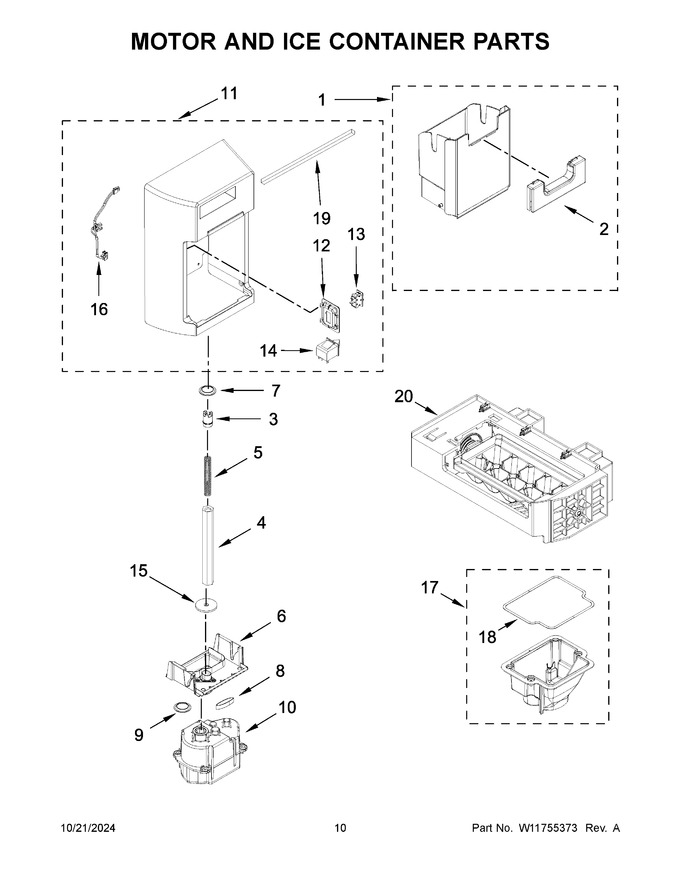

View Diagram in Separate Window
