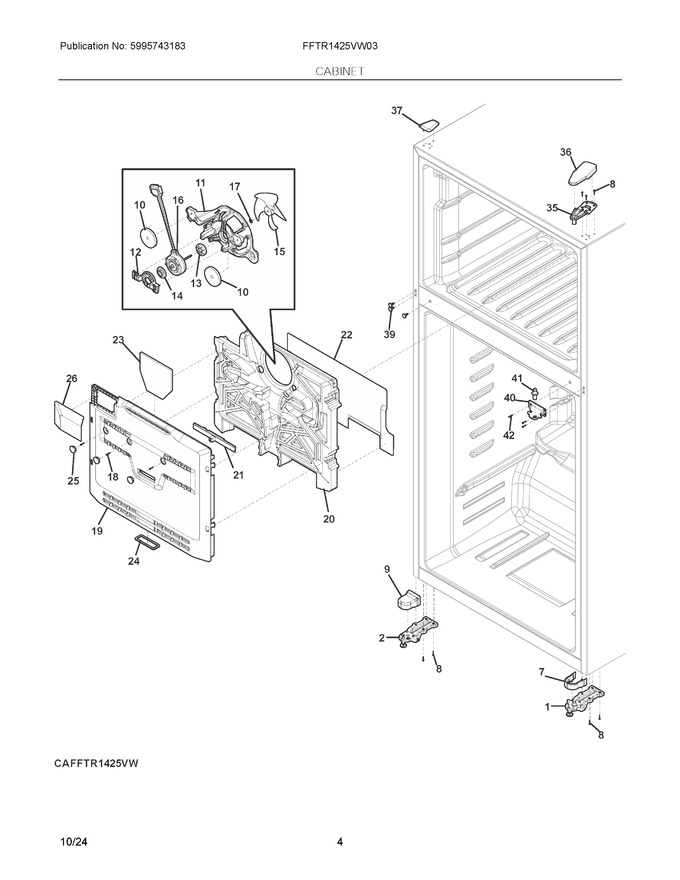

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304520629 | Bracket Assembly, Bottom Hinge, Rh, Stop/foot/rollr |
|
Immediately | $ 74.41 | ||||
| 2 | 5304520630 | Bracket Assembly, Bottom, Lh, W/foot-roller |
|
Immediately | $ 77.30 | ||||
| 7 | 5304529611 | Cover, Bracket, White, Bottom Hinge |
|
$ 9.93 | |||||
| 8 | 811949401 | Screw, Trilob, M5 X 16 |
|
Immediately | $ 5.90 | ||||
| 9 | 5304520467 | Cover, Anti-tip, White |
|
$ 11.25 | |||||
| 10 | 5304520468 | Grommet, Fan Shroud, Foam |
|
- | |||||
| 11 | 811974401 | Shroud, Evaporator Fan |
|
Immediately | $ 21.06 | ||||
| 12 | 5304519177 | Clip, Retainer |
|
$ 9.27 | |||||
| 13 | 5304520469 | Grommet, Evaporator Fan |
|
$ 11.80 | |||||
| 14 | 5304519178 | Grommet, Fan Mounting |
|
Immediately | $ 8.43 | ||||
| 15 | 811699604 | Blade, Evaporator Fan (Replaces: 811699602) |
|
Immediately | $ 4.66 | ||||
| 16 | 809069207 | Motor, Fan, Frz Evaporator |
|
Immediately | $ 165.31 | ||||
| 17 | 5304519176 | Washer, Slinger, Nylon |
|
$ 3.37 | |||||
| 18 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.37 | |||||
| 19 | 5304536636 | Cover, Evaporator (Replaces: 5304520471) |
|
$ 22.60 | |||||
| 20 | 5304535848 | Duct, Evaporator, Rear (Replaces: 5304520472) |
|
$ 14.75 | |||||
| 21 | 5304520473 | Slide, Air Baffle, Blue, Freezer |
|
- | |||||
| 22 | 5304520474 | Tape, Air Duct, Aluminum Foil, Rear |
|
Immediately | $ 32.87 | ||||
| 23 | 807305102 | Insulation, Tape, Evap Cover |
|
- | |||||
| 24 | 811950002 | Seal, Duct, Foam, Lower |
|
- | |||||
| 25 | 811971601 | Cover, Screw Hole |
|
- | |||||
| 26 | 5304520475 | Cover, Electrical, & Water Inlet, Optional Im |
|
$ 12.41 | |||||
| 35 | 5304520476 | Hinge, Door, Upper |
|
Immediately | $ 41.96 | ||||
| 36 | 5304520477 | Cover, Upper Hinge, White |
|
- | |||||
| 37 | 811996402 | Cover, Hinge Holes, White, Cabinet Top |
|
$ 10.45 | |||||
| 39 | 808432202 | Cover, Screw Hole, White, Mullion |
|
- | |||||
| 40 | 140072822053 | Hinge, Door, Zinc Plated, Center (Replaces: 5304522614) |
|
Immediately | $ 26.24 | ||||
| 41 | 5304520479 | Pin, Hinge, Center |
|
$ 15.17 | |||||
| 42 | 5304520480 | Screw, Trilob, M5 X 14 |
|
$ 3.37 | |||||
| NIA | 5304520470 | Seal, Motor Connector, 4 Pin |
|
$ 15.07 |
