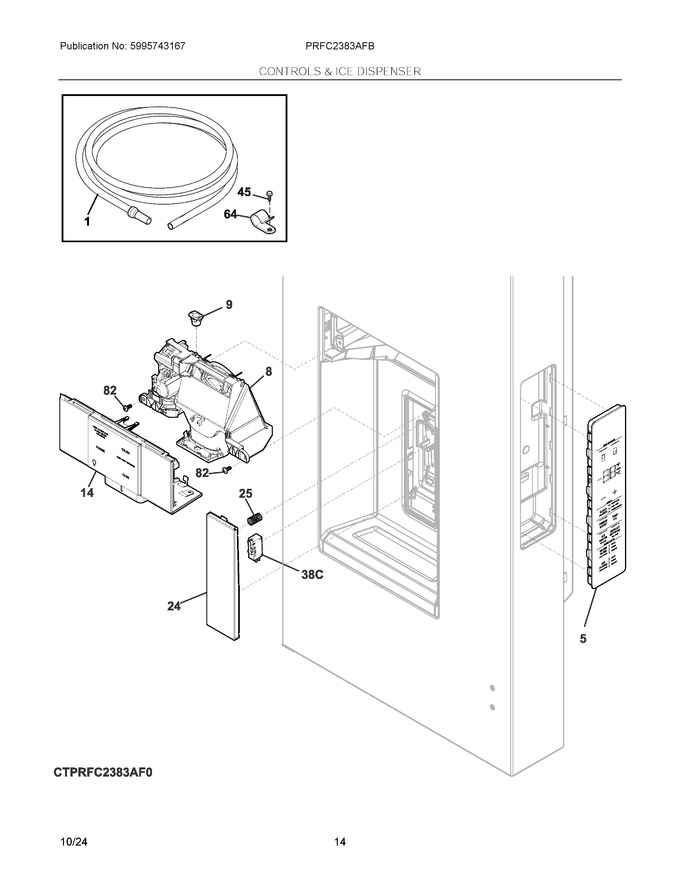

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976448 | Hose-water Door, Bm, Cd, 1 # |
|
Immediately | $ 20.80 | ||||
| 5 | 5304523018 | Control Assembly, User Interface, Door Side |
|
Immediately | $ 329.69 | ||||
| 8 | 5304533221 | S/a Pur-i&w Module Tomcat |
|
Immediately | $ 187.75 | ||||
| 9 | 5304531019 | Guide-water Tube, 9 |
|
$ 15.05 | |||||
| 14 | 5304532649 | Display Assembly, Use Interface, W/pc Board |
|
Immediately | $ 619.50 | ||||
| 24 | 5304535019 | Assy Lever Dispenser Pro |
|
- | |||||
| 25 | 5304519199 | Spring, Paddle Assembly |
|
Immediately | $ 6.79 | ||||
| 45 | 5304453923 | Screw, Hex Hd Wshr, #8-32 X 1/2 |
|
- | |||||
| 64 | 240396801 | Clamp, Tube/wiring, 1/2", Nylon, Black/natural |
|
$ 21.26 | |||||
| 82 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 38C | 241870104 | Switch, Disp Paddle |
|
Immediately | $ 22.59 | ||||
| NI | 241510904 | Harness-dispenser, Grounding |
|
$ 67.73 | |||||
| NIA | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NIB | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 11.81 |
