02 - Cooktop, Burner And Grate Parts

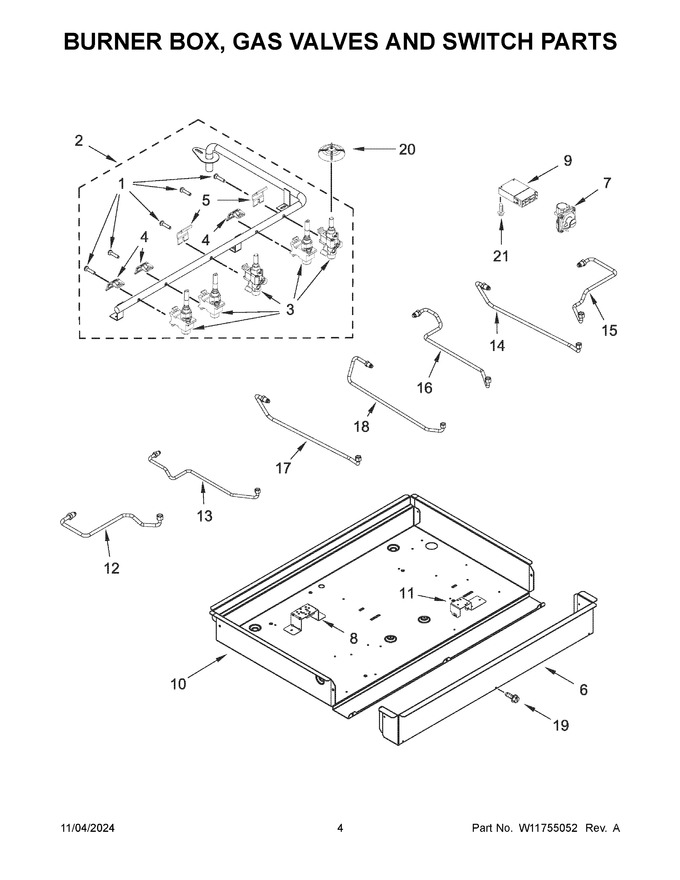

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw   (Replaces: W10743274)				$ 11.84
2	W10682074		Assembly, Manifold				$ 442.73
3	W11702872		Valve, Single (left Front)   (Replaces: W11629615)				$ 31.38
4	8287055		Bracket, Single Valve				$ 76.46
5	8287056		Bracket, Dual Valve		Appelez-nous	-
6	W10705474		Panel, Front		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 197.04
8	W10594429		Bracket, Orifice Holder				$ 23.33
9	WPW10475150		Module, Spark   (Replaces: W10475150)			Immediately	$ 243.93
10	W10710916		Box, Burner		Appelez-nous	-
11	W10545802		Bracket, Dual Burner				$ 22.50
12	W10545796		Tubing, Gas Burner (left Front)				$ 82.66
13	W10545797		Tubing, Gas Burner (left Rear)				$ 82.08
14	W10545843		Tubing, Gas Burner (right Front, Main)				$ 84.84
15	W10545844		Tubing, Gas Burner (right Front, Simmer)				$ 85.81
16	W10545798		Tubing, Gas Burner (right Rear)				$ 87.36
17	W10545801		Tubing, Gas Burner (center, Main)				$ 83.19
18	W10545800		Tubing, Gas Burner (center, Simmer)				$ 83.18
19	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
20	W11768651		Seal, Switch Shaft   (Replaces: W11507167)				$ 20.30
21	7101P62660		Screw		Appelez-nous	-
3A	W11702873		Valve, Single (left Rear)   (Replaces: W11629616)				$ 30.33
3B	W11703063		Valve, Single (right Rear)   (Replaces: W11629617)				$ 30.33
3C	W11706266		Valve, Dual (right Front And Center)   (Replaces: W11629618)			Immediately	$ 133.09
