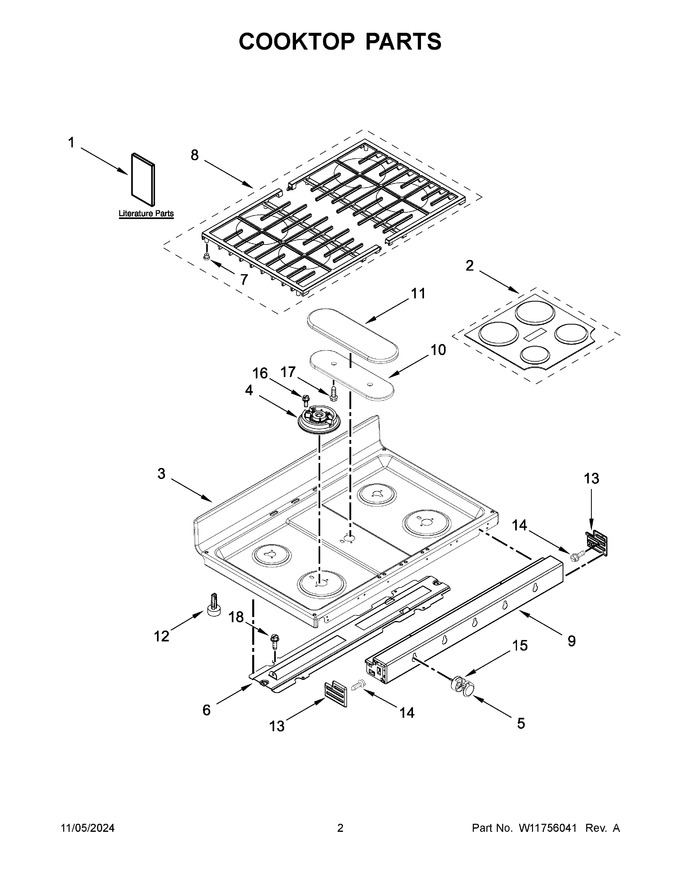

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11426601 | Owner's Manual |
|
- | |||||
| 2 | WPW10299236 | Kit, Burner Cap (black) (Replaces: W10299236) |
|
Immediately | $ 225.49 | ||||
| 3 | W10336331 | Cooktop (white) (Replaces: W10260170) |
|
$ 418.08 | |||||
| 4 | WPW10406878 | Head, Burner (17.5k) (left Front) (Replaces: W10406878) |
|
$ 107.48 | |||||
| 5 | W11030413 | Knob, Control (stainless) (Replaces: W10643306) |
|
Immediately | $ 76.20 | ||||
| 6 | W10518258 | Bracket, Cooktop Support |
|
- | |||||
| 7 | W10919249 | Bumper, Grate (Replaces: W10465081) |
|
Immediately | $ 13.18 | ||||
| 8 | W11673268 | Grate Kit (includes 2 Grates) (Replaces: W11241660) |
|
$ 365.59 | |||||
| 9 | W10708334 | Panel, Manifold (white) |
|
- | |||||
| 10 | WPW10333445 | Base, Burner (fish Burner Only) (Replaces: W10333445) |
|
$ 110.05 | |||||
| 11 | WPW10171140 | Kit, Burner Cap (fish Burner Only) (black) (Replaces: W10171140) |
|
$ 168.47 | |||||
| 12 | 8016P02260 | Glide, Main Top |
|
- | |||||
| 13 | W10719580 | Endcap, Manifold (white (left)) |
|
- | |||||
| 14 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 15 | W10814133 | Bezel (stainless (kit Of 5)) (Replaces: W10785119) |
|
Immediately | $ 113.38 | ||||
| 16 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 8.56 | ||||
| 17 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 18 | 7101P37660 | Screw |
|
- | |||||
| 13A | W10719579 | Endcap, Manifold (white (right)) |
|
- | |||||
| 1A | W11430266 | Quick Start Guide |
|
- | |||||
| 1B | W11565449 | Tech Sheet |
|
- | |||||
| 4A | WPW10406243 | Head, Burner (6k) (left Rear And Right Rear) (Replaces: W10406243) |
|
Immediately | $ 39.08 | ||||
| 4B | WPW10406797 | Head, Burner (12.5k) (right Front) (Replaces: W10406797) |
|
$ 92.91 | |||||
| 4C | WPW10336094 | Head, Burner (center) (Replaces: W10336094) |
|
$ 227.81 | |||||
| NI | 7101P02760 | Screw, Ground |
|
- | |||||
| NI | W11448060 | Harness, Main |
|
- | |||||
| NI | W11172428 | Harness, Eol (dofsr) |
|
- | |||||
| NI | W11172531 | Harness, Sensor & Locks |
|
$ 119.20 | |||||
| NI | W10408058 | Harness, Spark |
|
$ 77.20 | |||||
| NI | 8019P02660 | Clip, Wire-wrap Nylon |
|
- | |||||
| NI | 7109P03660 | Washer |
|
- | |||||
| NI | 7111P01760 | Clamp, Wire |
|
- | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
