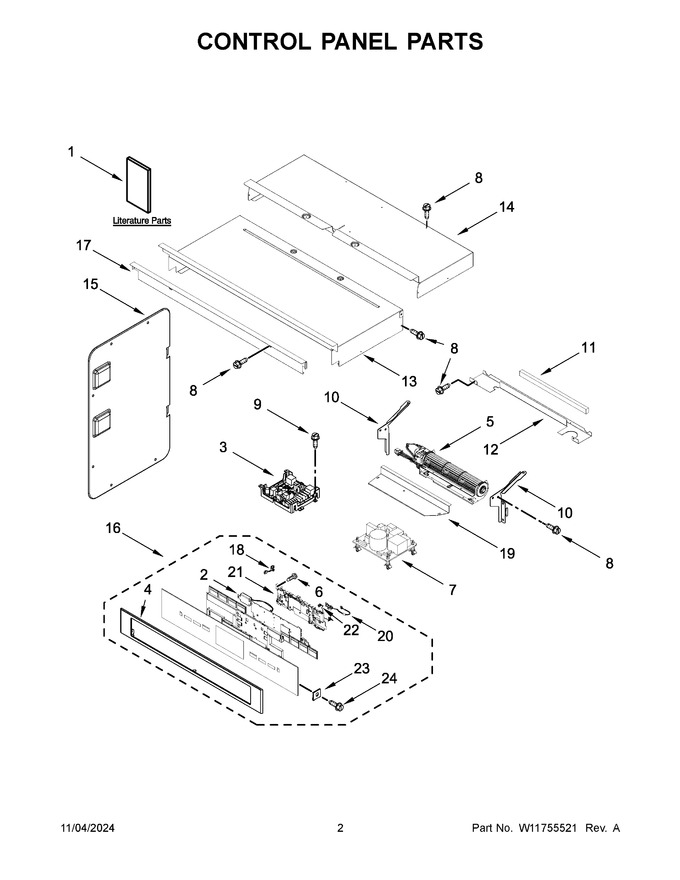

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11499878		Owner's Manual		Appelez-nous	-
2	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 77.08
3	W11448961		Appliance Manager, Copernicus   (Replaces: W11250487)			Immediately	$ 276.57
4	W11197498		Skin, Control Panel (stainless)			Immediately	$ 356.99
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 369.76
6	W10489172		Screw				$ 11.41
7	WPW10260060		Board, Power Supply   (Replaces: W10260060)			Immediately	$ 302.24
8	7101P42660		Screw		Appelez-nous	-
9	7101P43460		Screw		Appelez-nous	-
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 7.75
12	W11166802		Divider, Chassis Back		Appelez-nous	-
13	W10318158		Chassis, Cover Top Front 30 In		Appelez-nous	-
14	W10588732		Cover, Top Back 30 In Chassis				$ 215.10
15	W10655467		Chassis, Combo Side				$ 79.07
16	W11598175		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W11195953)				$ 1,818.92
17	W10444127		Cover, 30 In Compliment				$ 124.50
18	W10566973		Harness, Keypad (left To Center)				$ 78.28
19	W10681157		Cover, Combo Blower		Appelez-nous	-
20	W10575307		Jumper Harness, Power Supply			Immediately	$ 165.56
21	W10668510		Housing				$ 100.16
22	W10524350		Harness, Keypad (right To Center)				$ 74.49
23	WP4450118		Nut   (Replaces: 4450118)				$ 7.95
24	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.02
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11423731		Literature Parts (quick Start Guide)		Appelez-nous	-
1B	W11399190		Tech Sheet		Appelez-nous	-
NI	W11578580		Jumper Harness, Communication   (Replaces: W11539527)				$ 28.80
NI	W11539494		Harness, Inverter				$ 41.32
NI	W11602626		Bag, Hardware   (Replaces: W11394923)				$ 22.35
NI	W11659367		Harness, Main		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11546965		Harness, Fan And Turntable   (Replaces: W11454022)				$ 75.12
NI	4448664		Clamp, Conduit				$ 20.39
NI	W11537624		Antenna   (Replaces: W11409842)				$ 101.01
NI	4450800		Screw, Grounding				$ 12.83
NI	16515		Clip, Harness   (Replaces: 313438)				$ 19.55
NI	W11555167		Harness, Communication				$ 66.61
NI	W11226264		Strap, Ground		Appelez-nous	-
NI	W11249917		Harness, Signal			Immediately	$ 171.51
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 58.86
