Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11735112 Assembly, Control Panel (stainless)   (Replaces: W11301922) Special Order $ 1,732.13

2 W11123146 Speaker Assembly   (Replaces: W10568405) Special Order $ 80.93

3 W10668510 Housing Special Order $ 105.17

4 W10566973 Harness, Keypad (left To Center) Special Order $ 82.19

5 W10489172 Screw Special Order $ 11.98

6 W10524350 Harness, Keypad (right To Center) Special Order $ 78.21

7 W10575307 Jumper Harness, Power Supply In-Stock Immediately $ 173.84

8 W11197498 Skin, Control Panel (stainless) In-Stock Immediately $ 374.84

9 W10444127 Cover, 30 In Compliment Special Order $ 130.73

10 WP4450118 Nut   (Replaces: 4450118) Special Order $ 8.78

11 W11602625 Screw (black)   (Replaces: W11339492) Special Order $ 14.72


    View Diagram in Separate Window     Print Icon   Print Part List

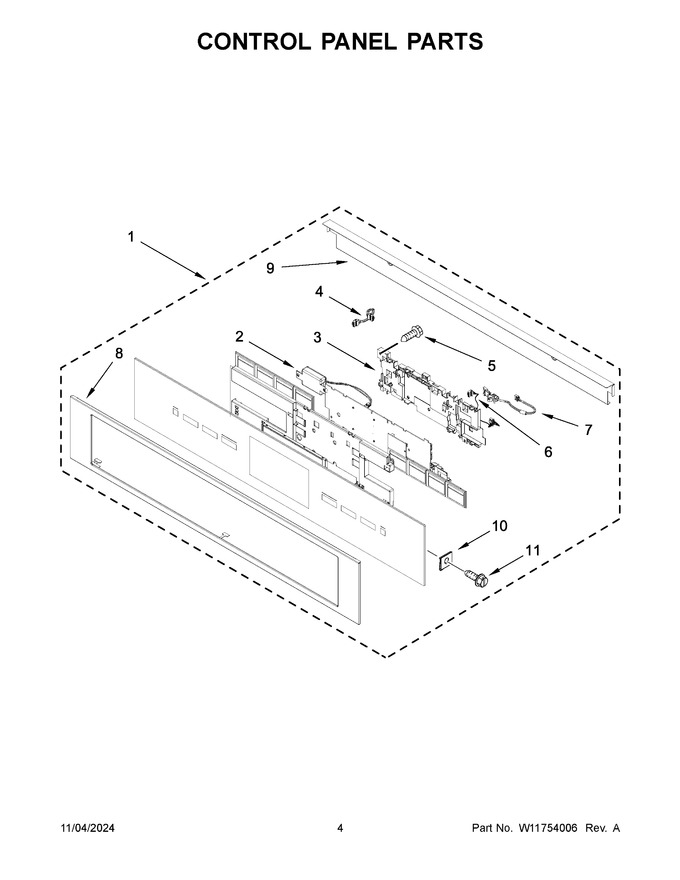

Diagram for JMC2430LL01
