SELECT A DIAGRAM
New Model Search:

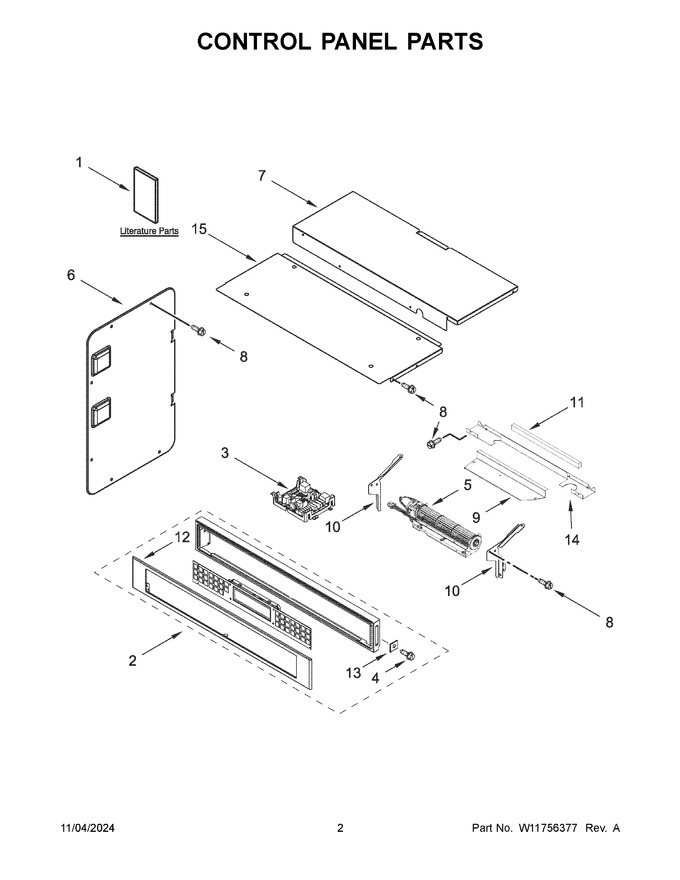

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11655510 | Owner's Manual |
|
- | |||||
| 2 | W11665775 | Control Panel Assembly (includes Overlay) (black Stainless) (Replaces: W11640547) |
|
$ 1,061.19 | |||||
| 3 | W11448962 | Appliance Manager, Copernicus (Replaces: W11249218) |
|
Immediately | $ 325.47 | ||||
| 4 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 14.72 | |||||
| 5 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 388.25 | ||||
| 6 | W10655467 | Chassis, Combo Side |
|
$ 83.02 | |||||
| 7 | W10588732 | Cover, Top Back 30 In Chassis |
|
$ 225.86 | |||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | W10681157 | Cover, Combo Blower |
|
- | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W10776407 | Skin, Control Panel (black Stainless) |
|
$ 285.61 | |||||
| 13 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 8.78 | |||||
| 14 | W11166802 | Divider, Chassis Back |
|
- | |||||
| 15 | W10318158 | Chassis, Cover Top Front 30 In |
|
- | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11618058 | Quick Start Guide |
|
- | |||||
| 1B | W11382178 | Tech Manual |
|
- | |||||
| 1C | W11340885 | Wiring Diagram |
|
- | |||||
| NI | W11226264 | Strap, Ground |
|
- | |||||
| NI | W11229448 | Harness, Communication |
|
Immediately | $ 235.39 | ||||
| NI | W11256627 | Harness, Signal |
|
Immediately | $ 132.03 | ||||
| NI | W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 61.80 | |||||
| NI | W11602626 | Bag, Hardware (Replaces: W11394923) |
|
$ 23.47 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | W11731943 | Harness, Main (Replaces: W11659368) |
|
Immediately | $ 334.06 | ||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 7.55 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
