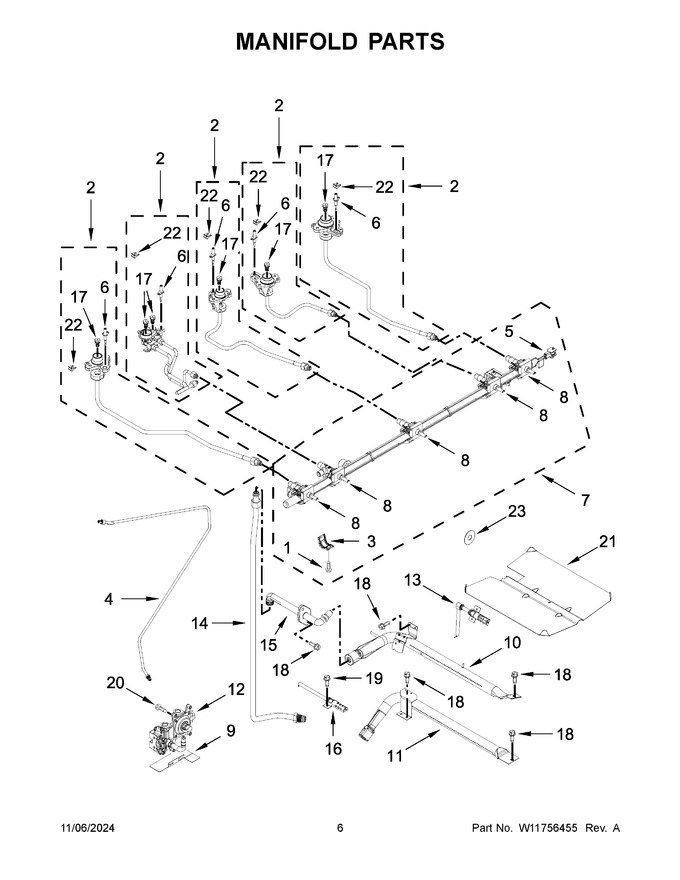

04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11577790		Screw		Appelez-nous	-
2	W11186511		Assembly, Orifice (19k) (left Front) (includes Orifice)			Immediately	$ 120.00
3	W10949105		Bracket, Saddle Valve				$ 22.75
4	W10432252		Tube, Gas Supply				$ 82.71
5	W11596366		Harness, Spark Switch				$ 101.77
6	W11675301		Electrode, Burner (left Front)   (Replaces: W10898387)			Immediately	$ 35.31
7	W11602206		Manifold Assembly			Immediately	$ 319.10
8	W11593170		Valve, Gas (dual) (left Front)				$ 103.41
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11676566		Burner, Broiler   (Replaces: W10439242)				$ 94.98
11	W10764654		Burner, Bake   (Replaces: W10680035)			Immediately	$ 91.65
12	W10861656		Valve, Regulator   (Replaces: W10554066)			Immediately	$ 310.11
13	WPW10324262		Igniter, Bake   (Replaces: W10324262)			Immediately	$ 103.98
14	W10306050		Tube, Broil Supply (broiler Fitting To Valve)				$ 189.82
15	W10583216		Fitting, Broil Burner				$ 95.85
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 85.81
17	W10702888		Orifice (18k) (left Front) Orifice, Not Serviced				$ 52.50
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
19	W11684507		Screw   (Replaces: 3196385)				$ 14.27
20	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
21	3601P33645		Baffle, Broil Burner		Appelez-nous	-
22	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 12.65
23	W11768651		Seal, Switch Shaft   (Replaces: W11507167)				$ 20.30
17A	W11677633		Orifice (5k) (left Rear) Orifice, Not Serviced   (Replaces: W10849719)				$ 99.15
17B	W10849717		Orifice (15k) (right Front) Orifice, Not Serviced			Immediately	$ 93.46
17C	W10849714		Orifice (9.5k) (right Rear) Orifice, Not Serviced				$ 93.46
2A	W11186508		Orifice, Assembly (left Rear) (includes Orifice)				$ 77.55
2B	W11186524		Assembly, Orifice (15k) (right Front) (includes Orifice)				$ 82.16
2C	W11186520		Assembly, Orifice (9.2k) (right Rear) (includes Orifice)				$ 82.49
2D	W11186517		Assembly, Orifice (8k) (center) (includes Orifice)				$ 81.78
6A	W11666003		Electrode (left Rear)   (Replaces: W10669525)				$ 48.41
6B	W11643126		Electrode, Burner (right Front And Center)   (Replaces: W10669524)			Immediately	$ 38.01
6C	W11661897		Electrode, Burner (right Rear)   (Replaces: W10669523)				$ 48.36
8A	W11620676		Valve, Gas (left Rear)   (Replaces: W11511819)				$ 70.32
8B	W11620675		Valve, Gas (right Front)   (Replaces: W11511818)			Immediately	$ 70.32
8C	W11620677		Valve, Gas (right Rear And Center)   (Replaces: W11511824)				$ 70.32
NI	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 7.30
NI	W11087486		Lp Conversion Kit (bake And Broil)   (Replaces: W10566535)			Immediately	$ 117.95
NI	W11436985		Lp Conversion Kit (burners)   (Replaces: W11397194)			Immediately	$ 46.55
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
