SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Internal Microwave Parts


08 - Top Venting Parts


09 - Microwave Door Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

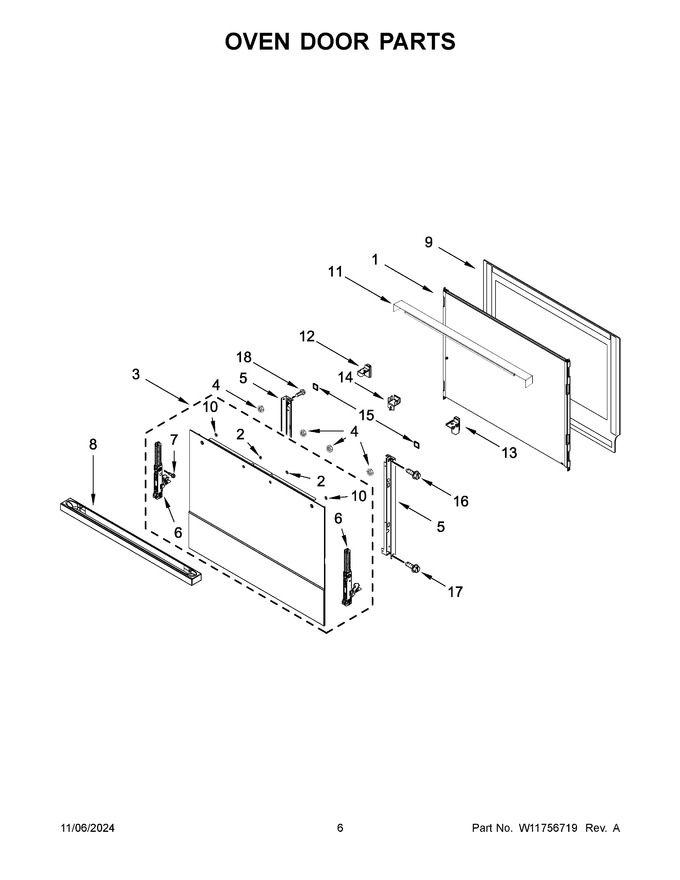

1	ARIC3DFFAB98105D2137AD531C9C75F3956		Air Divider Assembly		Appelez-nous	-
2	W11132942		Spacer, Handle				$ 16.83
3	W11602616		Door Assembly (includes Hinges) (black Glass With Stainless Trim)   (Replaces: W11304054)				$ 1,252.25
4	W11602632		Nut   (Replaces: W11317741)		Appelez-nous	-
5	W11598126		Rail, Door (left)   (Replaces: W11302773)				$ 43.61
6	W11394209		Hinge, Door (left)		Appelez-nous	-
7	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 8.18
8	W11411895		Assembly, Handle (stainless)				$ 1,095.35
9	W11602631		Glass Cavity Assembly   (Replaces: W11260099)				$ 593.07
10	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.81
11	W11705879		Top Vent Trim Assembly   (Replaces: W11671365)		Appelez-nous	-
12	W11598130		Bracket, Glass (left)   (Replaces: W11302803)				$ 46.95
13	W11598128		Bracket, Glass (right)   (Replaces: W11302802)				$ 46.95
14	W11598131		Bracket, Glass Reinforcement   (Replaces: W11302954)				$ 13.72
15	WPW10517428		Spacer, Vent   (Replaces: W10517428)			Immediately	$ 12.44
16	WP694091		Screw   (Replaces: 694091)				$ 7.55
17	W11617225		Screw   (Replaces: W11290045)				$ 14.77
18	W10443110		Screw			Immediately	$ 15.25
5A	W11598127		Rail, Door (right)   (Replaces: W11302780)				$ 43.61
6A	W11394210		Hinge, Door (right)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
